Datasheet - for U.2
Datasheet - for U.3
GD1406A Test report for U.2
GD1406A Test report for U.3
GD1406A-2D drawing

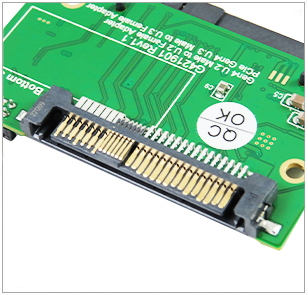

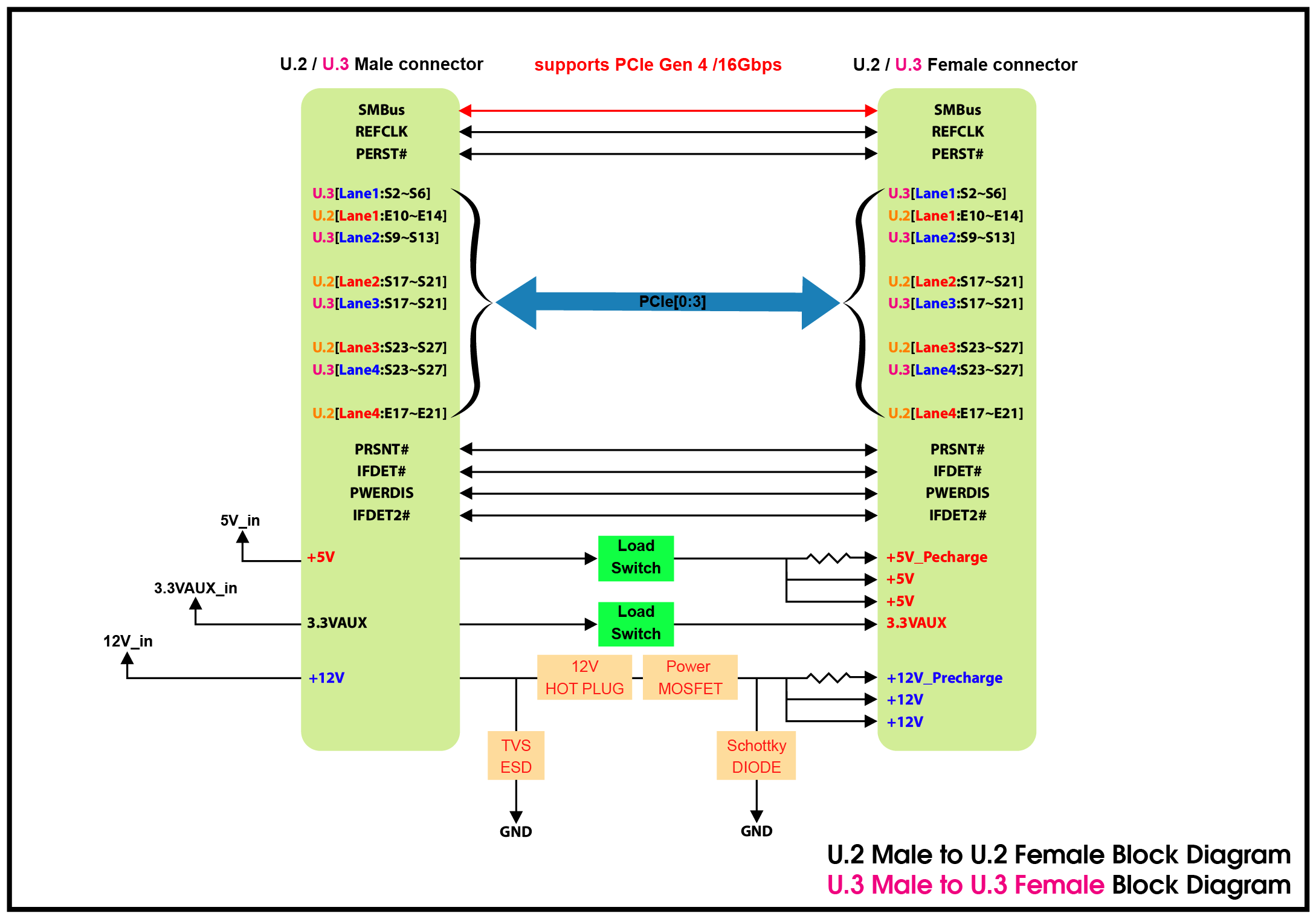

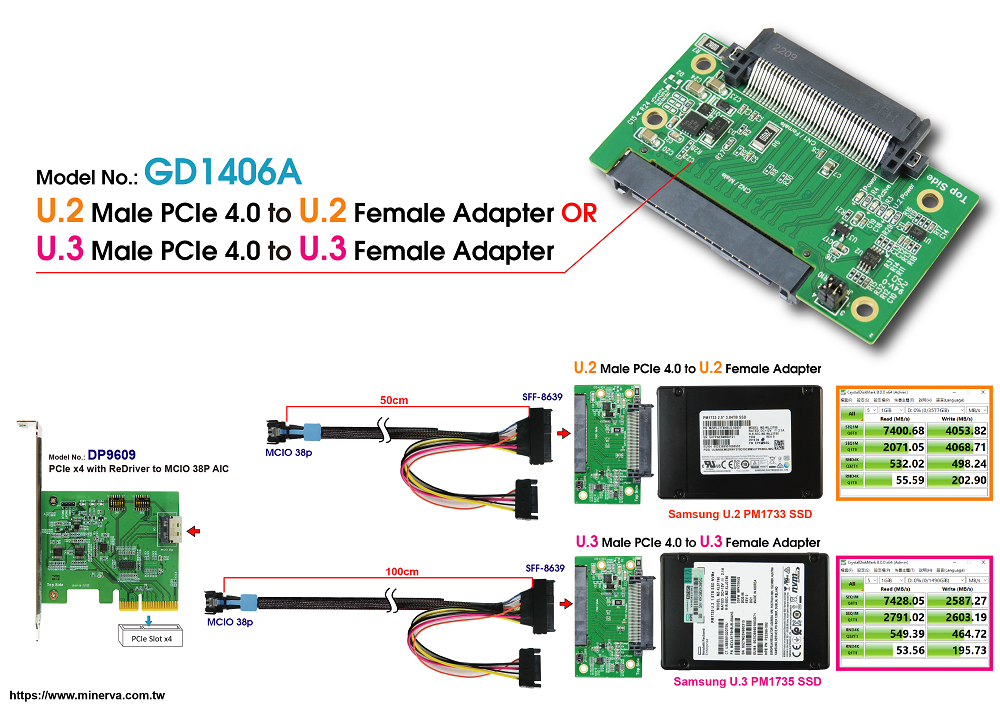

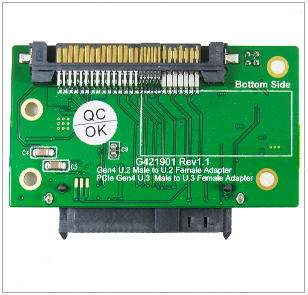

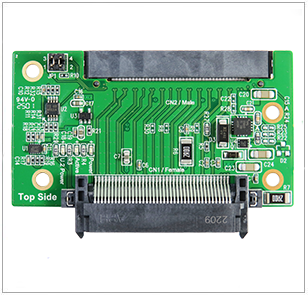

- Built-in SFF-8639 Male connector
- Built-in SFF-8639 Female connector
- Built-in power 12V Hot Plug Power protection IC, can support a maximun continuous current of 6.5A
- Built-in power 5V Load Switch with controlled turn on, can support a maximun continuous current of 5A
- Built-in power 3.3VAUX Load Switch with controlled turn on, can support a maximun continuous current of 500mA
- Supports CLKREQ#, WAKE#, PWRDIS
- Supports SMB_CLK, SMB_DATA
- LED1 Green LED on indicates U.2 SSD power ready
- LED2 Green LED on indicates SATA SSD power ready
- LED3 RED LED Blinking indicates SSD active status
