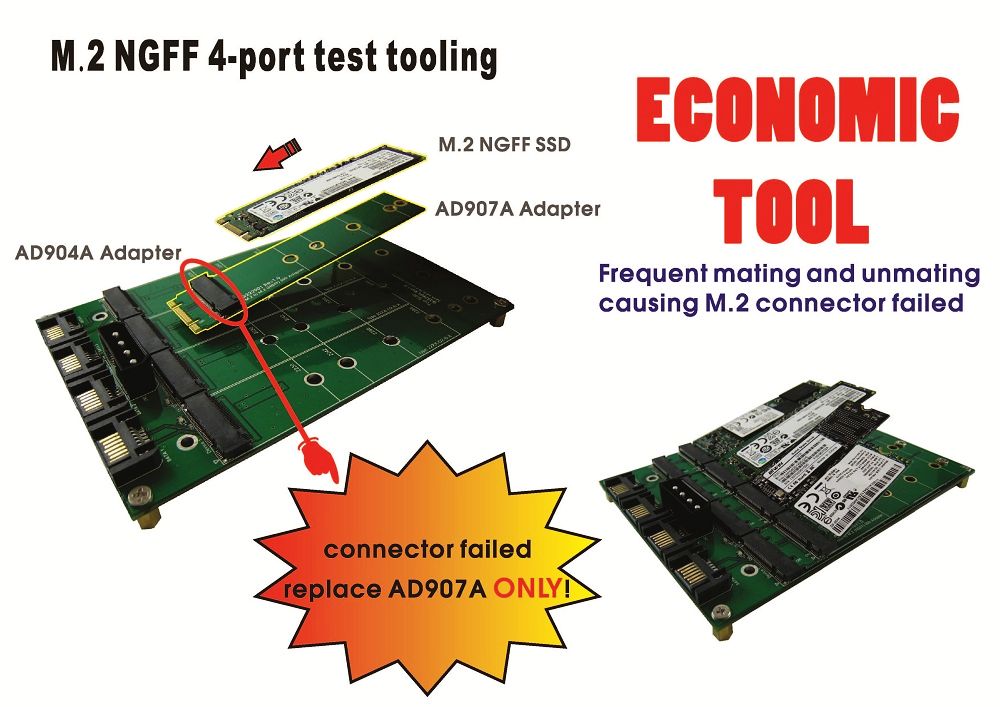

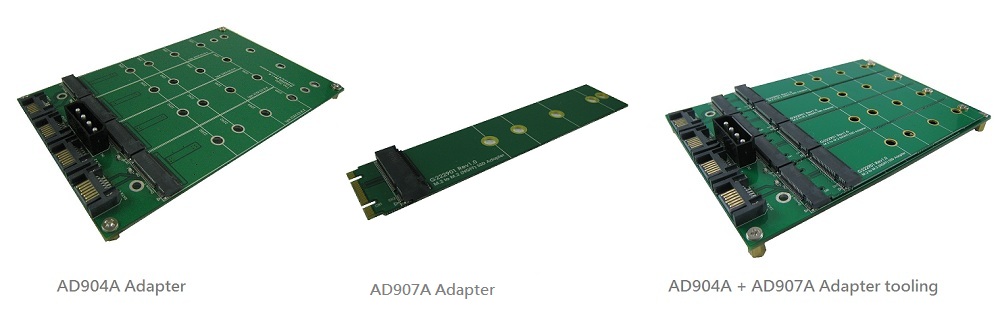

AD904E is SATA IIIx4 port to M.2(NGFF) B keyx4 port SSD adapter, providing four 7pin SATA connector on the host connection and four 67pin B key M.2 connector on the SSD storage devices connections. When assembled, it can operate in a variety of operating systems. Such as DOS, Windows 95, 98, XP, 2000, Vista, Win 7, Linux, Unix, and so on. AD904E adapter allows the installation of SSD as system disk, boot the operating system directly, without having to install any drivers, but do’t not affect performance of the SSD storage devices.

• Fully compliant with SATA revision 3.1
•  Fully compliant with PCI Express M.2 Specification Version 1.0

• PWM Power IC / 1.4MHz 5.5V synchronous buck converter
• Each port M.2 SSD input voltage: 3.3V ±5%, input max. current: 3A
• Data transfer rate: 6Gb/s bandwidth
• Suport the following form factor M.2(NGFF) SSD:

Type 2230-D2-B-M: 30mm(L) x 22mm(W)
Type 2242-D2-B-M: 42mm(L) x 22mm(W)
Type 2260-D2-B-M: 60mm(L) x 22mm(W)
Type 2280-D2-B-M: 80mm(L) x 22mm(W)

1. desk-top PC

2. Internet Appliances

3. Kiosks

4. Industrial Computers

5. Routers

6. Firewalls

• Intel 530 Series M.2 SSD & compatible Storage
• Sandisk X110 M.2 SSD & compatible Storage

• Micron M500 Series M.2 SSD & compatible Storage

Test repoort Download :

AD904A performance and burn in test report

AD904A測試報告 (繁體中文)

AD904A 测试报告 (简体中文)

Datasheet Download :

    AD904A.PDF

    AD904A (繁體中文).PDF

    AD904A (简体中文).PDF

AD904A assembly guide Download :

     AD904A assembly guide.PDF

     AD904A 安裝說明(繁體中文).PDF

     AD904A 安装说明(简体中文).PDF
