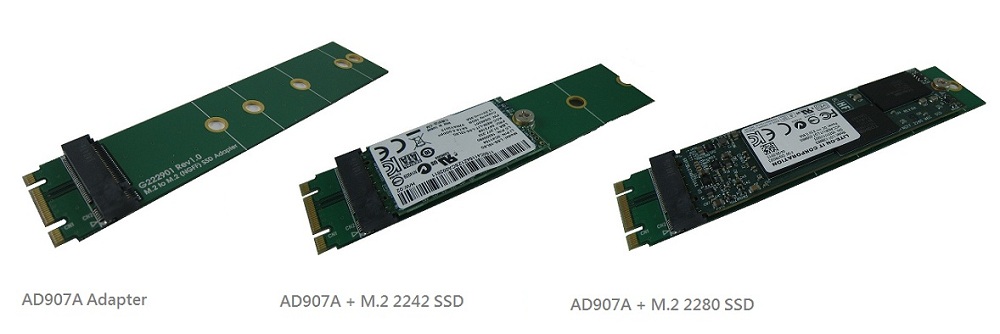

AD907A modules are M.2 (NGFF) to M.2 (NGFF) adapter. It provides M.2 daul key B+M dual notch golden finger, and one M.2 67pin B key connector. Use with AD904A adapter, can be used as the test carrier board for M.2 SSD. Due to the frequent mating test M.2 SSD, likely to cause M.2 connector failure on the host, resulting in a host maintenance difficulties. Through the use of AD907A carrier board, once a connector failure, the carrier board can be replaced immediately, without affecting the test work.
- Fully compliant with SATA revision 3.1
- Fully compliant with PCI Express M.2 Specification Version 1.0
- Support module form factor:
103mm(L) x 22mm(W) x 0.8mm(T)
Datasheet Download :
AD907A.PDF
