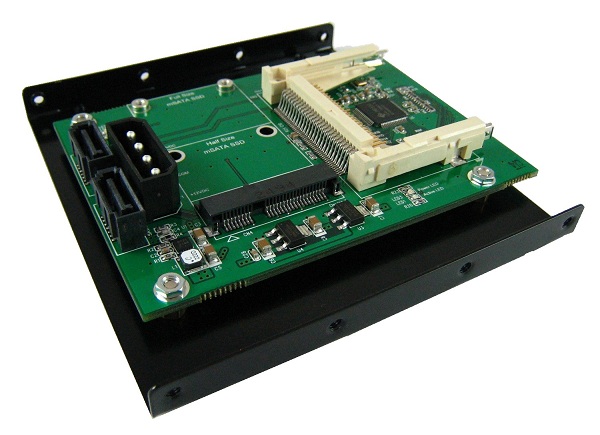

CB963Fx9









specifications



Support SATA Reversion 3.2
PCI Express Mini Card Electromechanical Spec. 1.2
Data transfer rate: 6Gb/s bandwidth
Operating temperature – Commercial (0°C to +70°C)
PWM synchronous buck converter Power IC
3A maximum output current
Short circuit protection
In-rush current suppression
Thermal shutdown protection
ESD HBM (Human Body Mode)/2KV
Compliant with CF+ and CF Card Spec. Rev. 4.1
Support ATA/ATAPI-7 specification.
ATA/ATAPI Ultra DMA Mode 0, 1, 2, 3, 4, 5.
ATA/ATAPI PIO Mode 0, 1, 2, 3, 4.





Application

Application



Application



1. desk-top PC

2. Internet Appliances

3. Kiosks

4. Industrial Computers

5. Routers

6. Firewalls

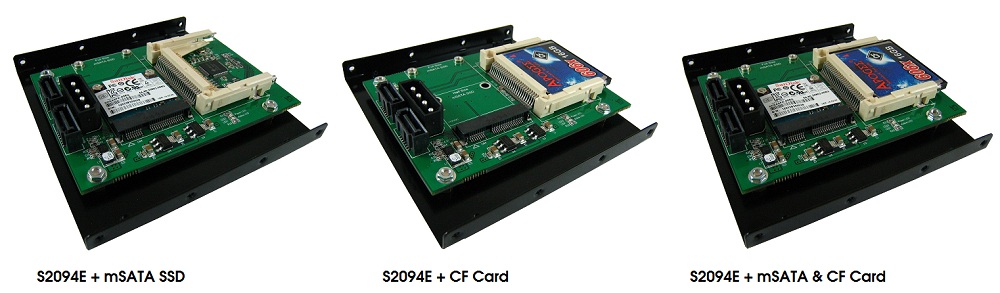

support storage device

※ Sandisk U100 Series SSD and compatible Storage Device

※ Samsung PM830 Series SSD and compatible Storage Device

※ Micron RealSSD C400 & C400v mSATA SSD and compatible Storage Device



support storage device

5



Test repoort Download :



PDF S2094E performance and burn in test report



PDF S2094E測試報告 (繁體中文)



PDF S2094E测试报告 (简体中文)



download



Datasheet Download :



PDF   S2094E.PDF

PDF    S2094E (繁體中文).PDF

PDF    S2094E (简体中文).PDF

S2094E assembly guide Download :



PDF     S2094E assembly guide.PDF

PDF     S2094E 安裝說明(繁體中文).PDF

PDF     S2094E 安装说明(简体中文).PDF
