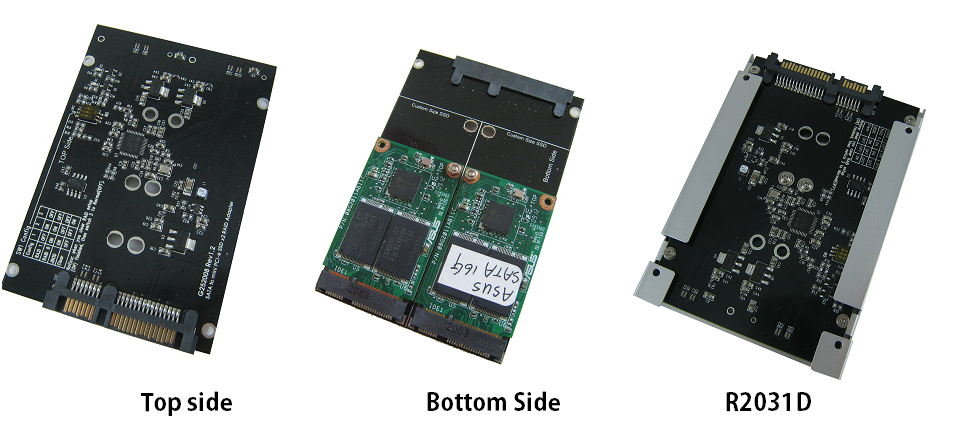

R2031D provide 2-port Mini PCI-e SSD connector, built-in 2.5-inch shell SATA II high-performance array card. It provides hardware to setup the RAID level, no driver, BIOS or software required for RAID installation, can be switched to RAID 0, RAID 1, JBOD three mode operation settings.

Mini PCI-e SSDx2
Built-in the JMB390 high performance processor
Fully hardware-accelerated RAID Engine
Supports PM aware and non-PM aware host
Supports Native Command Queue (NCQ)
Supports RAID levels: 0 / 1 / JBOD
3-button switch to complete the RAID mode setup
No external DRAM or processor required for RAID operation.

• Notebook, Ultrabook
• RAID Subsystem

• NAS Servers
• Backup Systems
• Disk Clone Systems
• Serial ATA Enclosures
• Large Capacity & High Performance SSD
• Solid State Drive
• Very Large Capacity Disk Systems
• SATA Ports Expander

Datasheet Download :

    R2031D.PDF

    R2031D(繁體中文).PDF

    R2031D(简体中文).PDF

Test report Download :

     Performance & Burn in test .PDF

    效能及老化測試(繁體中文).PDF

    效能及老化测试(简体中文).PDF



Raid Switch intall guide Download :

     Raid Switch intall guide.PDF

    Raid Switch 安裝說明(繁體中文).PDF

    Raid Switch 安装说明(简体中文).PDF



R2031D assembly guide Download :

     R2031D assembly guide.PDF

    R2031D 安裝說明(繁體中文).PDF

    R2031D 安装说明(简体中文).PDF
