CB963Fx9

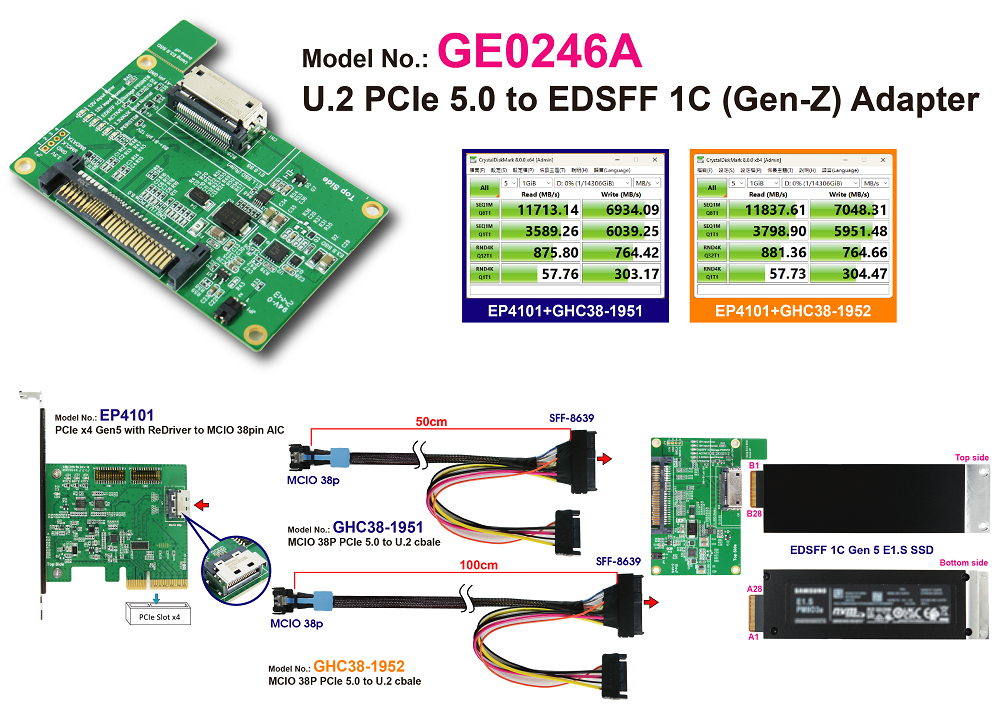

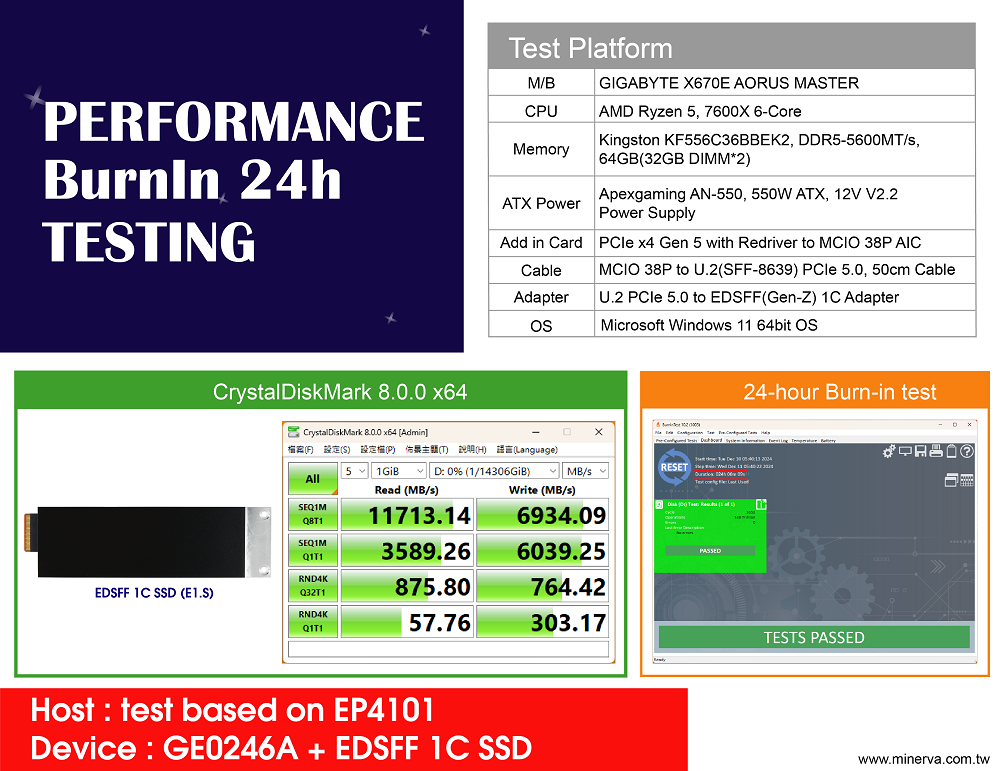

U.2(SFF-8639) to EDSFF(Gen-Z) 1C convert for PCIe 5.0 signals

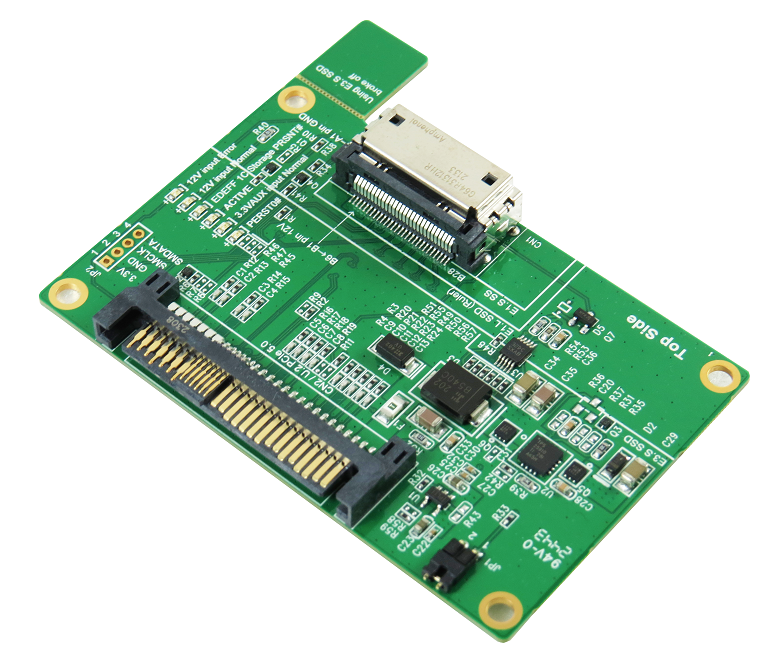

Built-in SFF-8639 connector, pin-out defined by SFF-9402 Rev1.1

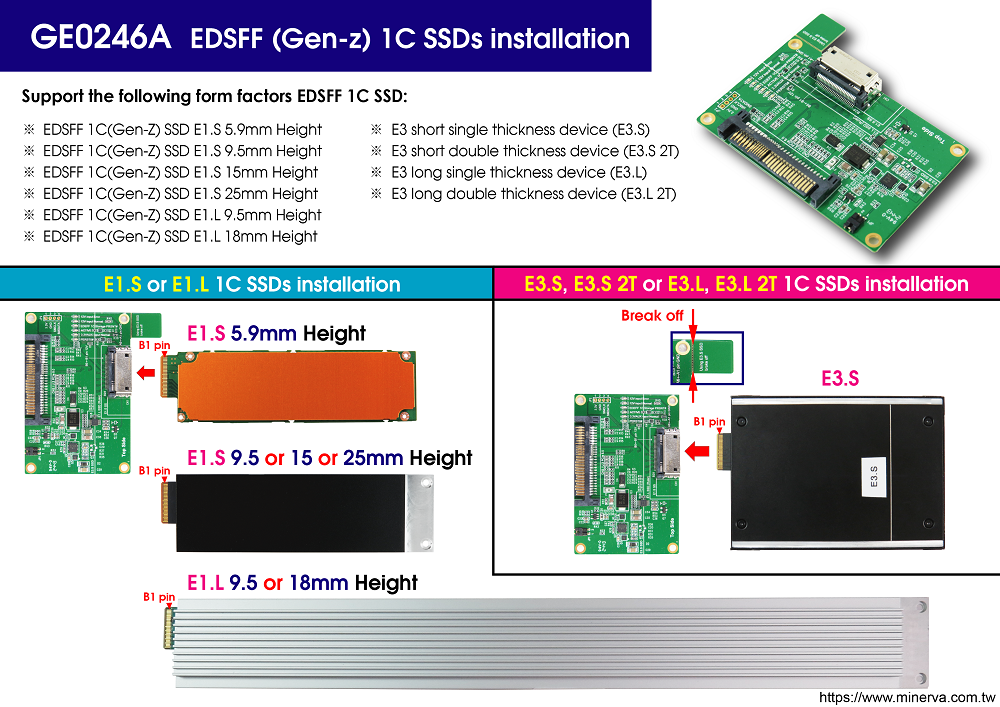

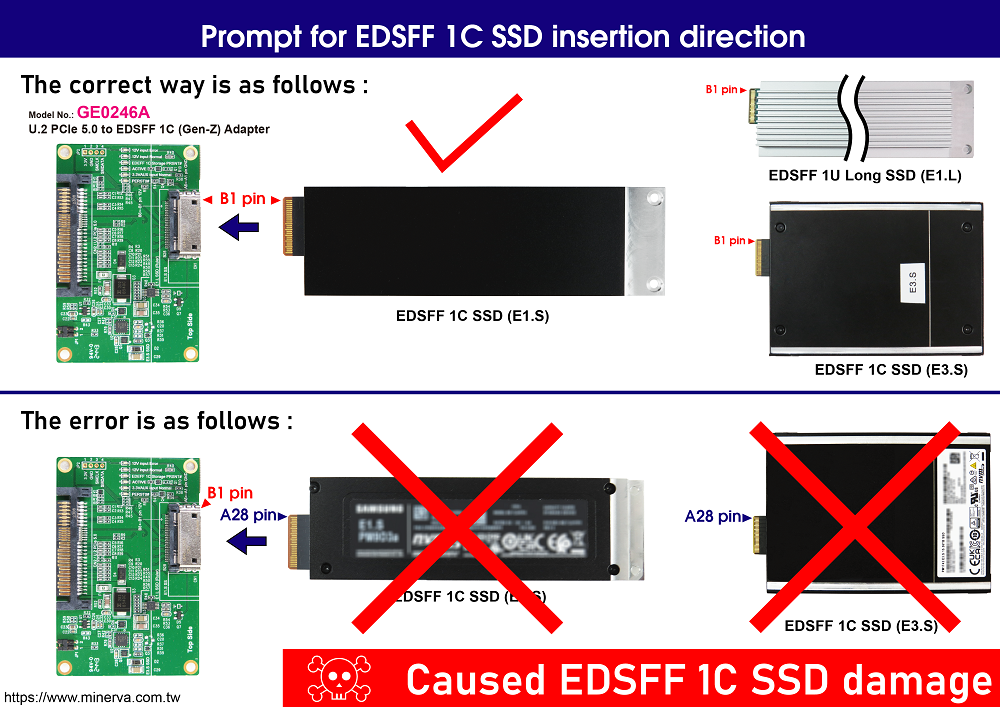

Built-in EDSFF(Gen-Z) 1C connector

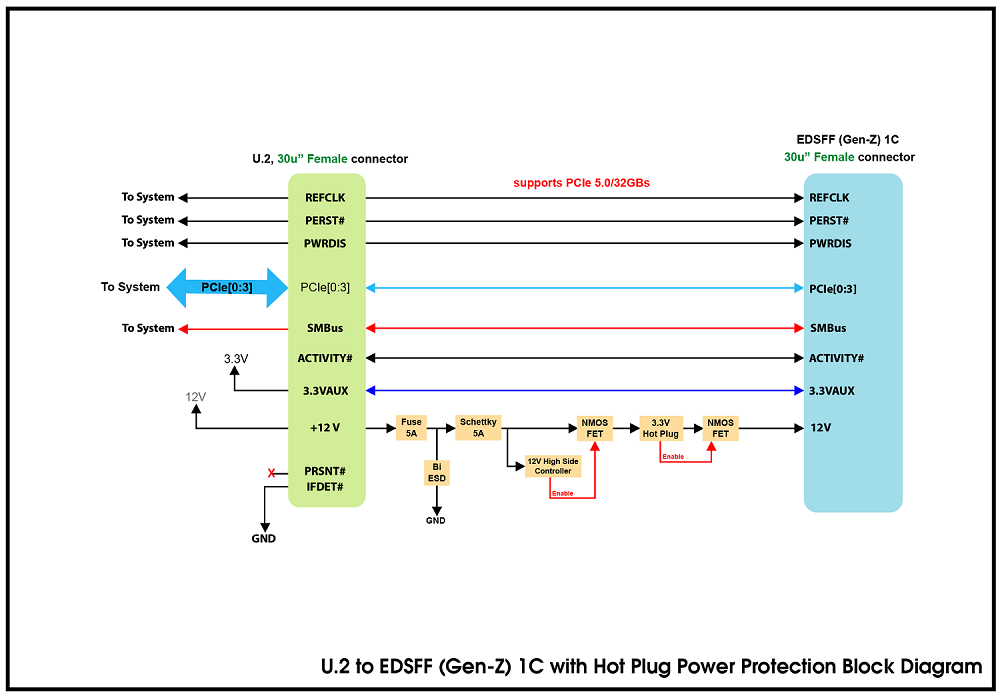

12V Input power rail built-in 5A FUSE
12V Input power rail with 400W Bidirectional TVS
12V Input power rail built-in 5A Schottky barrier rectifer
12V Input power rail high side controller with Power NMOS FET
Built-in 12V Hotswap Power controller with programmable Inrush Slew rate, support a maximun continuous current of 6.5A for EDSFF SSD protection
Built-in 12V output with 30-V, N channel NexFET power MOSFET, 32m ohm with Reverse current protection
LED1 RED LED on indicates 12V input Power Error
LED2 Green LED on indicates 12V power ready
LED5 Green LED on indicates 3.3Vaux power ready
LED6 Red LED indicates on to off for PCIe PERST# signals implementation
