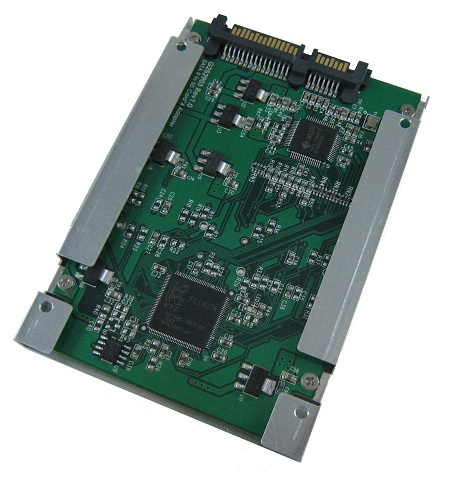

L914D is an economical 2.5" SSD. It uses a 2.5" ultra-lightweight aluminum material shell, coupled with the SD Card combination to SATA adapter. When assembled, it can operate in a variety of operating systems. Such as DOS, Windows 95, 98, XP, 2000, Vista, Win 7, Linux, Unix, and so on.

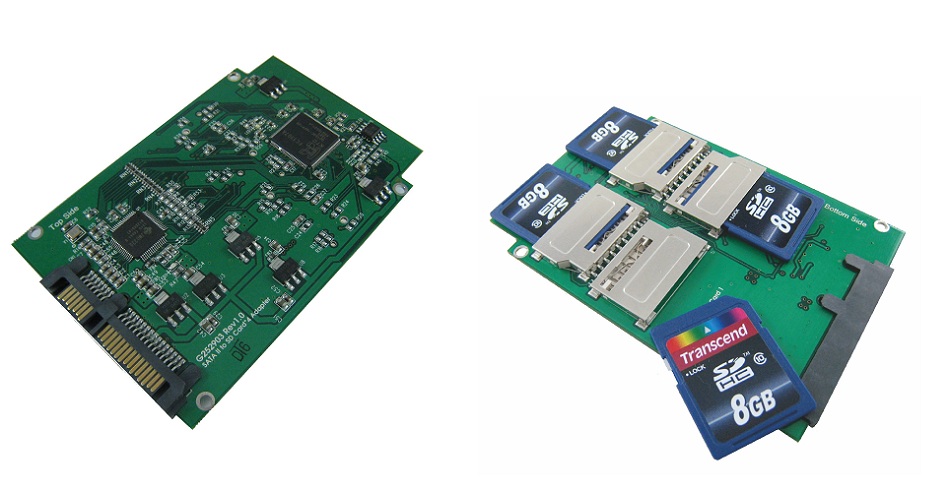

L914D adapter allows the installation of SD Card as system disk, boot the operating system directly, without having to install any drivers.

• Fully compliant with SATA revision 2.6
• Fully compatible with the SDHC 2.0 as well as the Compact-Flash standard 4.1
• Fully compliant with SFF-8223 specification for 2.5” Drives Form Factor with SATA 7+15pin Connector
• Fully compliant with Intel Common Building Block HDD Platform
• Built-in RAID 0 functions which can speed/size up 4-channel SDHC host interface to SATA interface.
• Support SD Card Physical Dimensions:

• Operating temp. – Commercial (0°C to +70°C)

1. Notebook

2. Internet Appliances

3. Kiosks

4. Industrial Computers

5. Routers

6. Firewalls

※ Single port of SD card capacity MAX. to 32GB

※ Dual port of SD card capacity MAX. to 64GB

※ Full 4 port of SD card capacity MAX. to 128GB

Datasheet Download :

    L914D.PDF

    L914D(繁體中文).PDF

    L914D(簡體中文).PDF

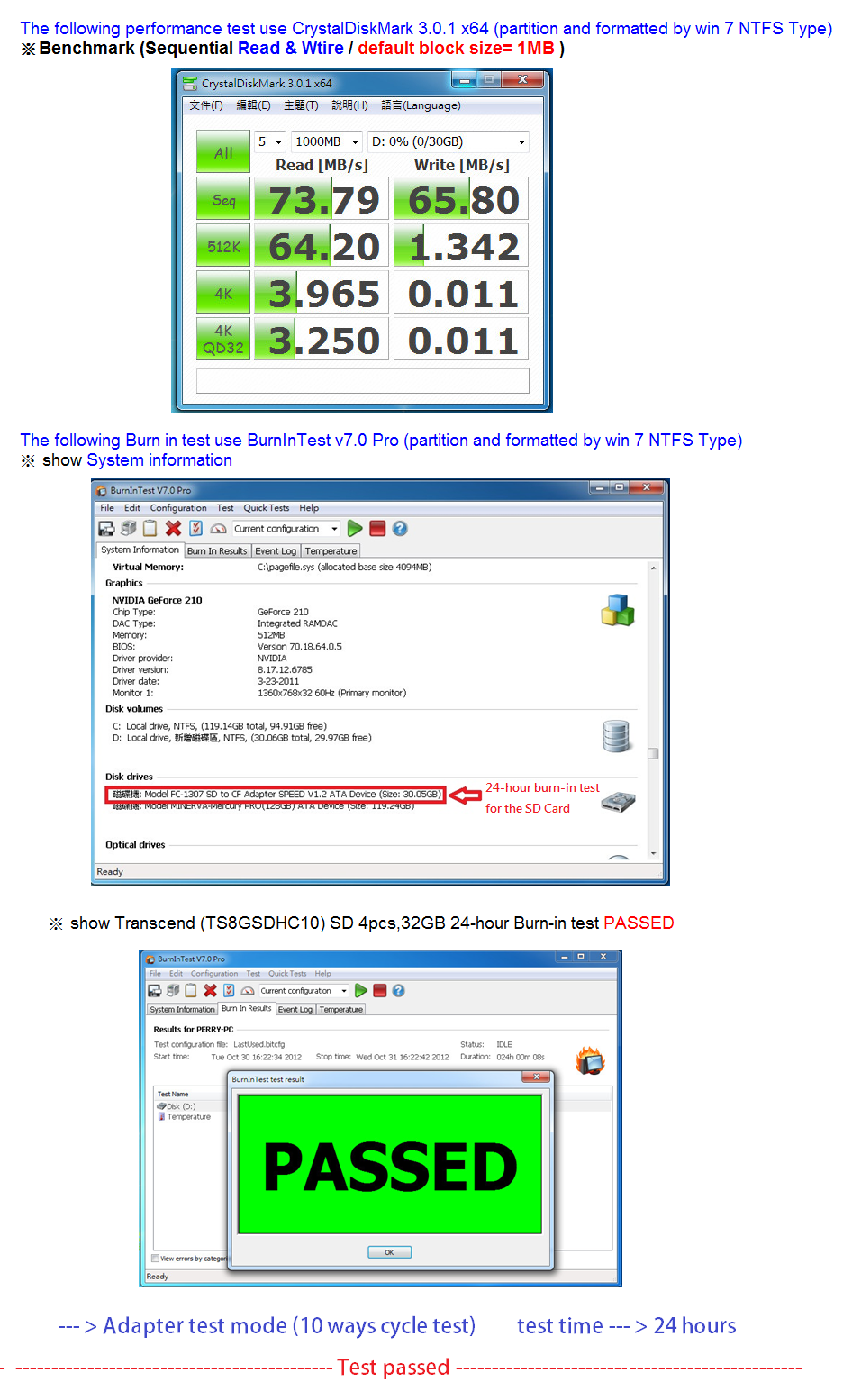

Test report Download :

     Performance & Burn in test .PDF

    效能及老化測試(繁體中文).PDF

   效能及老化测试(简体中文).PDF



SD Card Assembly guide Download :

    L914D assembly guide.PDF

    L914D 安裝說明(繁體中文).PDF

    L914D 安裝说明(简体中文).PDF

L914D Adapter booting set up Download :

    SATA to SD x 4-port Adapter booting set up.PDF
