Minerva Innovation 2.5" SATA SSD Commercial

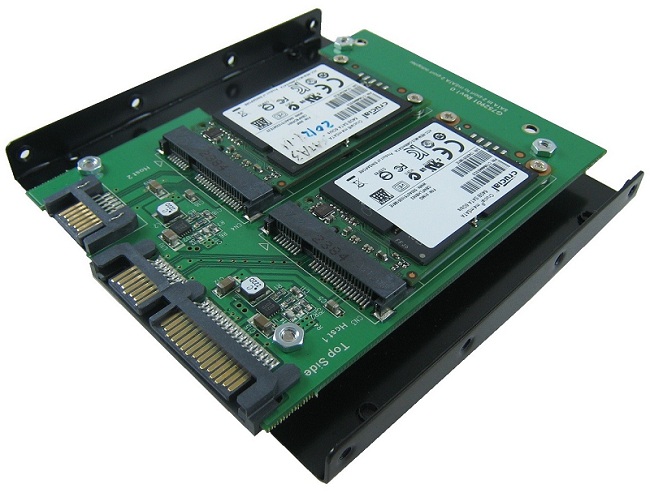

AD963DE9 is SATA to mSATA adapter, providing a set of standard 7 +15 pin SATA connector, a set of 7pin SATA signal connector on the host connection, and two sets of Mini PCI-e 52pin connector on the mSATA connection. When assembled, the two mSATA SSD can operate independently and can install the operating system in the mSATA SSD, such as DOS, Windows 95, 98, XP, 2000, Vista,, Win 7, the Linux, Unix, etc.

AD963DE9 adapter allows any of a group of the mSATA SSD as the system disk, boot the operating system directly, without having to install any drivers, but does not affect the execution speed of the SSD storage devices.

Fully compliant with SATA revision 3.0
PCI Express Mini Card Electromechanical Specification 1.2
PCI-E Card Electromechanical Specification Revision 1.1
Data Transfer rate: 6 Gb/s bandwidth

mini

References

※ Serial ATA Reversion 3.0 -------------------------------------------------------> June 2009

※ ATA/ATAPI-7 --------------------------------------------------------------------> April 2004

※ PCI Express Mini Card Electromechanical Specification 1.2 ---------------->October 2007

※ PCI Express Card Electromechanical Specification Revision 1.1 ------------>March 2005

mini

Test repoort Download :

AD963DB9 / DE9 performance and burn in test report

AD963DB9 / DE9 測試報告 (繁體中文)

AD963DB9 / DE9 测试报告 (简体中文)

mini

Test comparison Download :

AD963Dx9 Dual port/AD963FA9 single port SATA III Test comparison.PDF

AD963Dx9/AD963FA9單埠,雙埠轉接卡效能比較圖.PDF

AD963Dx9/AD963FA9单埠,双埠转接卡效能比较图.PDF

The adapter connects to the Host PC in the same way that a 2.5 SFF SSD drive is connected using a SATA cable. It may be used in any application where a SFF

SSD drive may be used:

1. desk-top PC

2. Internet Appliances

3. Kiosks

4. Industrial Computers

5. Routers

6. Firewalls

Datasheet Download :

    AD963DE9 Series.PDF

    AD963DE9(繁體中文).PDF

    AD963DE9(簡體中文).PDF

AD963DE9 assembly guide Download :

     AD963DE9 assembly guide.PDF

    AD963DE9 安裝說明(繁體中文).PDF

    AD963DE9 安装说明(简体中文).PDF
