CB963Fx9











specifications

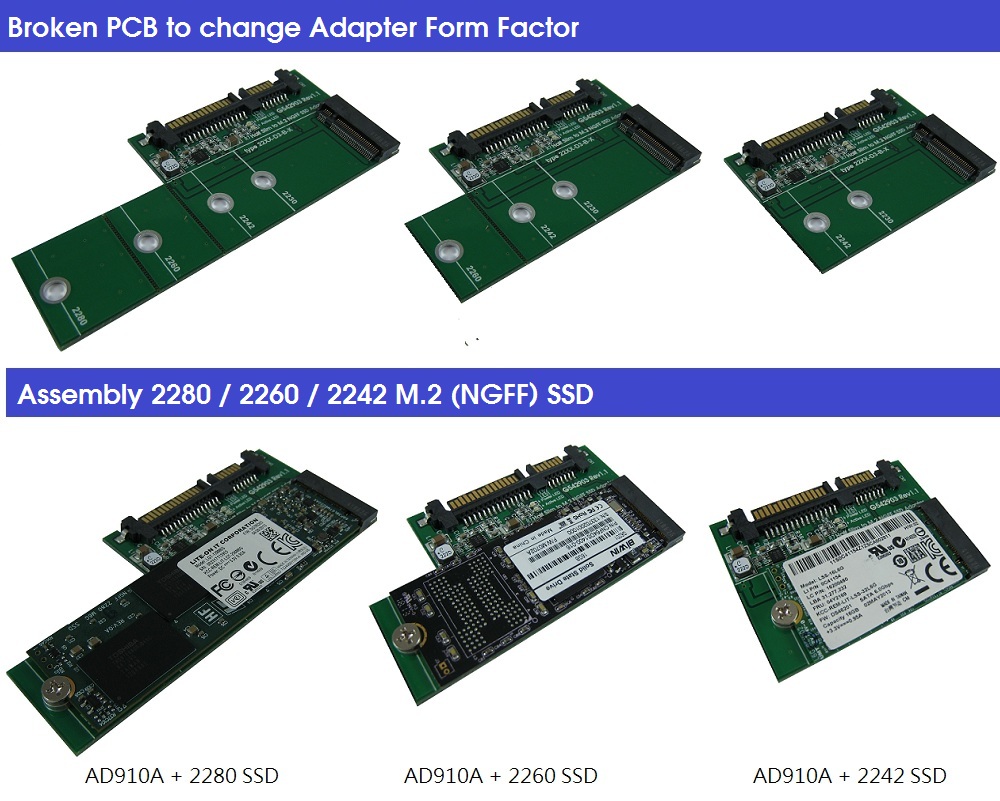

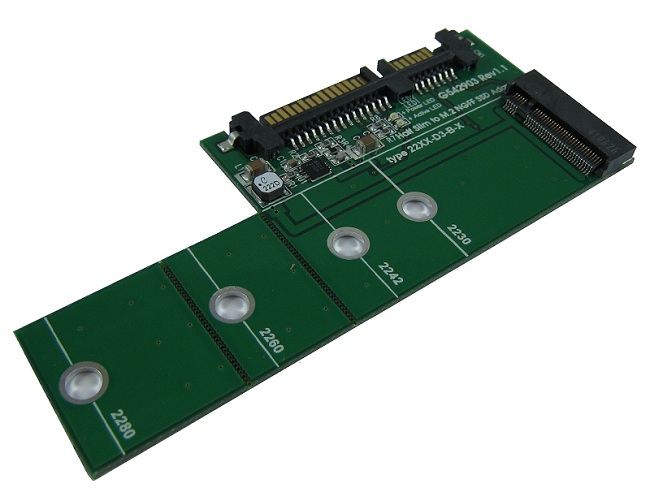

  • SATA Half Slim SSD Form Factor
  • M.2 (NGFF) to SATA III Module
  • Green LED indicates the M.2 (NGFF) SSD's power status
  • Red LED indicates the M.2 (NGFF) SSD's active status
  • Support SATA Reversion 3.2
  • Compliant with PCI Express M.2 Spec. Version 1.0
  • PWM synchronous buck converter Power IC
    3A maximum output current
    Short circuit protection
    In-rush current suppression
    Thermal shutdown protection
    ESD HBM (Human Body Mode)/2KV





Application

Application





Application

Application



Application

Application

support storage device

5

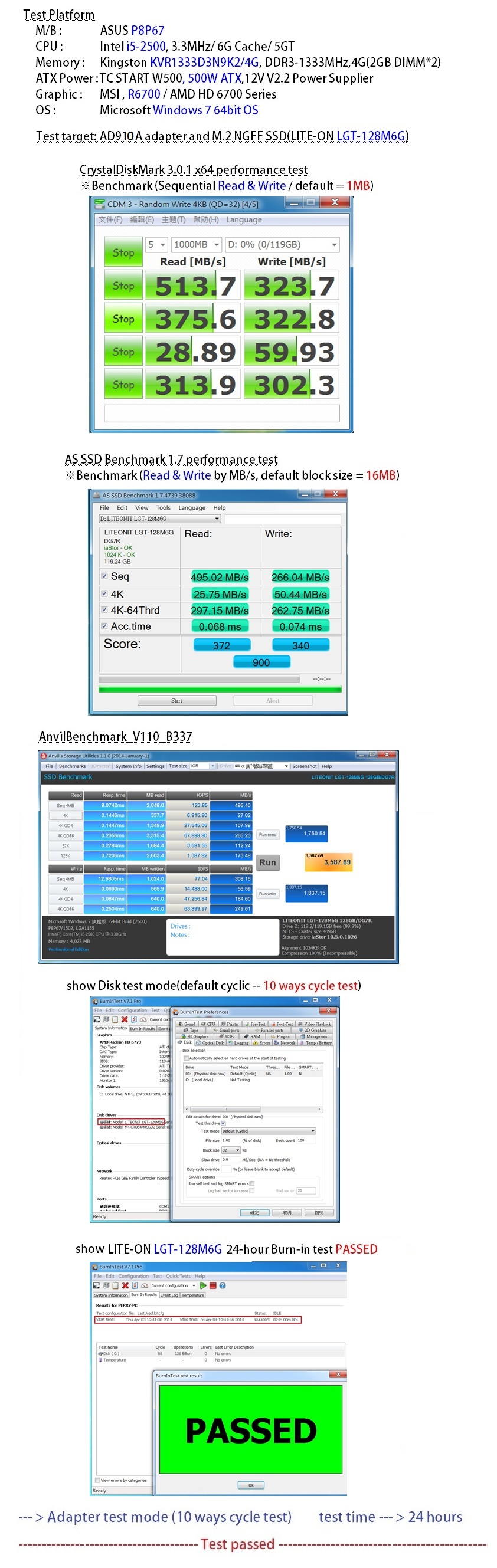

Test repoort Download :



PDF AD910A + LITE-ON LGT-128M6G performance and burn in test report



PDF AD910A + LITE-ON LGT-128M6G 測試報告 (繁體中文)



PDF AD910A + LITE-ON LGT-128M6G 测试报告 (简体中文)





Application

1. desk-top PC

2. Internet Appliances

3. Kiosks

4. Industrial Computers

5. Routers

6. Firewalls



support storage device





download



Datasheet Download :



PDF    AD910A.PDF

PDF    AD910A (繁體中文).PDF

PDF    AD910A (简体中文).PDF

AD910A assembly guide Download :



PDF     AD910A assembly guide.PDF

PDF    AD910A 安裝說明(繁體中文).PDF

PDF    AD910A 安装说明(简体中文).PDF
