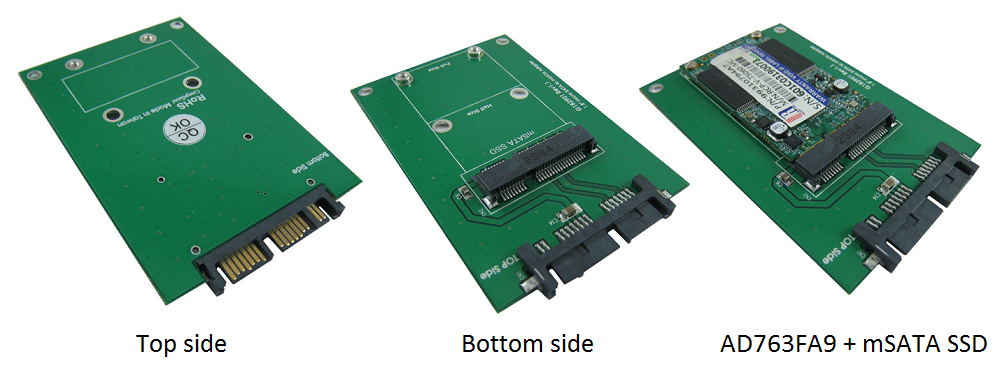

AD763FA9 is Micro SATA to mSATA adapter, providing one 7+9pin Micro SATA connector on the host connection and one Mini PCI-e 52-pin connector on the SSD storage devices connections. When assembled, it can operate in a variety of operating systems. Such as DOS, Windows 95, 98, XP, 2000, Vista, Win 7, Linux, Unix, and so on.

AD763FA9 adapter allows the installation of mSATA SSD as system disk, boot the operating system directly, without having to install any drivers, but does not affect the execution speed of the mSATA SSD.

• Fully compliant with SATA revision 3.0
• SFF-8144 for Micro SATA 78.5x54mm Form Factor
• PCI Express Mini Card Electromechanical Specification 1.2
• Data transfer rate: 6Gb/s bandwidth
• Support the following form factor mSATA SSD:

Full size: 50.95mm(L) x 30mm(W)
Half size: 26.8mm (L) x 30mm (W)

• Operating temperature – Commercial (0°C to +70°C)

1. desk-top PC

2. Internet Appliances

3. Kiosks

4. Industrial Computers

5. Routers

6. Firewalls

• Intel 525,310, 311 Series mSATA module SSD
• amsung PM800, PM810, PM830 Series mSATA module SSD
• Toshiba HG,SG2 Series mSATA Module SSD
• Sandisk Gen 2 pSSD, P4 Meteor5 Series mSATA module SSD
• Any compatible mSATA SSD Card
