AD563FA9 is SATA to mSATA adapter, providing one 7+15pin SATA connector on the host connection and one Mini PCI-e 52-pin connector on the SSD storage devices connections. When assembled, it can operate in a variety of operating systems. Such as DOS, Windows 95, 98, XP, 2000, Vista, Win 7, Linux, Unix, and so on.

AD563FA9 adapter allows the installation of mSATA SSD as system disk, boot the operating system directly, without having to install any drivers, but does not affect the execution speed of the mSATA SSD.

• Fully compliant with SATA revision 3.0
• JEDEC MO-297A for Half Slim Form Factor
• PCI Express Mini Card Electromechanical Specification 1.2
• Power IC PWM / 1.4MHz 5.5V synchronous buck converter
• Provide mSATA SSD input maximum current: 3A
• Data transfer rate: 6Gb/s bandwidth
• Support the following form factor mSATA SSD:
  Half size: 26.8 mm (L) x 30 mm (W)
• Operating temperature – Commercial (0°C to +70°C)

1. desk-top PC

2. Internet Appliances

3. Kiosks

4. Industrial Computers

5. Routers

6. Firewalls

※ AD563FA9 Adapter bottom side SanDisk U100 Series mSATA SSD and compatible msata SSD

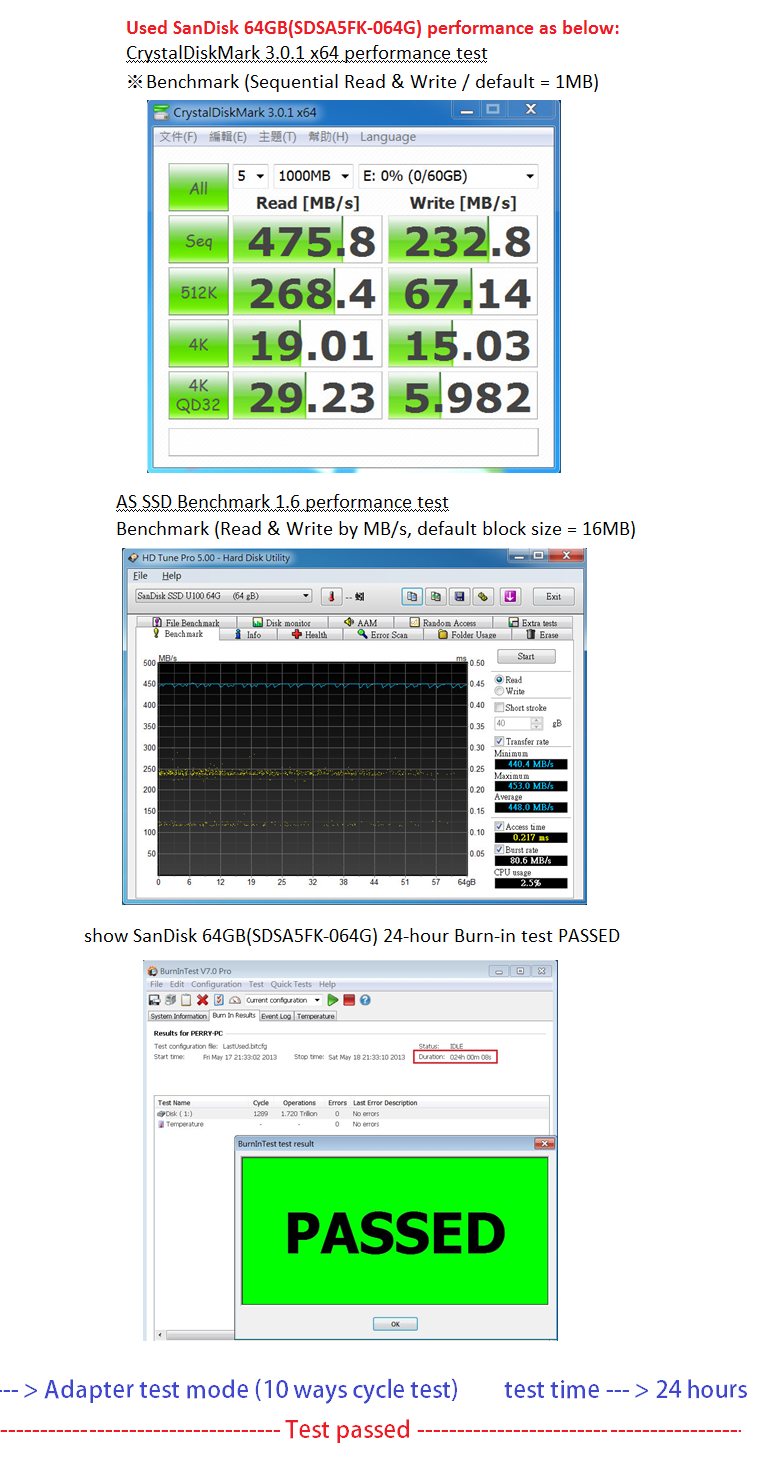

Test Platform

M/B :       ASUS P8P67
CPU :       ntel i5-2500, 3.3MHz/ 6G Cache/ 5GT
Memory :    Kingston KVR1333D3N9K2/4G, DDR3-1333MHz,4G(2GB DIMM*2)
ATX Power :  TC START W500, 500W ATX,12V V2.2 Power Supplier
Graphic :    MSI , R6700 / AMD HD 6700 Series
OS :        Microsoft Windows 7 64bit OS

Test repoort Download :

AD563FA9 with anDisk 64GB(SDSA5FK-064G) performance and burn in test report

AD563FA9 + SanDisk 64GB(SDSA5FK-064G) 效能及老化測試 (繁體中文)

AD563FA9 + SanDisk 64GB(SDSA5FK-064G) 效能及老化测试 (简体中文)

Datasheet Download :

AD563FA9 Datasheet.PDF

AD563FA9(繁體中文) Datasheet.PDF

AD563FA9(簡體中文) Datasheet.PDF

    AD563FA9.PDF

    AD563FA9(繁體中文).PDF

    AD563FA9(簡體中文).PDF

AD563FA9 assembly guide Download :

     AD563FA9 assembly guide.PDF

    AD563FA9 安裝說明(繁體中文).PDF

    AD563FA9 安装说明(简体中文).PDF
