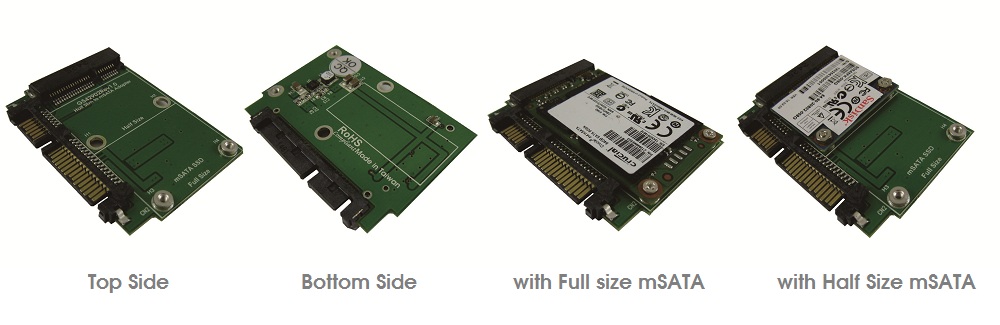

AD563FA5 is SATA to mSATA adapter, providing one 7+15pin SATA connector on the host connection and one Mini PCI-e 52-pin connector on the SSD storage devices connections. When assembled, it can operate in a variety of operating systems. Such as DOS, Windows 95, 98, XP, 2000, Vista, Win 7, Linux, Unix, and so on.
AD563FA5 adapter allows the installation of mSATA SSD as system disk, boot the operating system directly, without having to install any drivers, but does not affect the execution speed of the mSATA SSD.
- Fully compliant with SATA revision 3.0
- JEDEC MO-297A for Half Slim Form Factor
- PCI Express Mini Card Electromechanical Specification 1.2
- Power IC PWM / 1.4MHz 5.5V synchronous buck converter
- Provide mSATA SSD input maximum current: 3A
- Data transfer rate: 6Gb/s bandwidth
- Support the following form factor mSATA SSD:
Full size: 50.95 mm (L) x 30 mm (W)
Half size: 26.8 mm (L) x 30 mm (W)
- Operating temperature – Commercial (0°C to +70°C)
1. desk-top PC
2. Internet Appliances
3. Kiosks
4. Industrial Computers
5. Routers
6. Firewalls
- Intel 310, 311, 313, 525 Series mSATA SSD
- Samsung PM800, PM810, PM830 Series mSATA SSD
- Micron RealSSD C400, C400v mSATA, Crucial mSATA
Test repoort Download :
AD563FA9 performance and burn in test report
AD563FA9 測試報告 (繁體中文)
AD563FA9 测试报告 (简体中文)
