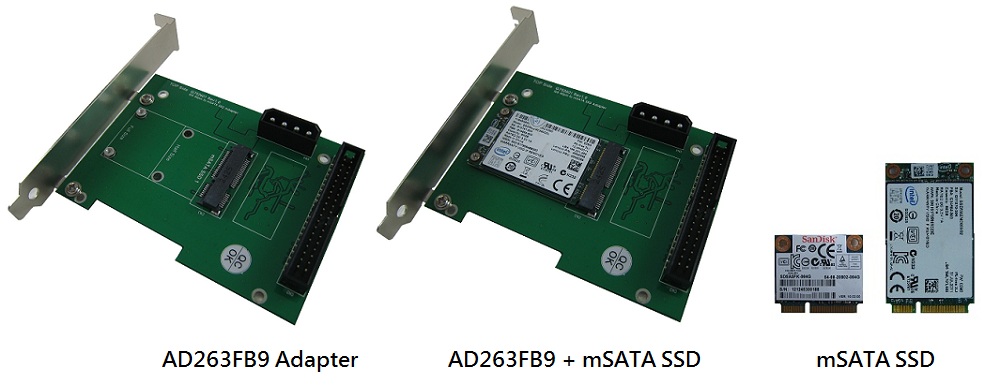

AD263FB9 is an 3.5" IDE SSD. It coupled with the mSATA SSD combination to IDE adapter. When assembled, it can operate in a variety of operating systems. Such as DOS, Windows 95, 98, XP, 2000, Vista, Win 7, Linux, Unix, and so on.



AD263FB9 adapter allows the installation of mSATA SSD as system disk, boot the operating system directly, without having to install any drivers, but does not affect the execution speed of the SSD storage devices.



specifications



  • Fully compliant with SATA revision 3.0
  • PCI Express Mini Card Electromechanical Specification 1.2
  • PWM Power IC / 1.4MHz 5.5V synchronous buck converter
  • AD263FB9 Adapter with PCI-e Bracket
  • mSATA input voltage: 3.3V ±5%, input current: 3A
  • Support ATA/ATAPI-7 specification.
  • ATA/ATAPI Ultra DMA Mode 0, 1, 2, 3, 4, 5, 6, 7.
  • ATA/ATAPI PIO Mode 0, 1, 2, 3, 4.
  • Support the following form factor mSATA SSD:

Full size: 50.95 mm (L) x 30mm (W)
Half size: 26.8 mm (L) x 30 mm (W)

  • Operating temperature – Commercial (0°C to +70°C)



support storage device

962



Application



The adapter connects to the Host PC in the same way that a 2.5 SFF SSD drive is connected using a SATA cable. It may be used in any application where a SFF SSD drive may be used:



1. desk-top PC

2. Internet Appliances

3. Kiosks

4. Industrial Computers

5. Routers

6. Firewalls



support storage device



  • Intel 525,310, 311 Series mSATA module SSD
  • Samsung PM800, PM810, PM830 Series mSATA module SSD
  • Toshiba HG,SG2 Series mSATA Module SSD
  • Sandisk Gen 2 pSSD, P4 Meteor5 Series mSATA module SSD
  • Any compatible mSATA SSD Card
