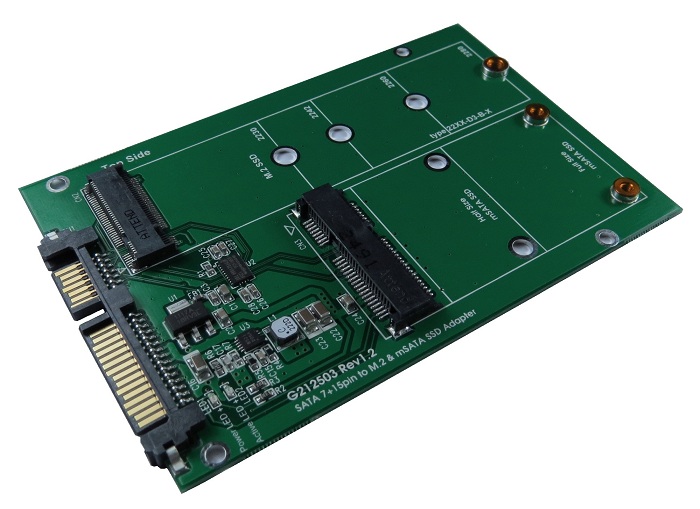

• 2.5" SATA SSD Form Factor : 98 x 65.5mm

• M.2 (NGFF) & mSATA to SATA III Module

• Build in Mini PCI-e 52pin Female connector

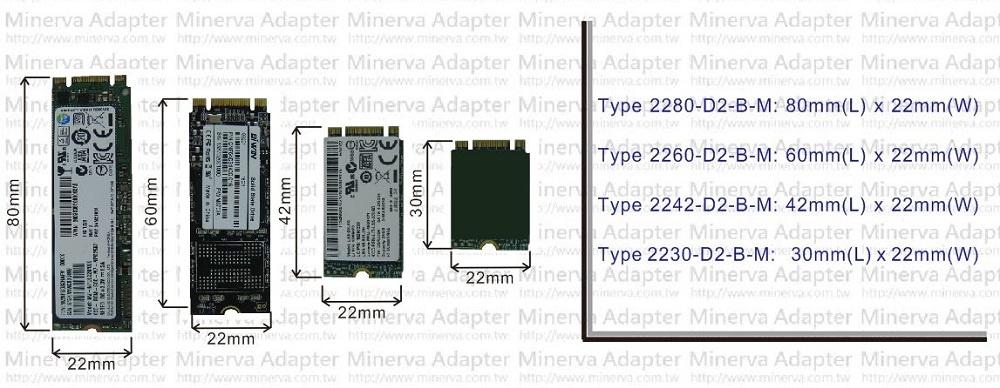

• Build in M.2 (NGFF) B key Female connector

• Green LED indicates power status

• Red LED indicates active status

• Insert both M.2 & mSATA SSD on S2083A,
  M.2 SSD is the first priority. mSATA won't work.
• Support SATA Reversion 3.2

• PCI Express M.2 Spec. Revision 0.7, Version 1.0

• PCI Express Mini Card Electromechanical Spec. 1.2

• PWM synchronous buck converter Power IC
  3A maximum output current
  Short circuit protection
  In-rush current suppression
  Thermal shutdown protection
  ESD HBM (Human Body Mode)/2KV

1. desk-top PC

2. Internet Appliances

3. Kiosks

4. Industrial Computers

5. Routers

6. Firewalls

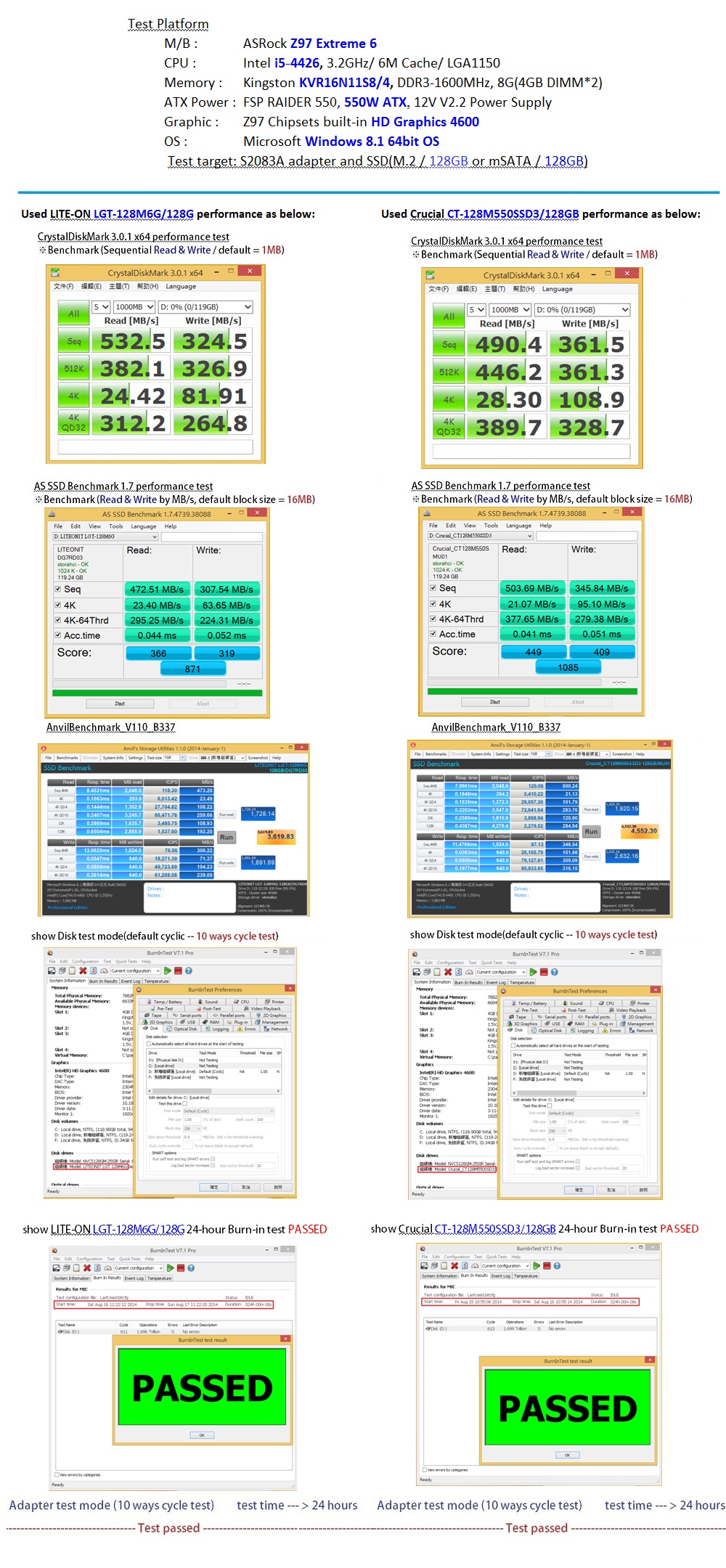

Test repoort Download :

S2083A performance and burn in test report

S2083A測試報告 (繁體中文)

S2083A测试报告 (简体中文)

※ Sandisk U100 Series SSD and compatible Storage Device

※ Samsung PM830 Series SSD and compatible Storage Device

※ Micron RealSSD C400 & C400v mSATA SSD and compatible Storage Device

Datasheet Download :

   S2083A.PDF

    S2083A (繁體中文).PDF

    S2083A (简体中文).PDF

S2083A assembly guide Download :

     S2083A assembly guide.PDF

    S2083A 安裝說明(繁體中文).PDF

    S2083A安装说明(简体中文).PDF
