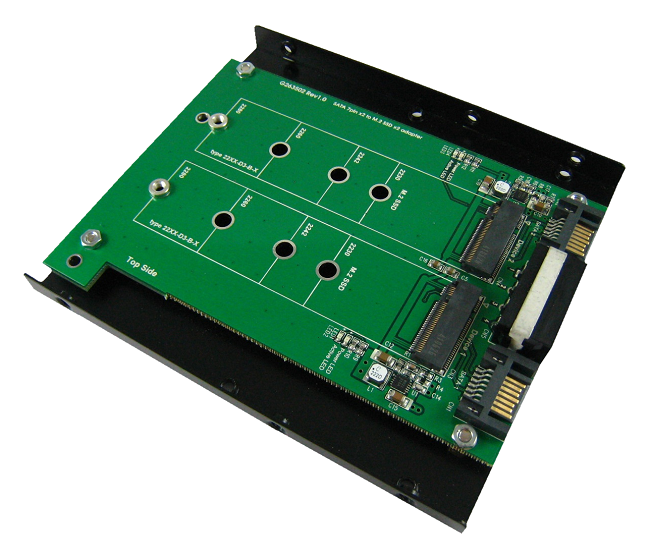

• M.2 (NGFF) to SATA III Module
• Support SATA Reversion 3.2
• Compliant with PCI Express M.2 Spec. Version 1.0
• PWM synchronous buck converter Power IC
  3A maximum output current
  Short circuit protection
  In-rush current suppression
  Thermal shutdown protection
  ESD HBM (Human Body Mode)/2KV

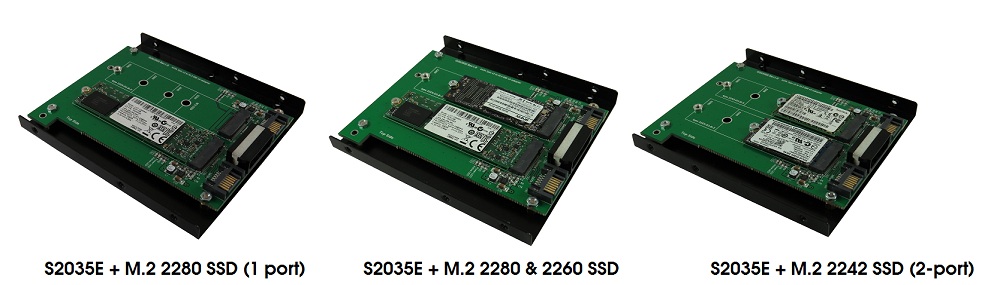

• Suport the following form factor M.2(NGFF) SSD:

Type 2230-D2-B-M: 30mm(L) x 22mm(W)
Type 2242-D2-B-M: 42mm(L) x 22mm(W)
Type 2260-D2-B-M: 60mm(L) x 22mm(W)
Type 2280-D2-B-M: 80mm(L) x 22mm(W)

1. desk-top PC

2. Internet Appliances

3. Kiosks

4. Industrial Computers

5. Routers

6. Firewalls

• Intel 530 Series M.2 SSD & compatible Storage
• Sandisk X110 M.2 SSD & compatible Storage

• Micron M500 Series M.2 SSD & compatible Storage

Test repoort Download :

S2035E performance and burn in test report

S2035E測試報告 (繁體中文)

S2035E测试报告 (简体中文)

Datasheet Download :

S2035E Datasheet.PDF

S2035E (繁體中文) Datasheet.PDF

S2035E (简体中文) Datasheet.PDF

S2035E assembly guide Download :

     S2035E assembly guide.PDF

     S2035E 安裝說明(繁體中文).PDF

     S2035E 安装说明(简体中文).PDF
