2.5" SATA to CFast Card Raid Adapter



8

8



Avstract

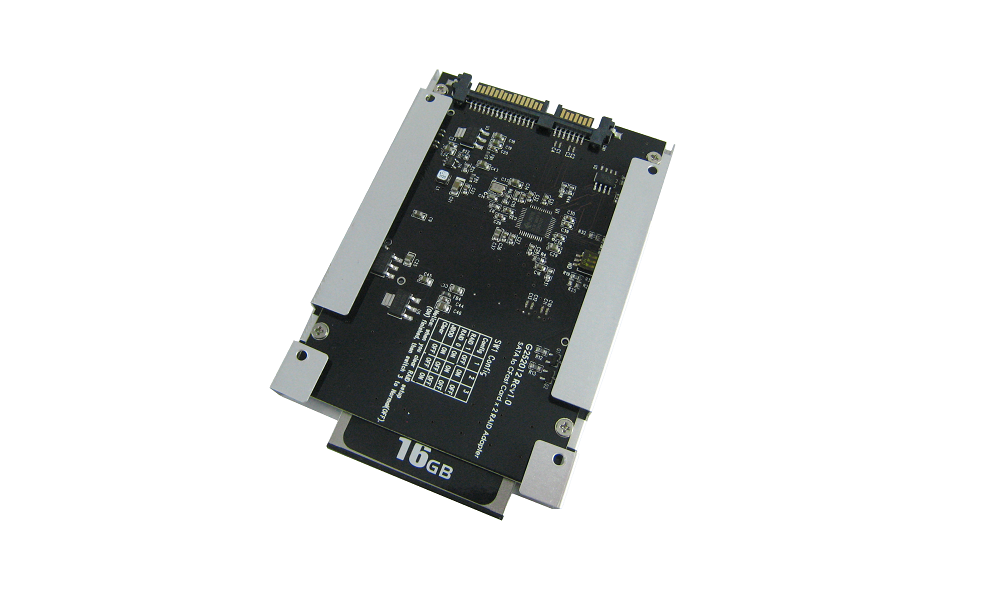

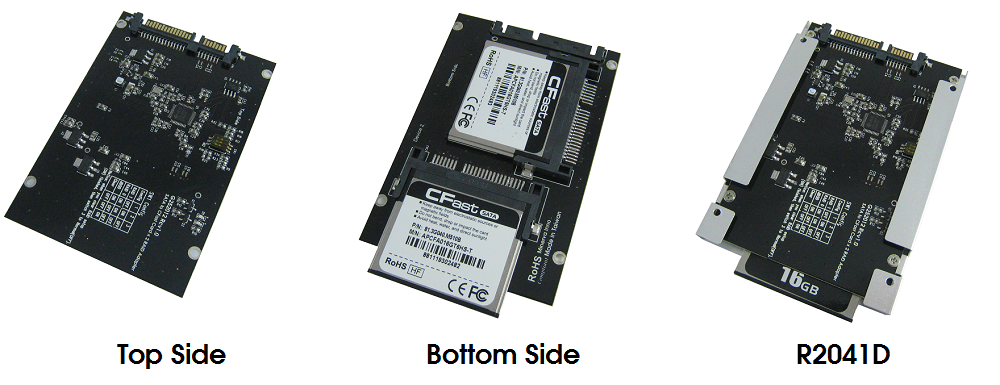

R2041D provide 2-port CFast Card SSD connector, built-in 2.5-inch shell SATA II high-performance array card. It provides hardware to setup the RAID level, no driver, BIOS or software required for RAID installation, can be switched to RAID 0, RAID 1, JBOD three mode operation settings.



specifications



 CFast Card SSDx2
Built-in the JMB390 high performance processor
Fully hardware-accelerated RAID Engine
Supports PM aware and non-PM aware host
Supports Native Command Queue (NCQ)
Supports RAID levels: 0 / 1 / JBOD
3-button switch to complete the RAID mode setup
No external DRAM or processor required for RAID operation



Application



  • Notebook, Ultrabook
  • RAID Subsystem
  • NAS Servers
  • Backup Systems
  • Disk Clone Systems
  • Serial ATA Enclosures
  • Large Capacity & High Performance SSD
  • Solid State Drive
  • Very Large Capacity Disk Systems
  • SATA Ports Expander





download



Datasheet Download :



PDF    R2041D.PDF

PDF    R2041D Series(繁體中文).PDF

PDF    R2041D Series(简体中文).PDF

Raid Switch intall guide Download :



PDF     Raid Switch intall guide.PDF

PDF    Raid Switch 安裝說明(繁體中文).PDF

PDF    Raid Switch 安裝说明(简体中文).PDF
