specifications

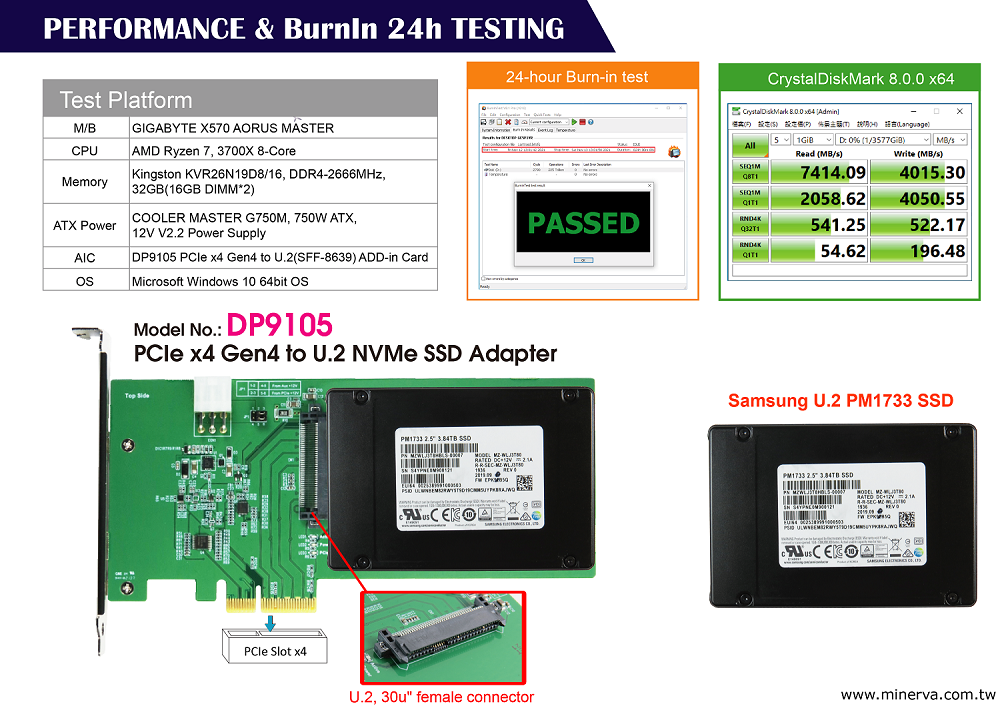

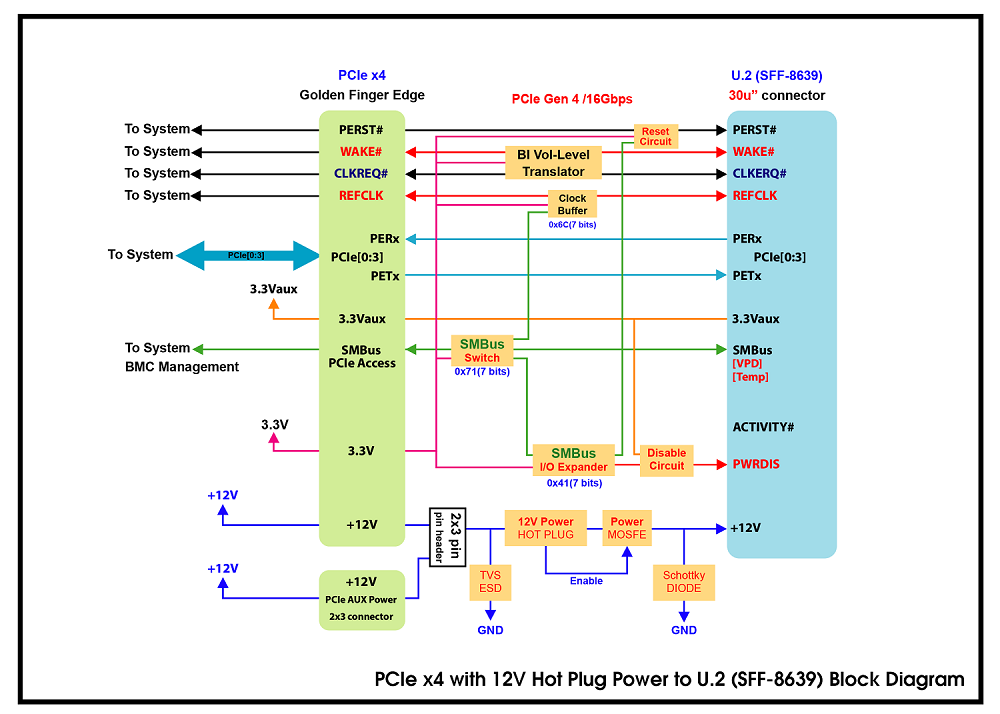

  • Supports Server BMC management
  • Supports Industrial Grade temerature range
  • U.2 (SFF-8639) to PCI Express 4.0 x4 convert

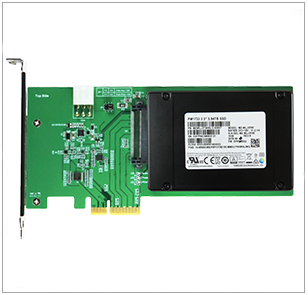

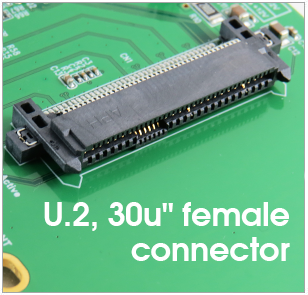

  • Built- in SFF-8639, 30u”connector
  • Built- in PCIe 100MHz Clock buffer to drive longer trace lengths and longer cable, Address: 0x6C(7 bits)
  • Built- in SMBus Switch, Address: 0x71(7 bits)
  • Built- in SMBus I/O Expander, Address: 0x41(7 bits) for U.2 SSD PWRDIS control
  • Supports PCIe PERST# for OOB(out of band) management to remote U.2 SSD Reset
  • Built- in WAKE# bidirectional voltage-level translator for Open-Drain output to be used over longer trace lengths and over longer cable - Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II
  • Built- in CLKREQ# bidirectional voltage-level translator for Open-Drain output to be used over longer trace lengths and longer over cable - Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II

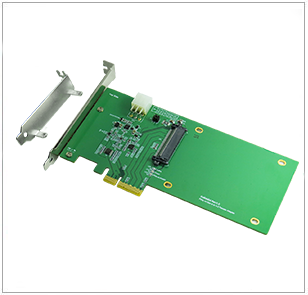

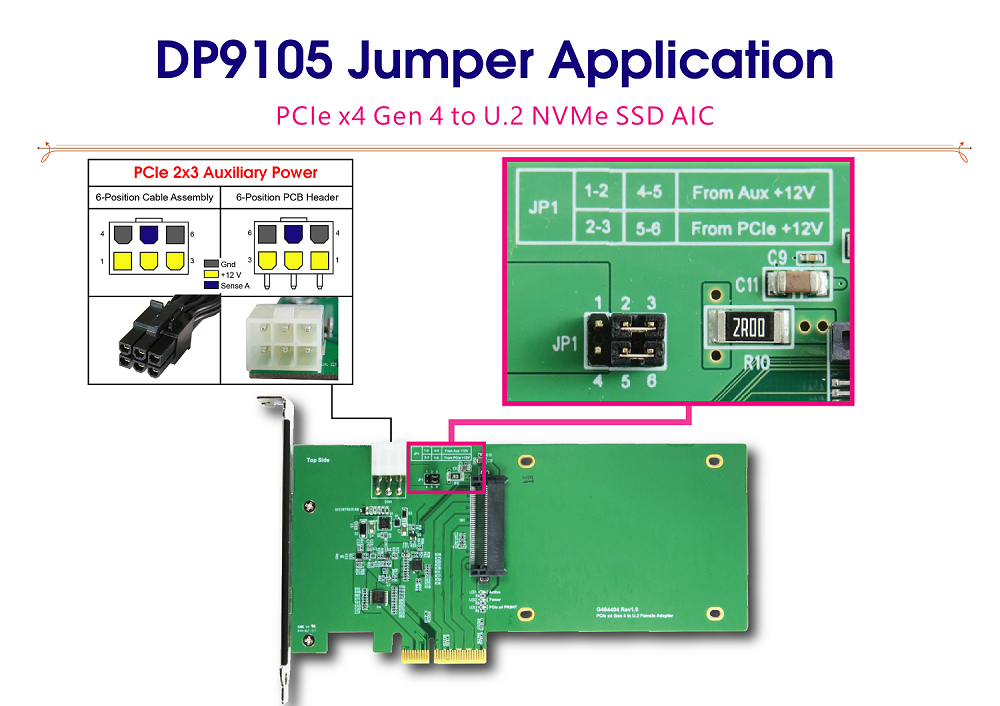

  • Built-in two 12V Hot Plug Power with eFuse protection for U.2 dual port
  • ◆Programmable Current Limit: 6.5A
  • ◆Programmable Inrush Current Slew Rate
  • ◆Thermal shutdown protection and fault alert
  • ◆Back-to-Back (B2B) FET Operation
  • Built-in 12V output with 30-V, N channel NexFET power MOSFET, 32 m Ohm
  • Built-in 12V output with SCHOTTKY BARRIER Power Rectifier
