specifications

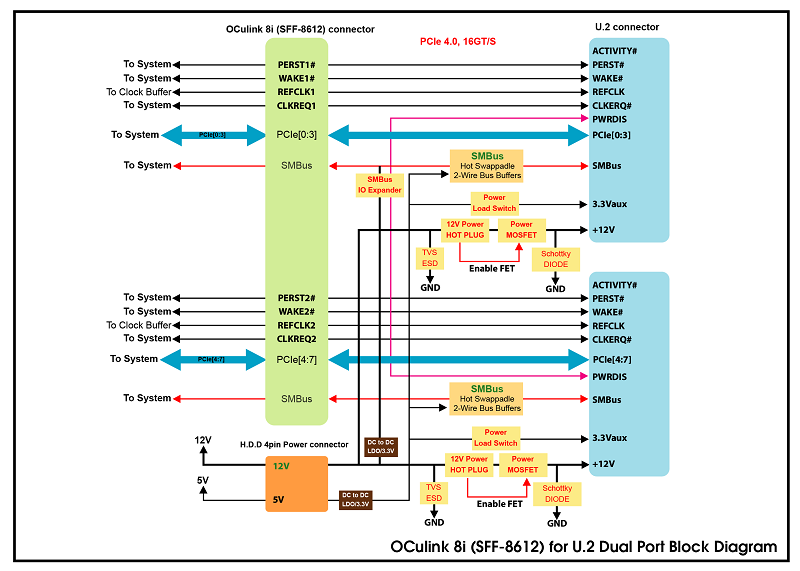

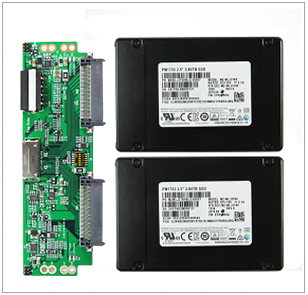

  • U.2 dual ports to OCulink 8i(SFF-8612) convert

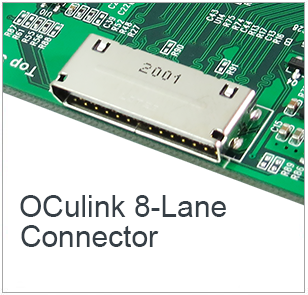

  • Built-in OCulink 8i connector, pin-out defined by SFF-9402 Rev1.1

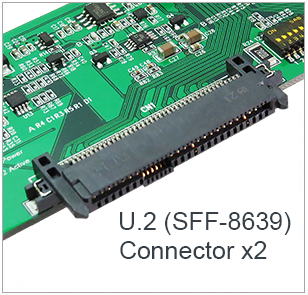

  • Built-in two U.2 SFF-8639 connector
  • Built-in two 12V Hot Plug Power with eFuse protection for U.2 dual ports
  • ◆ Programmable Current Limit: 6.5A
  • ◆ Programmable Inrush Current Slew Rat
  • ◆ Thermal shutdown protection and fault alert
  • ◆ Back-to-Back (B2B) FET Operation
  • Supports U.2 to PCIe CLKREQ#, WAKE#

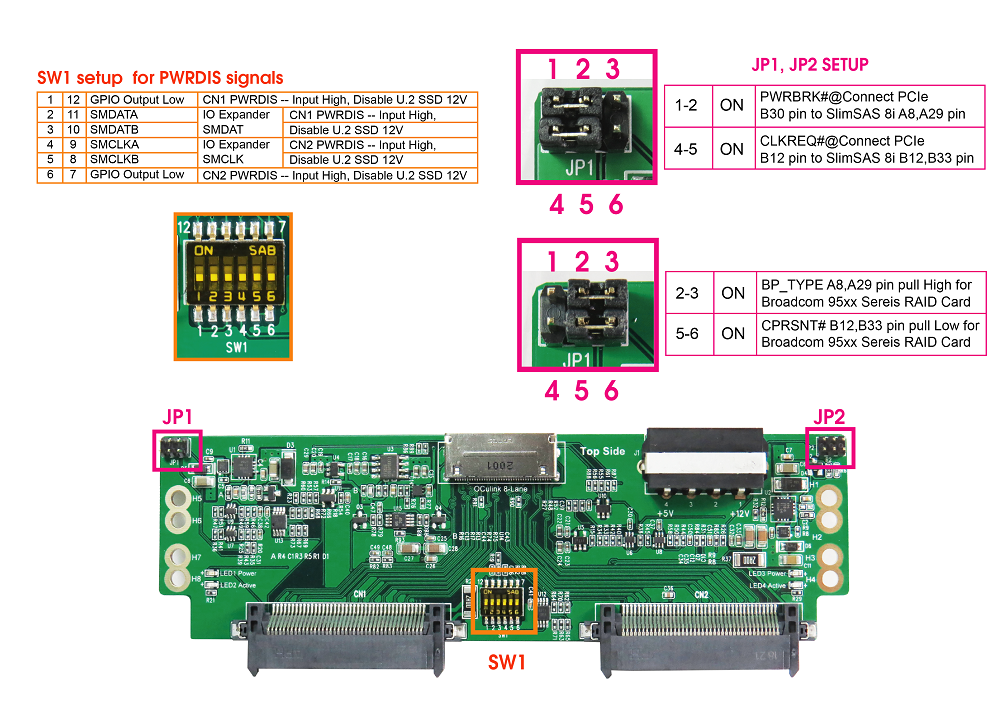

  • Supports U.2 PWRDIS Implementation
  • Built-in SMBus Hot Swappable 2-Wire Bus Buffer

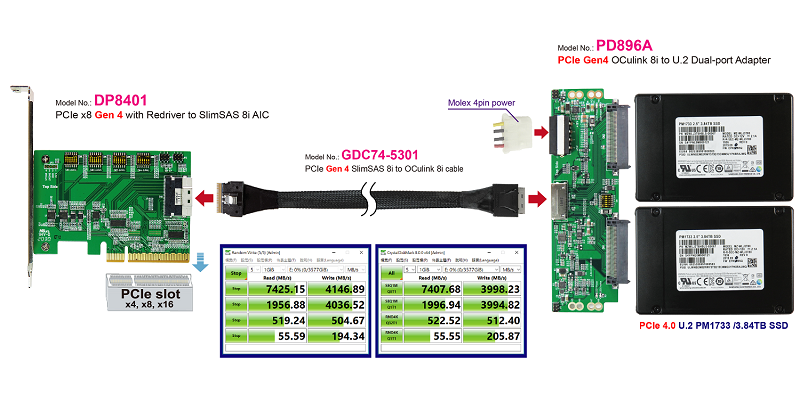

  • Supports SlimSAS 8i BP_TYPEA, BP_TYPEB Pull up for Broadcom 95xx PCIe 4.0 MegaRAID and HBA Tri-Mode Storage Adapters
  • Supports SlimSAS 8i CPRSNTA#, CPRSNTB# Pull Low for Broadcom 95xx PCIe 4.0 MegaRAID and HBA Tri-Mode Storage Adapters
  • LED2, LED4 Green LED on indicates U.2 NVMe SSD power ready
  • LED1, LED3 RED LED Blinking indicates U.2 active status
