specifications

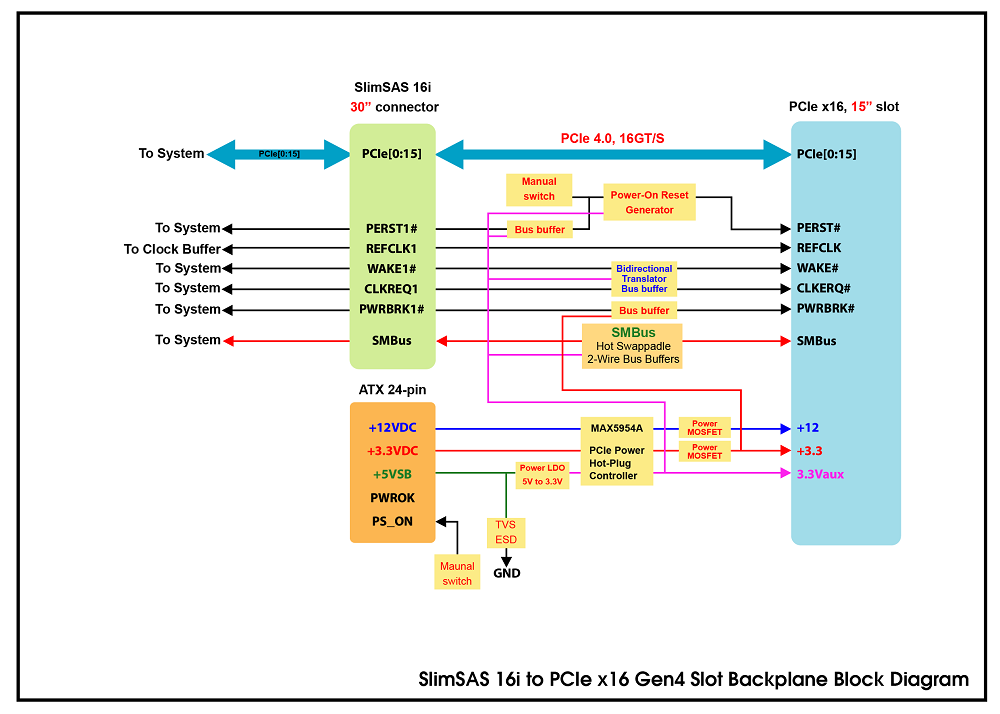

  • SlimSAS 16i to PCIe x16 signals extension
  • Built-in ATX 24-pin Power supply connector
  • ◆ +5VSB Input with Bidirectional TVS(TRANSIENT VOLTAGE SUPPRESSOR)
  • ◆ Manul Switch ON or Jumper Short for ATX 24-pin Power supply ON

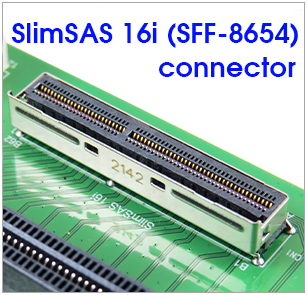

  • Built-in SlimSAS 16i(SFF-8654) with 30 microinches connector
  • Built-in PCIe x16 with 15 microinches of gold on mating end Slot

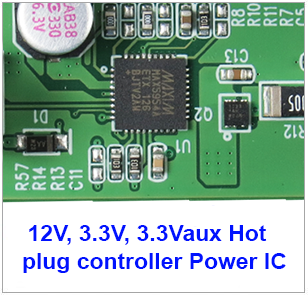

  • Built-in MAX5954 PCI Express Power Hot-Plug Controller
  • ◆ Hot Swaps +12V, +3.3V, and 3.3V Auxiliary Power Rail
  • ◆ Active Current Limiting Protects Against Overcurrent/ Short-Circuit Conditions
  • ◆ Drives two external n-channel MOSFETs to control the +12V and +3.3V main outputs

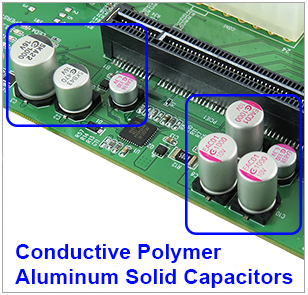

  • Built-in Conductive Polymer Aluminum Solid Capacitors For 75W Slot Power Supply Rail Requirements as follows:
  • ◆ +12V Voltage Supply Current Capacitive Load : 5.5 A Current, 1470 µF
  • ◆ +3.3 Voltage Supply Current Capacitive Load : 3 A Current, 3300 µF
  • ◆ 3.3aux Voltage Supply Current Capacitive Load : 375 mA Current, 330 µF
  • Built-in SMBus Hot Swappable 2-Wire Bus Buffer
  • Built-in PCIe PERST# Bus Buffer and manul switch
  • Built-in PCIe WAKE# Bidirectional Translator Bus Buffer
  • Built-in PCIe CLKREQ# Bidirectional Translator Bus Buffer
  • Built-in PCIe PWRBRK# Bus Buffer
  • LED1 Green On indicates +12V power ready for PCIe x16 Slot
  • LED2 Green On indicates +3.3V power ready for PCIe x16 Slot
  • LED3 Green On indicates 3.3Vaux power ready for PCIe x16 Slot
  • LED4 Red On to OFF indicates PERST# Normal (Function intentionally inverted)
  •
