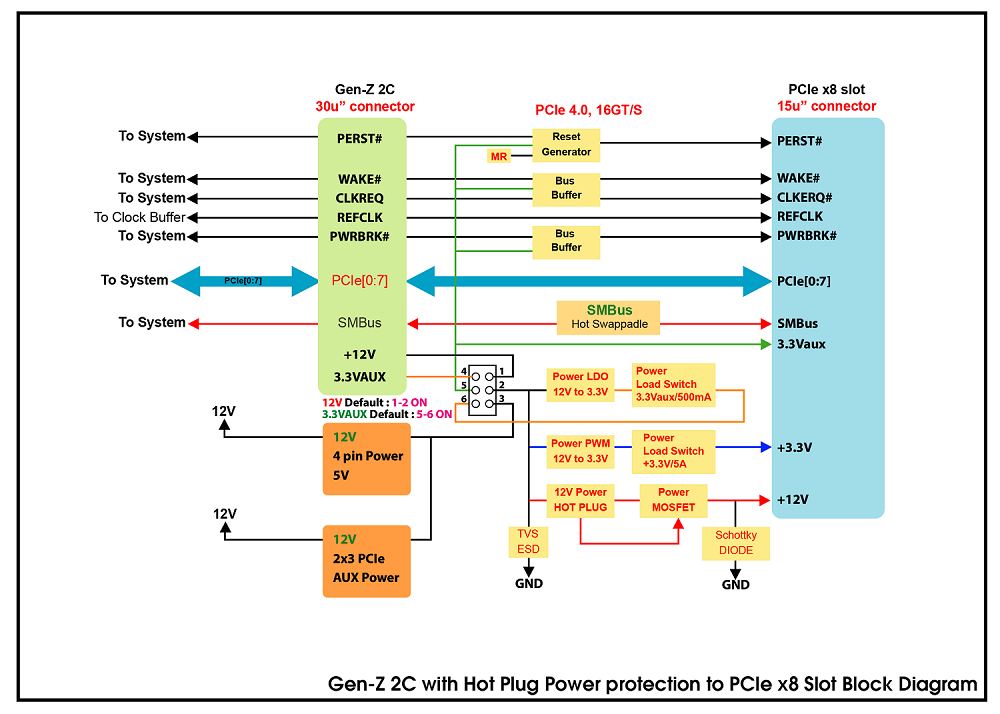

- Gen-Z 2C(EDSFF) to PCIe x8 convert
- Built-in Gen-Z 2C, 30u”connector
- Built-in PCIe x8, 15u”Slot
- Built-in PCIe PERST# Bus Buffer
- Support PCIe PERST# manual reset & generator
- Built-in PCIe WAKE# Bus Buffer
- Built-in PCIe CLKREQ# Bus Buffer
- Built-in SMBus Hot Swappable 2-Wire Bus Buffer
- Supports I/O card insertion into a live PCIe Solt without corruption of the data and clock busses
- Built-in +12V Hot Plug Power with eFuse protection for PCIe +12V
- ◆ Programmable Current Limit: 6.5A
- ◆ Programmable Inrush Current Slew Rate
- ◆ Thermal shutdown protection and fault alert
- ◆ Back-to-Back (B2B) FET Operation
- Built-in 12V input with 400W TVS(Transient Voltage Suppressor) ESD protection
- Built-in 12V output with 30-V, N channel NexFET power MOSFET, 32 m ohm
- Built-in 12V output with Schottky Barrier Power Rectifier
- PWM synchronous 12V to 3.3V buck converter Power
- ◆ 4A maximum output current
- ◆ Over Current Protection
- ◆ Under Voltage Protection
- ◆ Under voltage lock out protection (UVLO) monitors
- ◆ Thermal shutdown protection
- ◆ ESD Human Body Mode(HBM)/2KV
- Built-in 3.3V Power Load Switch for PCIe +3.3V
- 12V to 3.3V LDO buck converter Power
- Built-in 3.3V Power Load Switch for PCIe 3.3Vaux
- LED1 PCIe +12V power ready
- LED2 PCIe +3.3V power ready
- LED3 PCIe 3.3Vaux power ready
