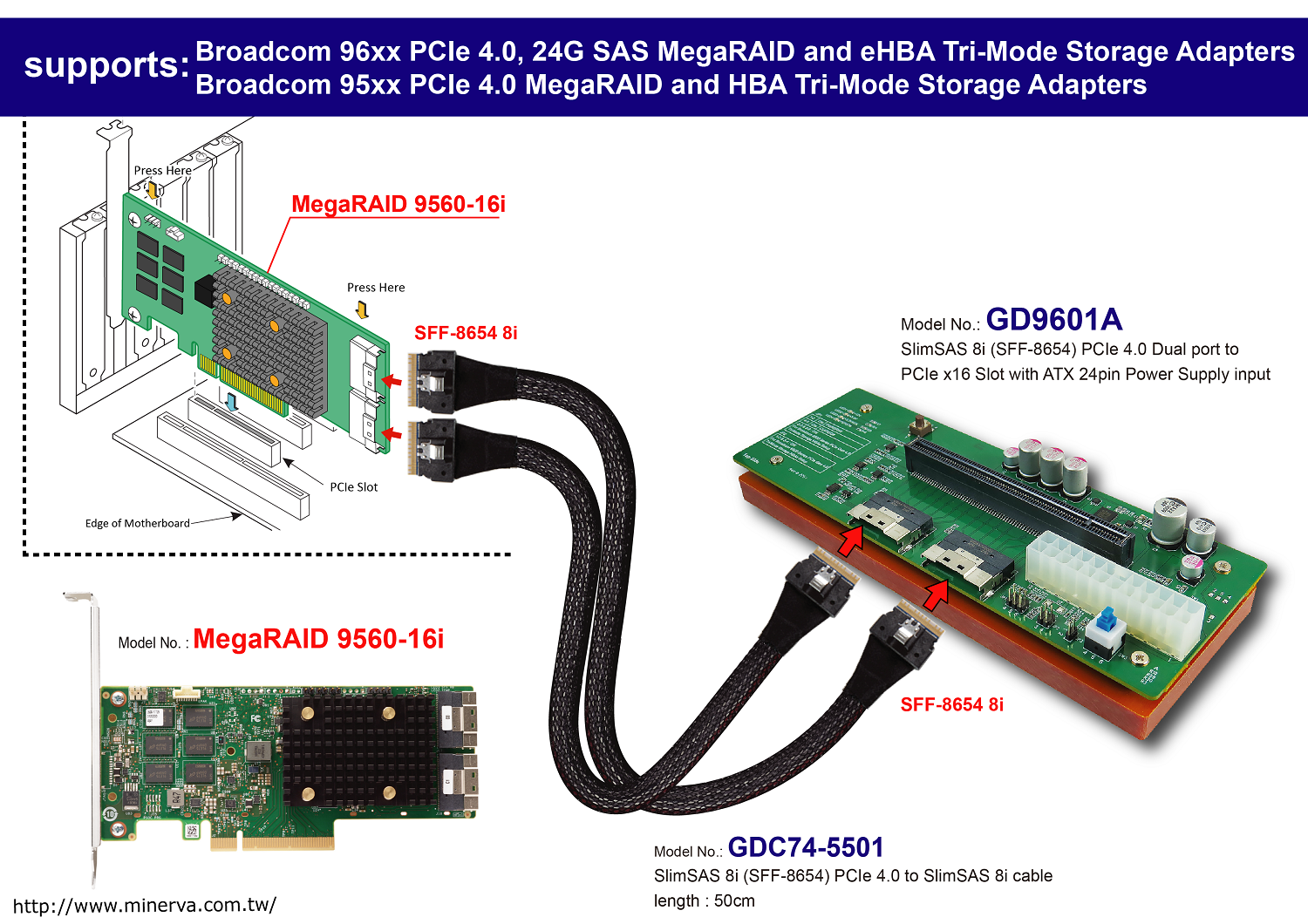

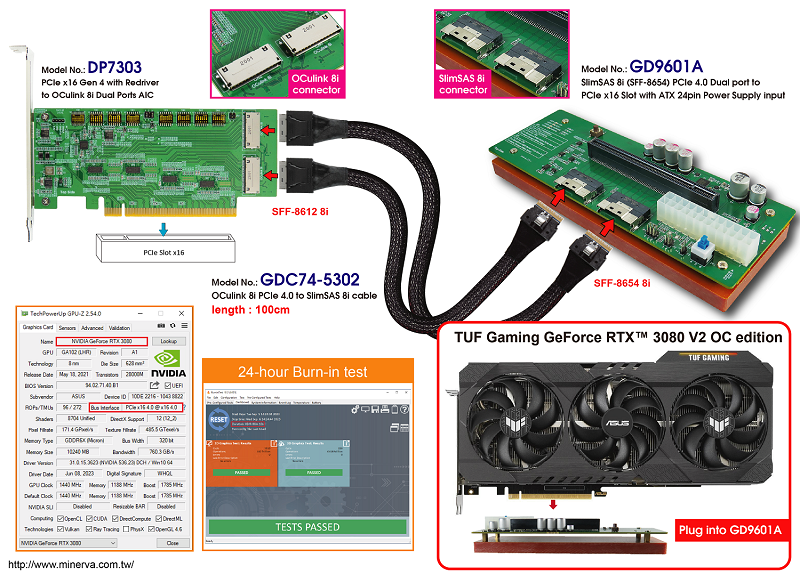

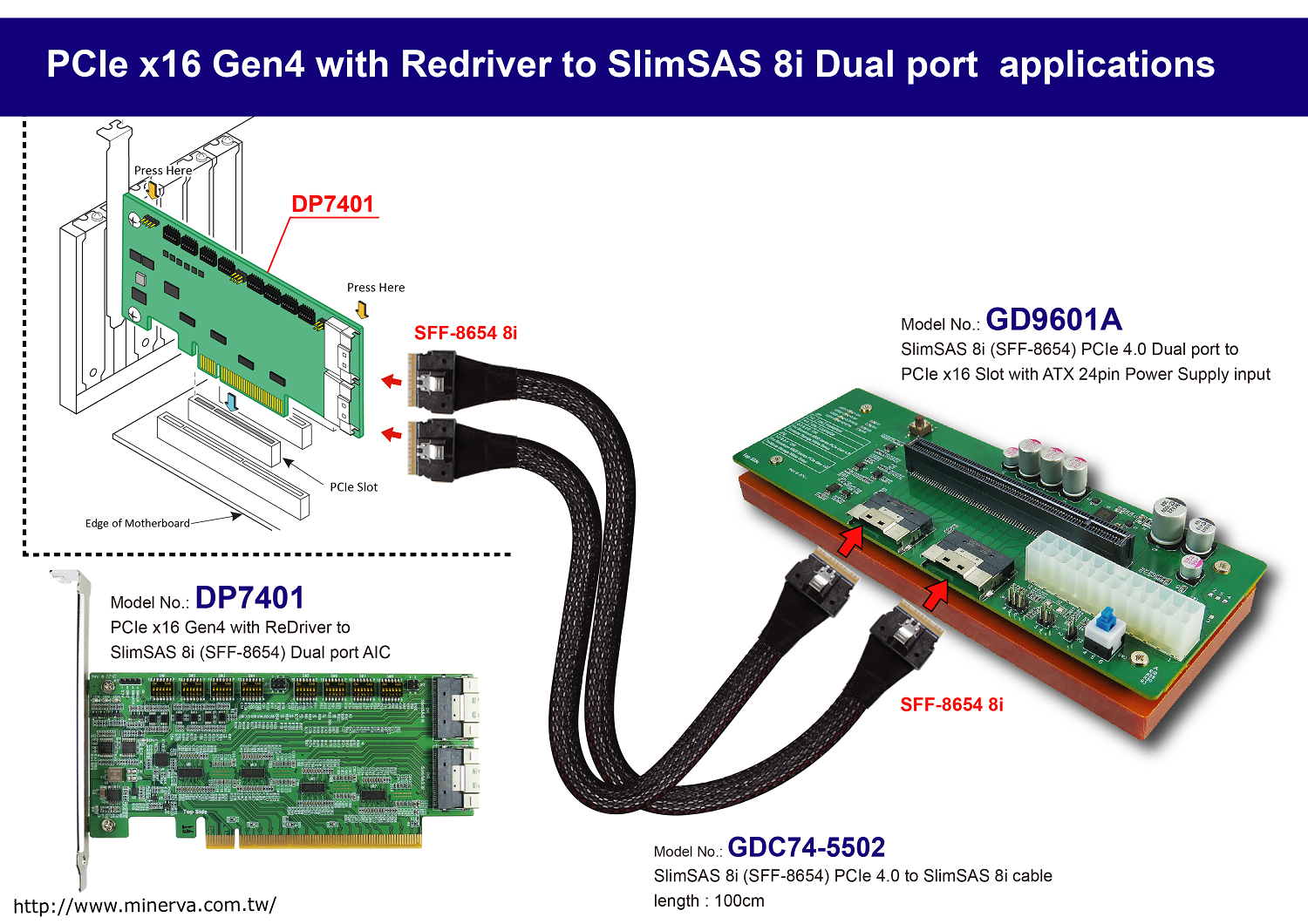

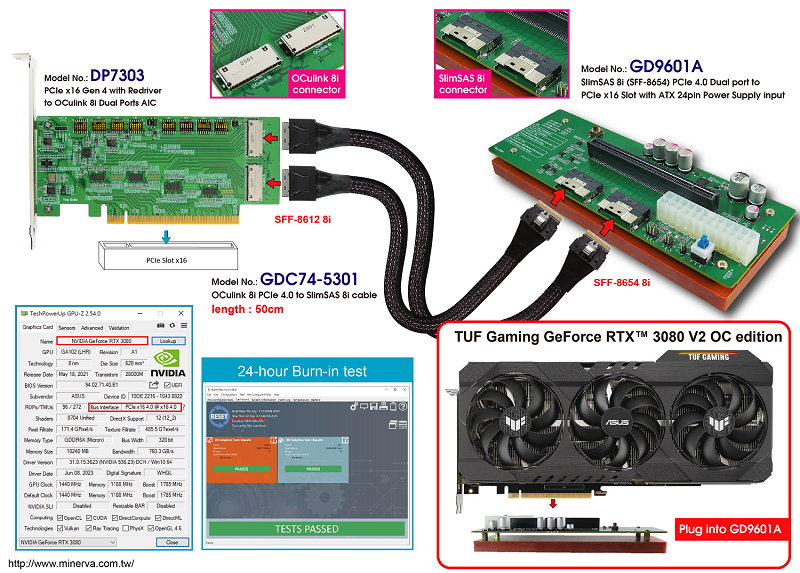

SlimSAS 8i dual port to PCIe x16 signals extension
Built-in ATX 24-pin Power supply connector
◆ +5VSB Input with Bidirectional TVS(TRANSIENT VOLTAGE SUPPRESSOR)

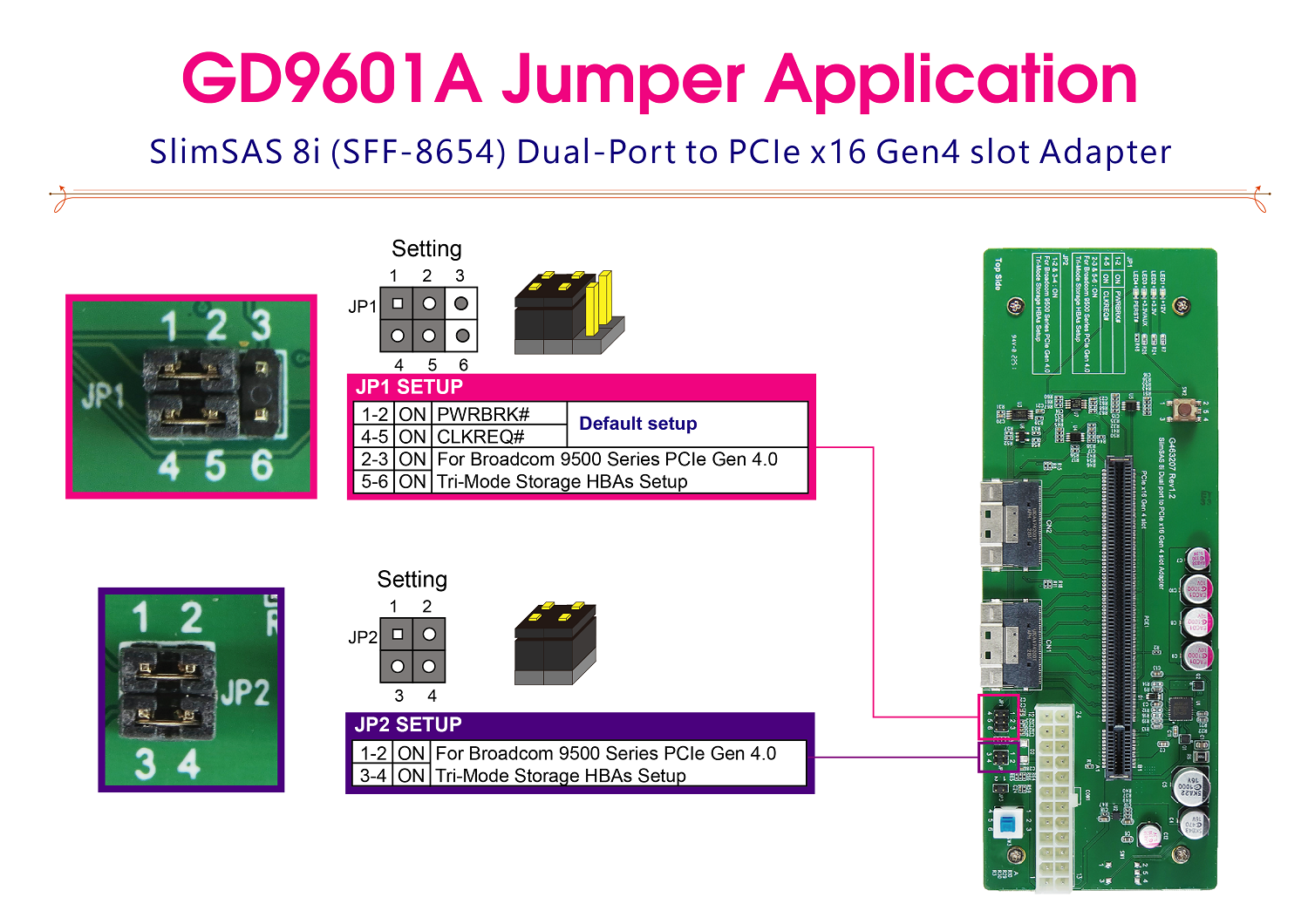

◆ Manul Switch ON or Jumper Short for ATX 24-pin Power supply ON

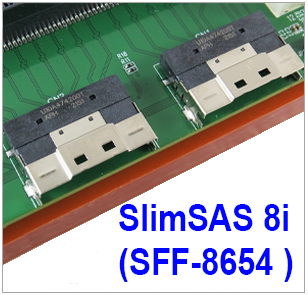

Built-in SlimSAS 8i(SFF-8654) with 30 microinches connector 2 pcs
Built-in PCIe x16 with 15 microinches of gold on mating end Slot

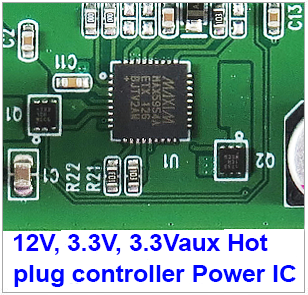

Built-in MAX5954A PCI Express Power Hot-Plug Controller
◆ Hot Swaps +12V, +3.3V, and 3.3V Auxiliary Power Rail
◆ Active Current Limiting Protects Against Overcurrent/ Short-Circuit Conditions

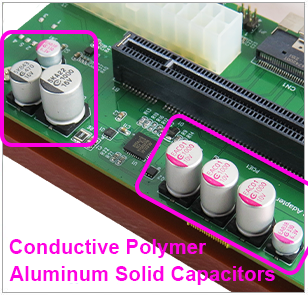

Built-in Conductive Polymer Aluminum Solid Capacitors For 75W PCIe x16 Slot Power Supply Rail Requirements as follows :
◆ +12V Voltage Supply Current Capacitive Load : 5.5 A Current, 1470 µF
◆ +3.3 Voltage Supply Current Capacitive Load : 3 A Current, 3300 µF
◆ 3.3aux Voltage Supply Current Capacitive Load : 375 mA Current, 330 µF

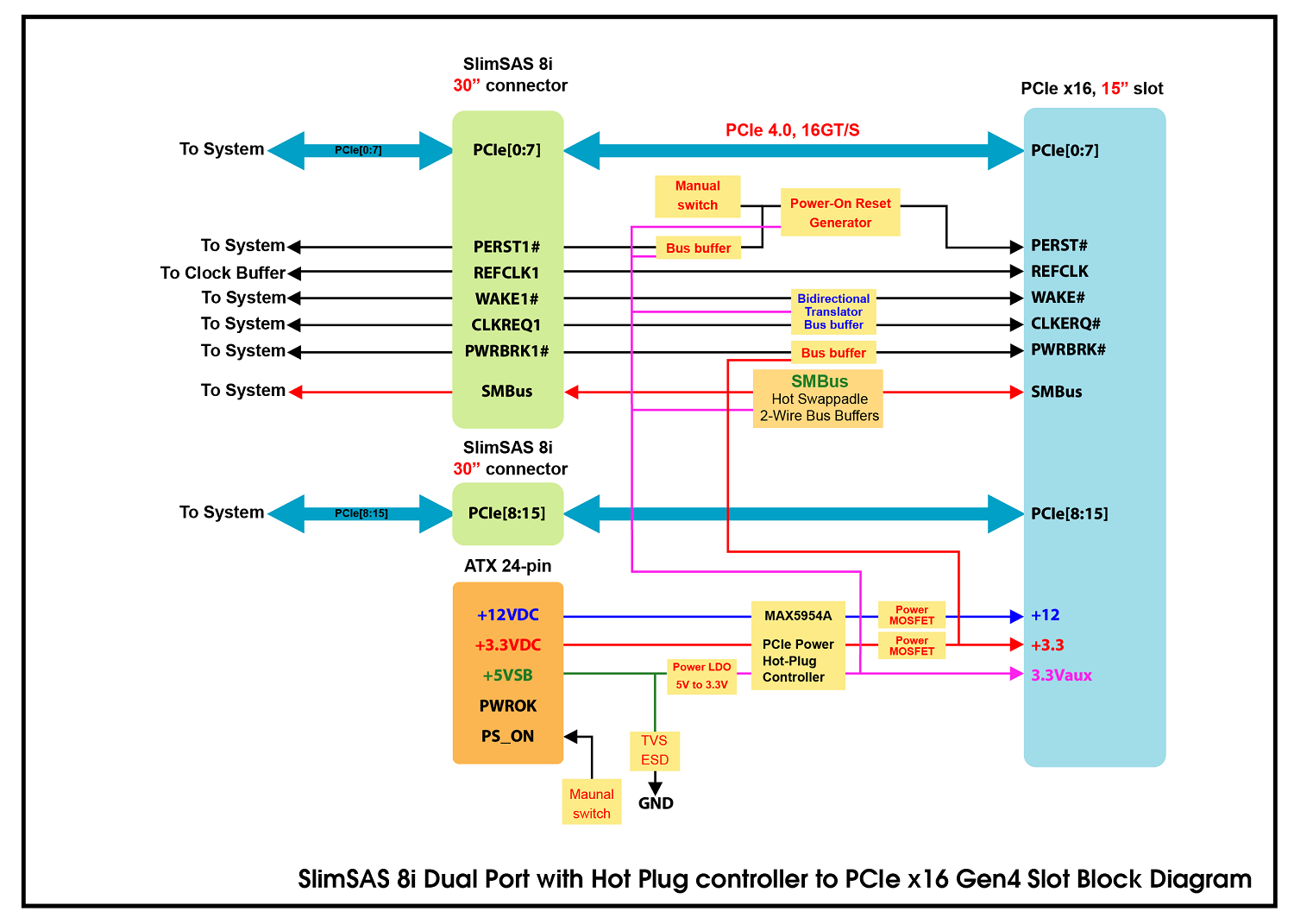

Built-in SMBus Hot Swappable 2-Wire Bus Buffer
Built-in PCIe PERST# Bus Buffer and manul switch
Built-in PCIe WAKE# Bidirectional Translator Bus Buffer
Built-in PCIe CLKREQ# Bidirectional Translator Bus Buffer
Built-in PCIe PWRBRK# Bus Buffer
LED1 Green On indicates +12V power ready for PCIe x16 Slot
LED2 Green On indicates +3.3V power ready for PCIe x16 Slot
LED3 Green On indicates 3.3Vaux power ready for PCIe x16 Slot
LED4 Green On to OFF indicates PERST# Normal (Function intentionally inverted)
