Datasheet

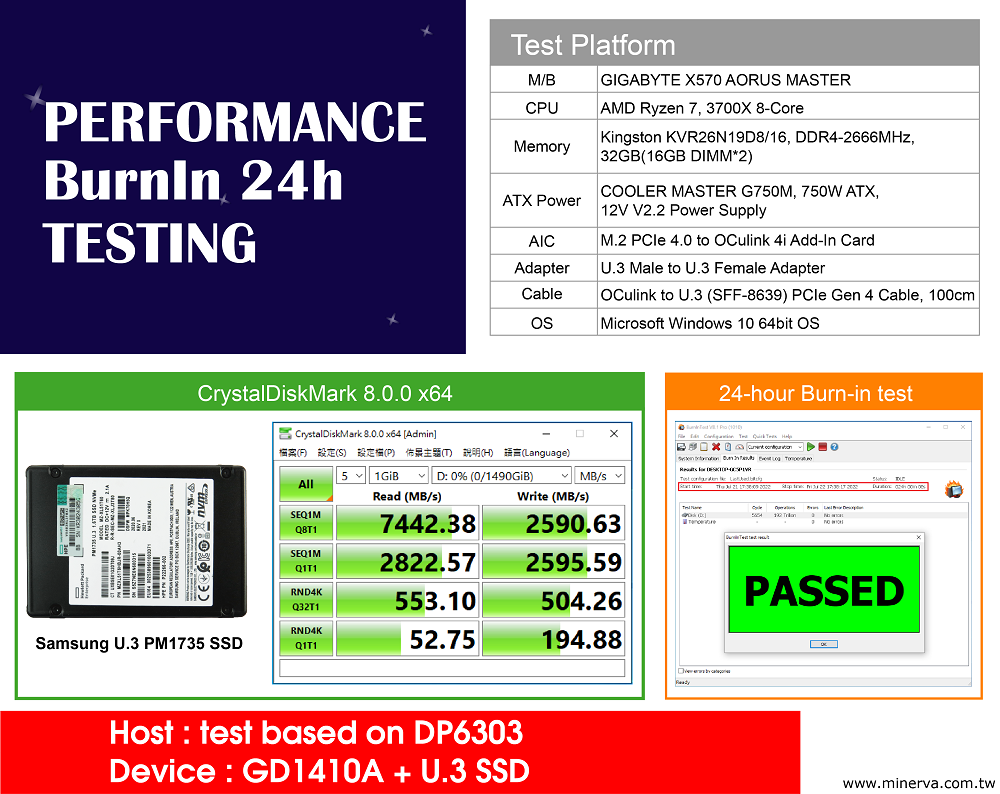

Test report
2D drawing

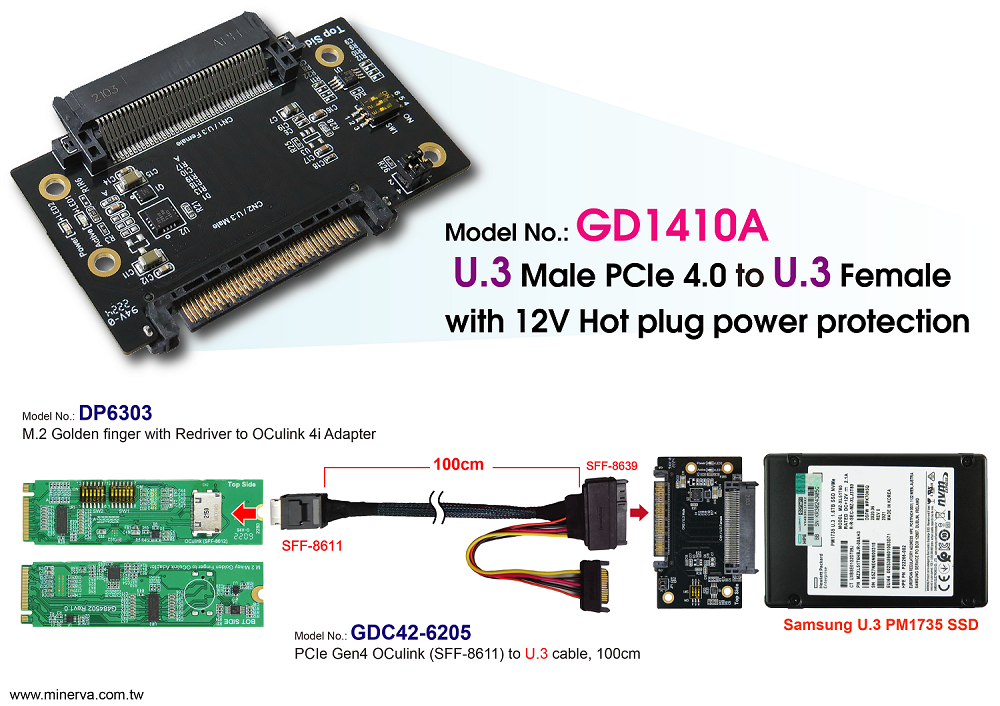

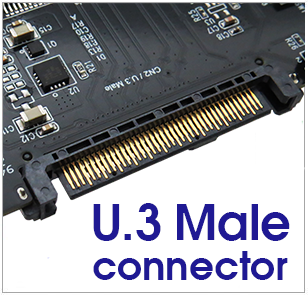

- Built-in SFF-8639 Male connector

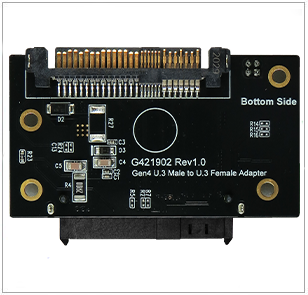

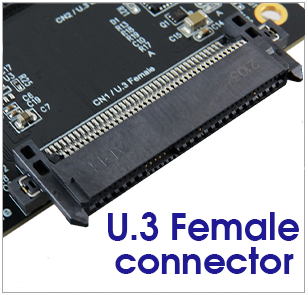

- Built-in SFF-8639 Female connector
- Built-in 12V Hot Plug Power with eFuse protection for U.3 NVMe SSD
- ◆ Programmable Current Limit: 6.5A
- ◆ Programmable Inrush Current Slew Rate
- ◆ Thermal shutdown protection and fault alert
- ◆ Back-to-Back (B2B) FET Operation
- Built-in 12V input with 400W TVS(TRANSIENT VOLTAGE SUPPRESSOR) ESD protection
- Built-in 12V output with 30-V, N channel NexFET power MOSFET, 32 m ohm
- Built-in 12V output with SCHOTTKY BARRIER Power Rectifier
- Built-in 3.3VAUX Load Switch with controlled turn on, can support a maximun continuous current of 500mA

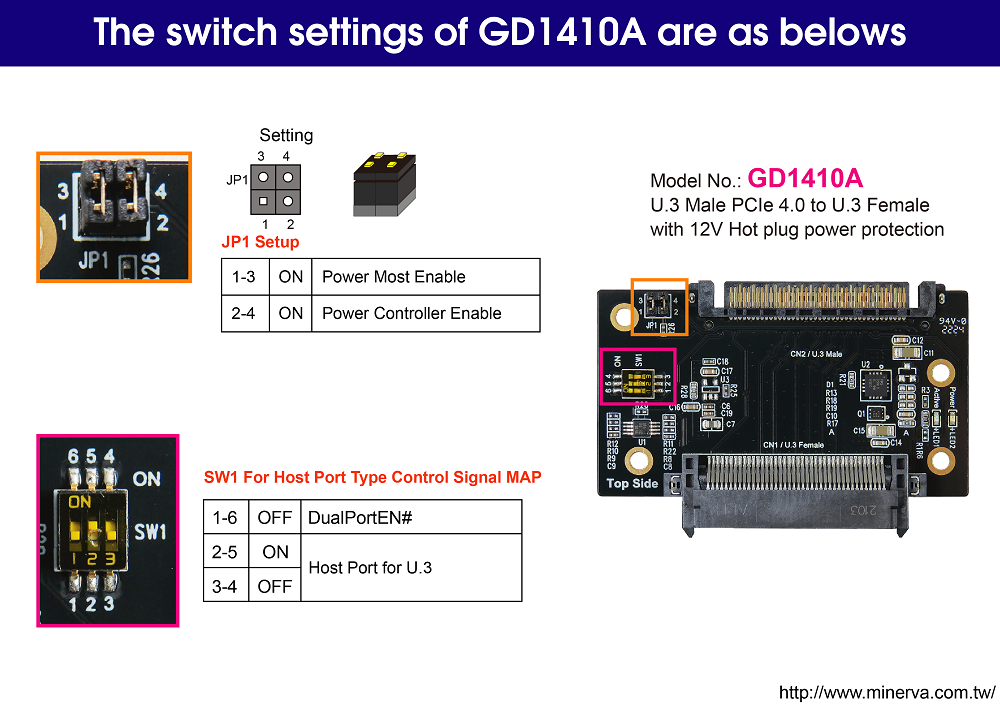

- Supports CLKREQ#, WAKE#, PWRDIS
- Supports SMBus providing hot swap & bidirectional buffering
- LED1 Red LED Blinking indicates SSD active status
- LED2 Green LED on indicates U.3 SSD power ready
