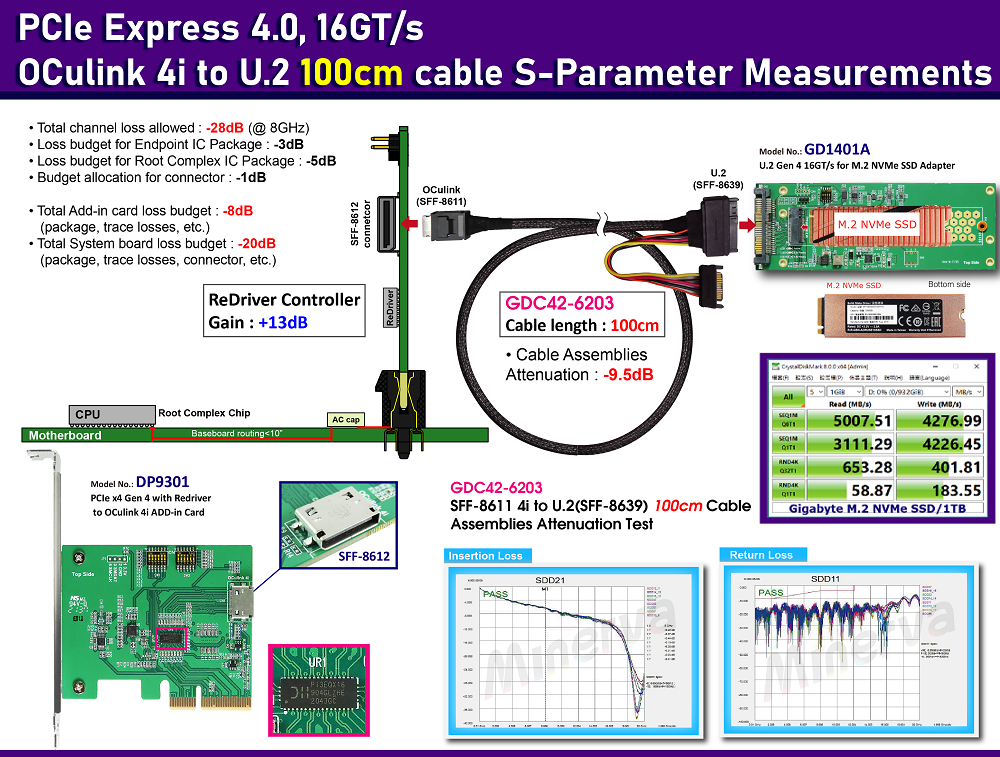

DP9301(Diodes)+GDC42-6203+GD1401A Test report

PDF

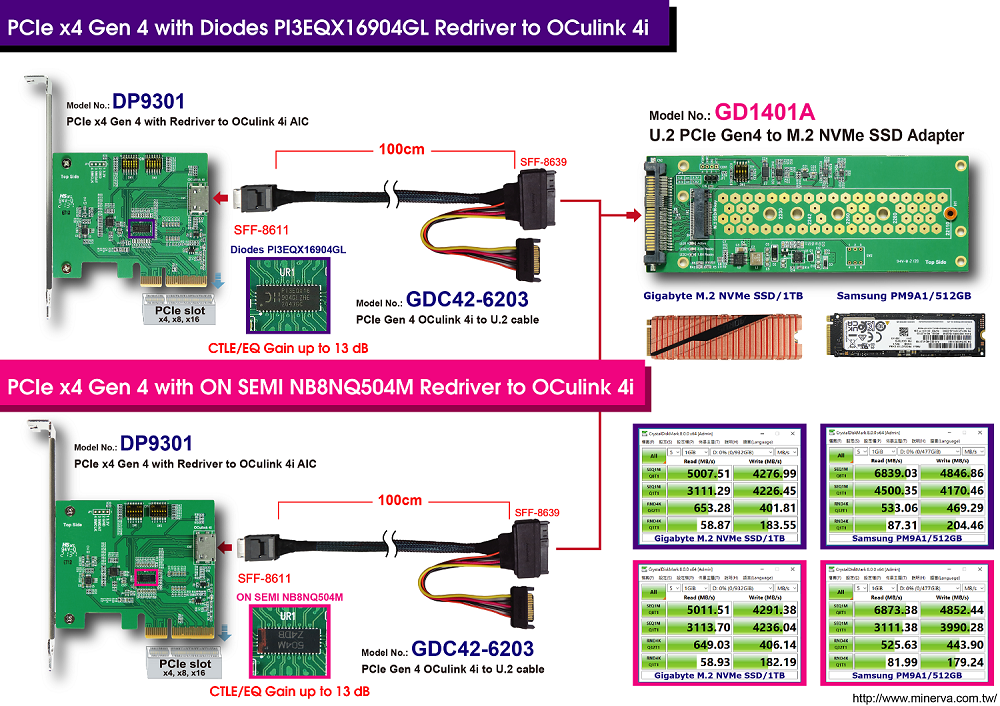

DP9301(Diodes)+GDC42-6203+GD1401A+PM9A1 Test report

PDF

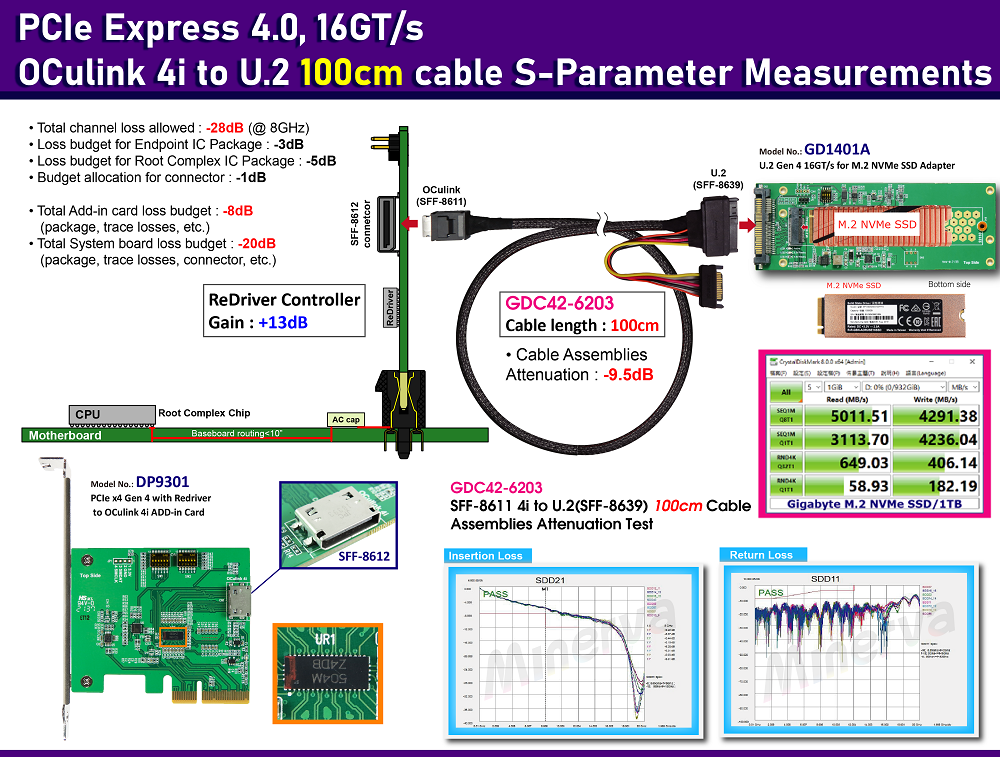

DP9301(Z4DB)+GDC42-6203+GD1401A Test report

PDF

DP9301(Z4DB)+GDC42-6203+GD1401A+PM9A1 Test report

PDF

GD1401A-2D drawing











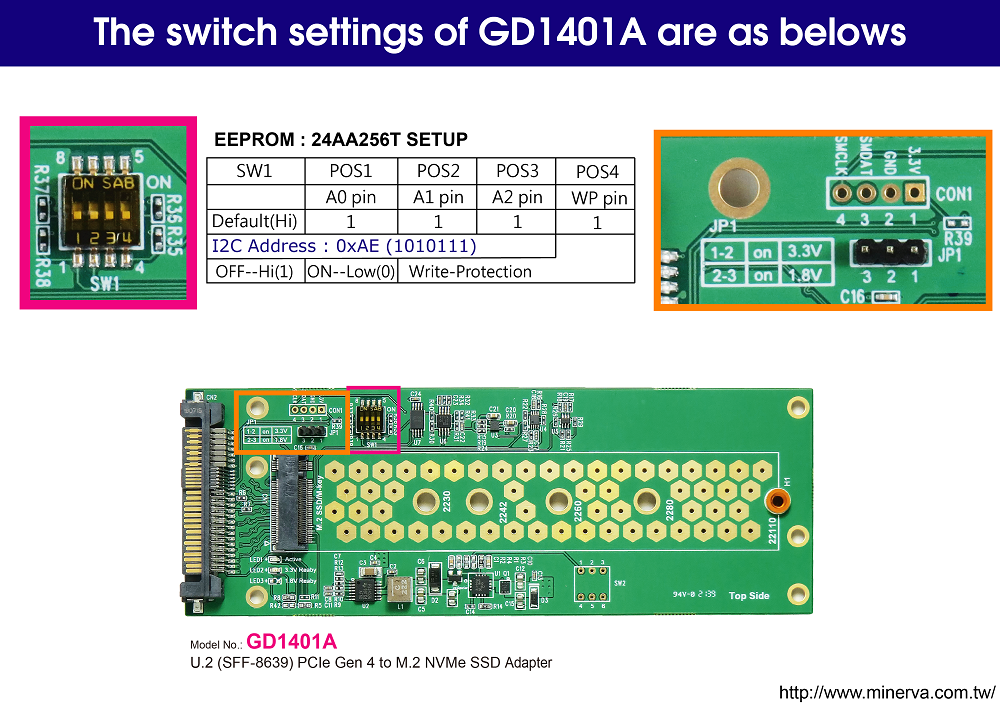

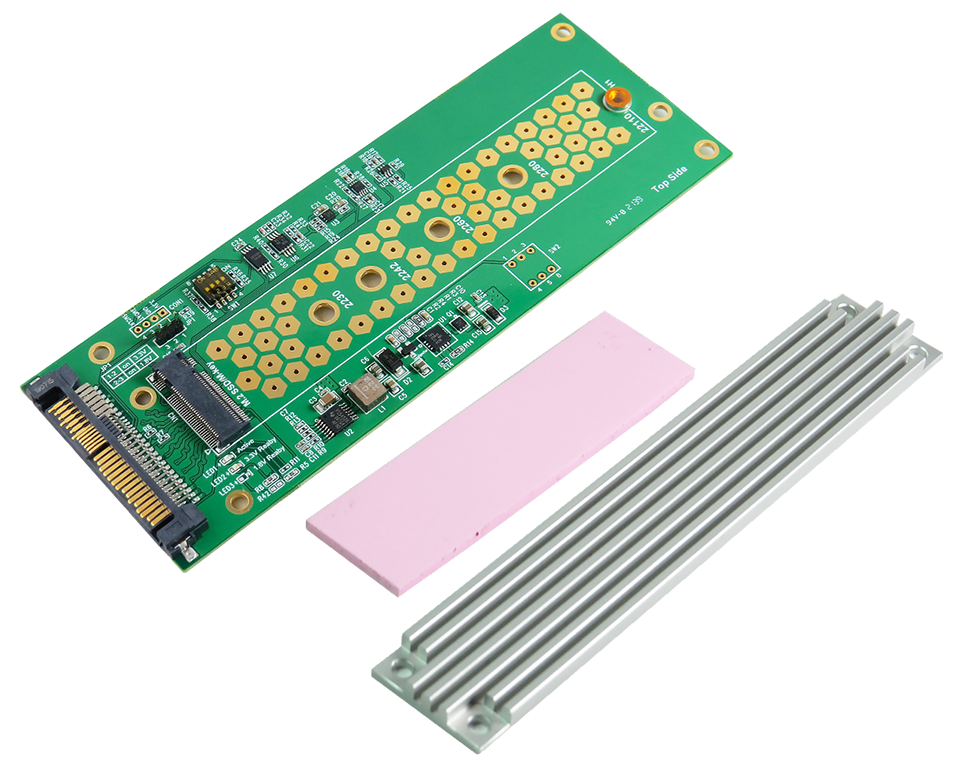

specifications

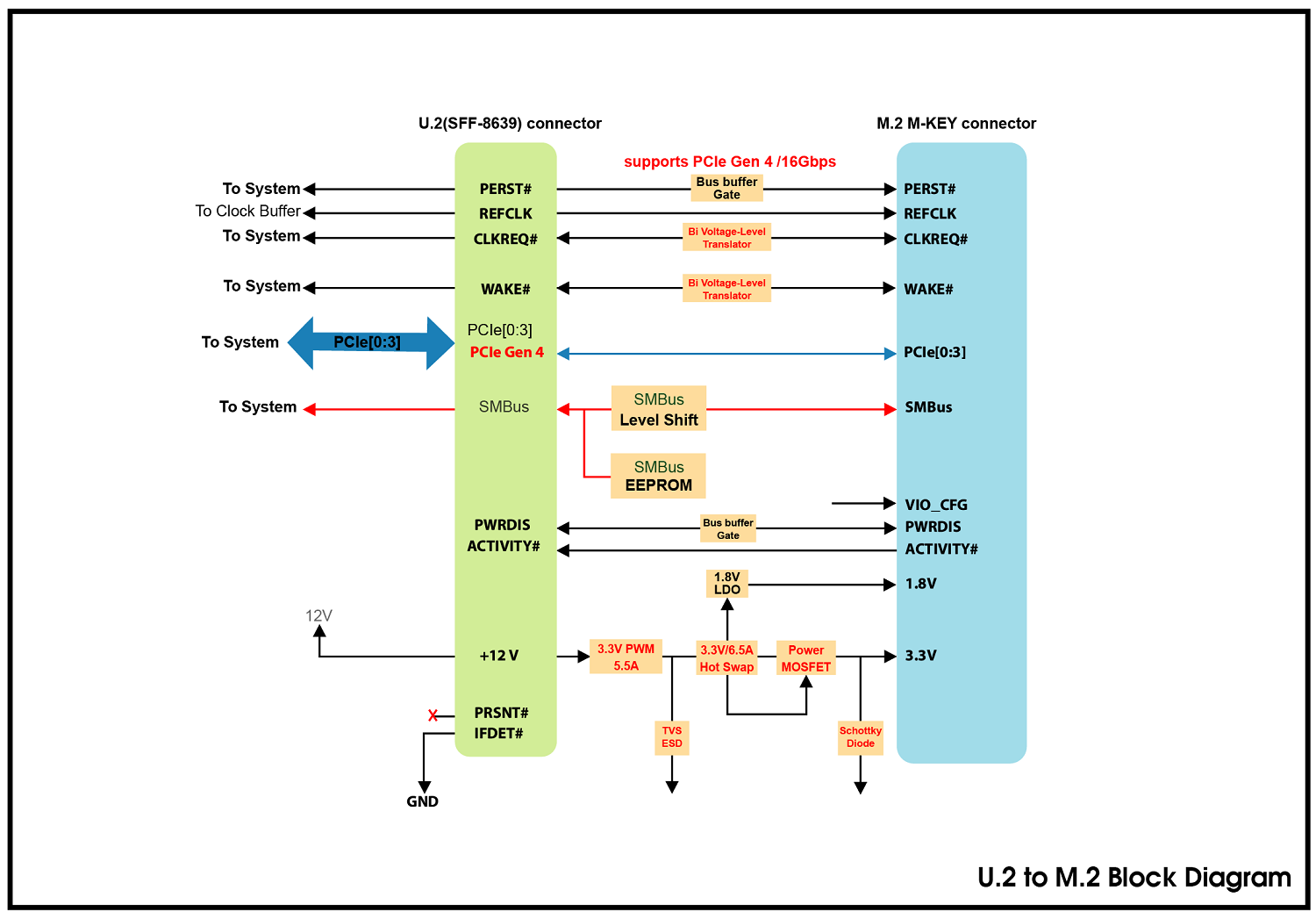

  • M.2 NVMe to U.2(SFF-8639) convert
  • Build in SFF-8639 connector, pin-out defined by SFF-9402 Rev1.1
  • PWM 12V to 3.3V synchronous buck converter Power for M.2 NVMe SSD
  • ◆ 5.5A maximum output current
  • ◆ Output Discharge Control
  • ◆ The output overcurrent protection(OCP)
  • ◆ Uundervoltage lock out protection(UVLO) monitor
  • ◆ Over/Under Vlotage Protection
  • ◆ Thermal shutdown protection
  • ◆ ESD HBM (Human Body Mode)/500V
  • Built-in 3.3V Hotswap Power controller with programmable Inrush Slew rate, support a maximun continuous current of 6.5A for M.2 SSD protection
  • Supports M.2 3.3V&1.8V supply
  • Supports M.2 VIO_CFG Signal
  • Supports M.2 PERST# Signal 3.3V and 1.8V Switching
  • Supports M.2 CLKREQ# Signal 3.3V and 1.8V Switching
  • Supports M.2 WAKE# Signal 3.3V and 1.8V Switching
  • Supports PWRDIS Signal from U.2 pin to M.2 pin
  • Supports M.2 /1.8V to U.2/3.3V SMBCLK, SMBDATA Level Shift
  • Supports M.2 /1.8V to U.2 /3.3V SMBCLK, SMBDATA isolated, repeater
  • Built-in SMBUS EEPROM 64KB
  • D1 Green LED on indicates M.2 NVMe SSD power ready
  • D2 RED LED Blinking indicates M.2 active status
