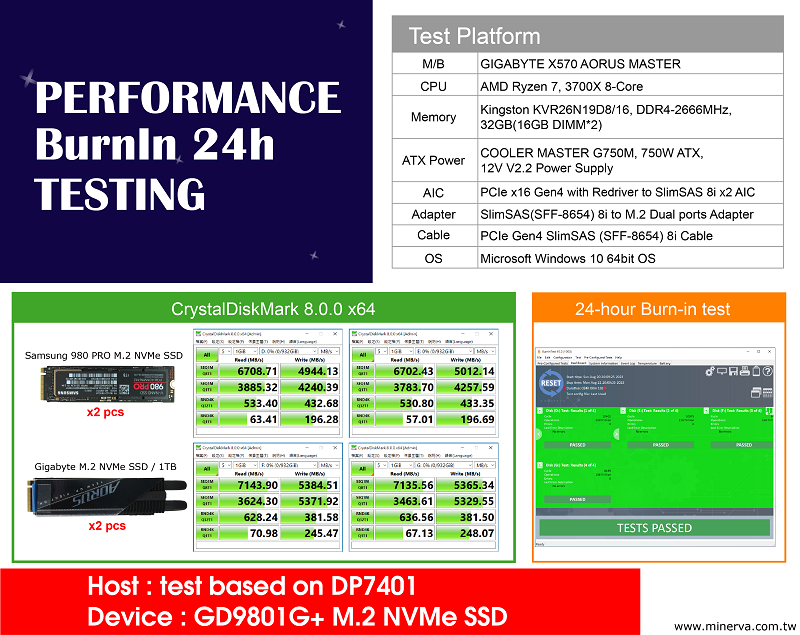

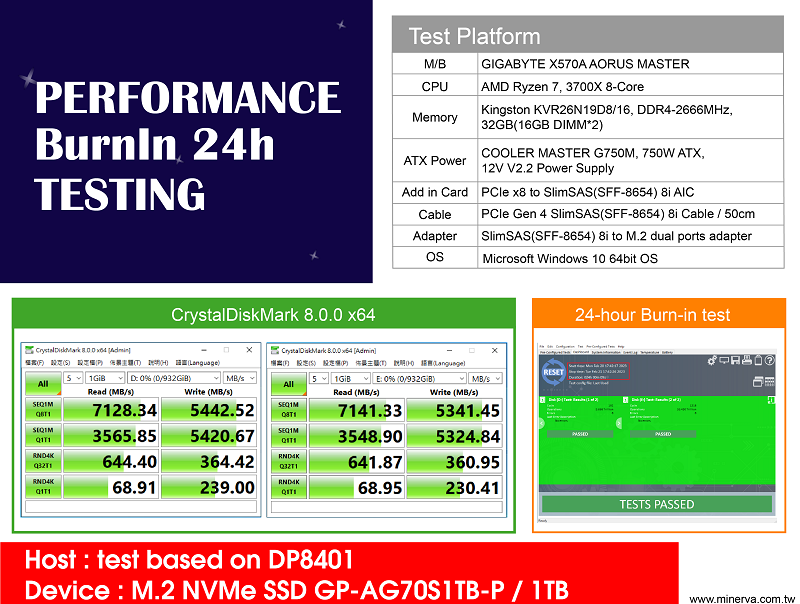

Test report

PDF

Test report for SlimSAS 8i Cable 50cm

PDF

Test report for SlimSAS 8i Cable 100cm

PDF

GD9801G-2D drawing

PDF

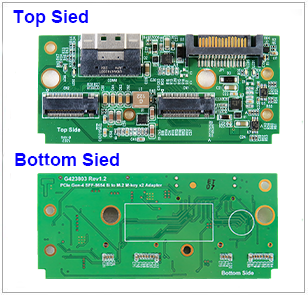

PCB-2D drawing









specifications

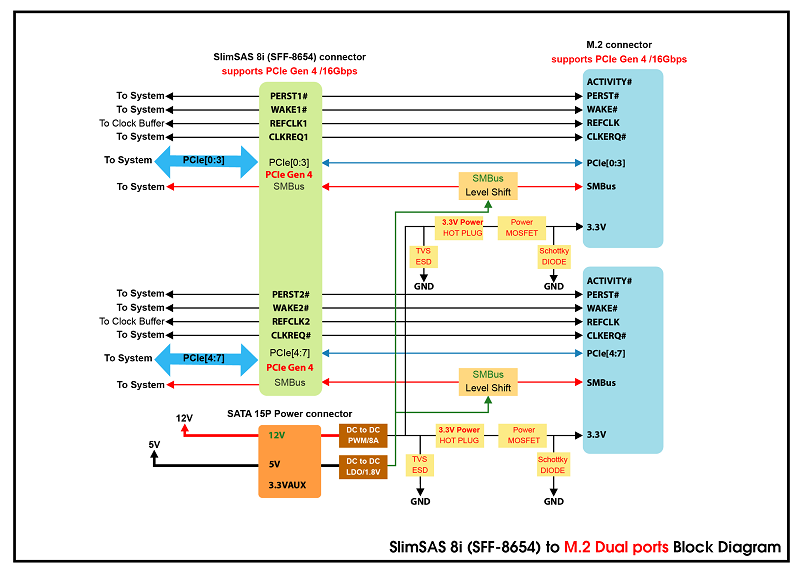

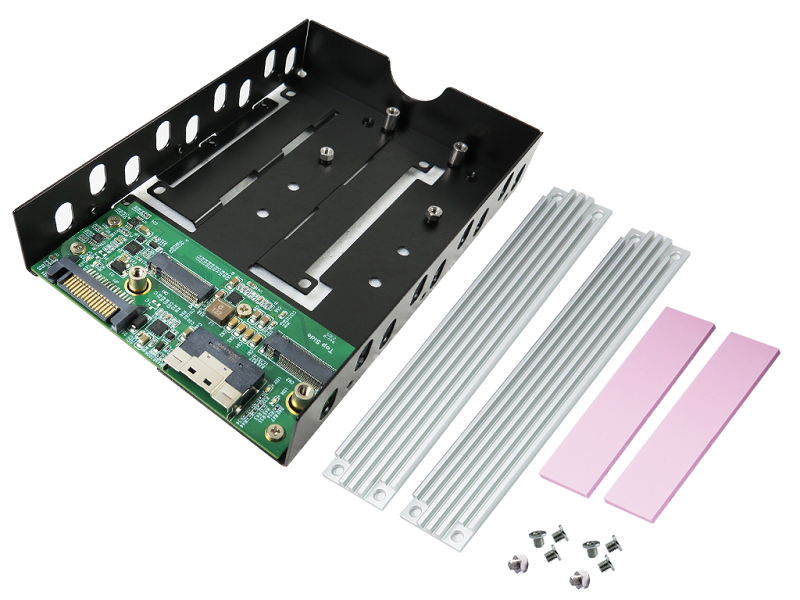

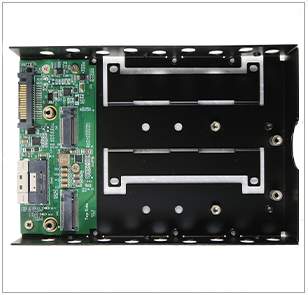

  • M.2 dual port to SlimSAS 8i(SFF-8654) convert

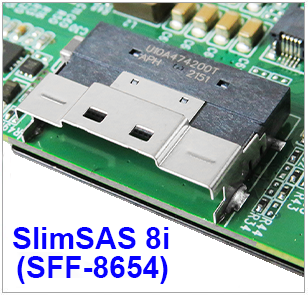

  • Built-in SFF-8654 8i connector, pin-out defined by SFF-9402 Rev1.1
  • Built-in two M.2 M-key connector
  • PWM synchronous buck converter Power for M.2 dual ports SSD
  • ◆ 8A maximum output current
  • ◆ Over Current Protection
  • ◆ Under Voltage Protection
  • ◆ Under voltage lock out protection (UVLO) monitors
  • ◆ Thermal shutdown protection
  • ◆ ESD Human Body Mode(HBM)/2KV
  • Built-in two 3.3V Hot Plug Power with eFuse protection for M.2 dual ports
  • ◆ Programmable Current Limit: 6.5A
  • ◆ Programmable Inrush Current Slew Rate
  • ◆ Thermal shutdown protection and fault alert
  • ◆ Back-to-Back (B2B) FET Operation
  • Supports M.2 to PCIe CLKREQ#, WAKE#
  • Supports M.2 /1.8V to PCIe/3.3V SMB_CLK, SMBDATA Level Shift
  • Supports M.2 /1.8V to PCIe /3.3V SMB_CLK, SMB_DATA isolated, repeater
  • LED5, LED6 Green LED on indicates M.2 NVMe SSD power ready
  • LED1, LED2 RED LED Blinking indicates M.2 active status

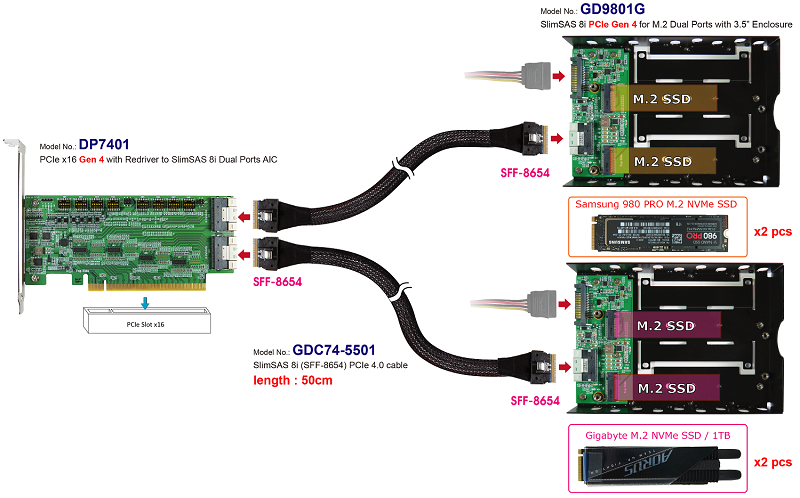

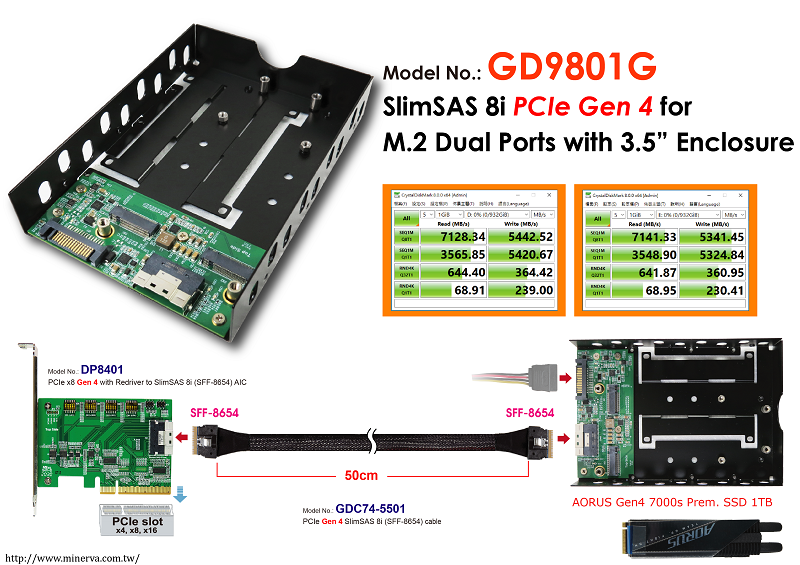

Application
