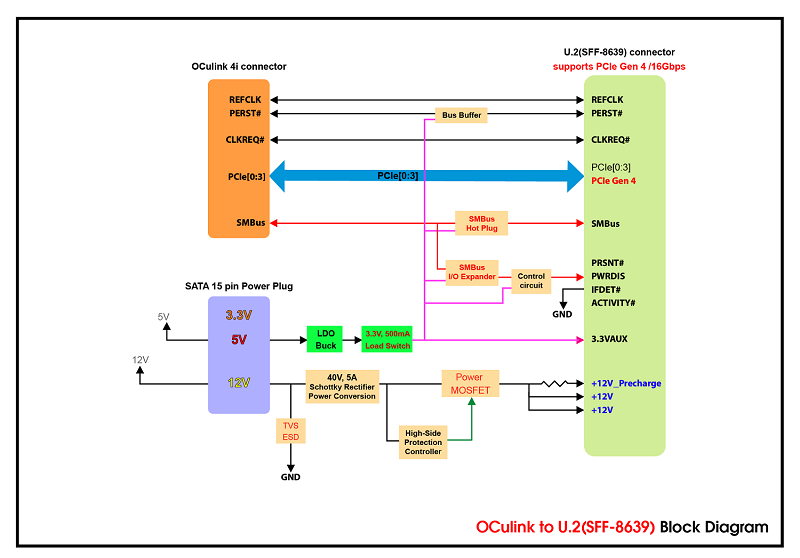

U.2(SFF-8639) to SFF-8612 OCulink convert
Build in SATA 15-pin power connector

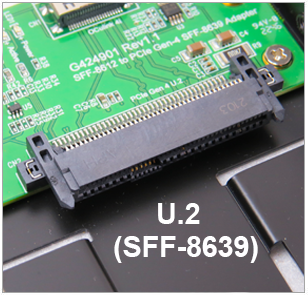

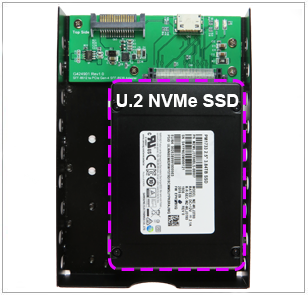

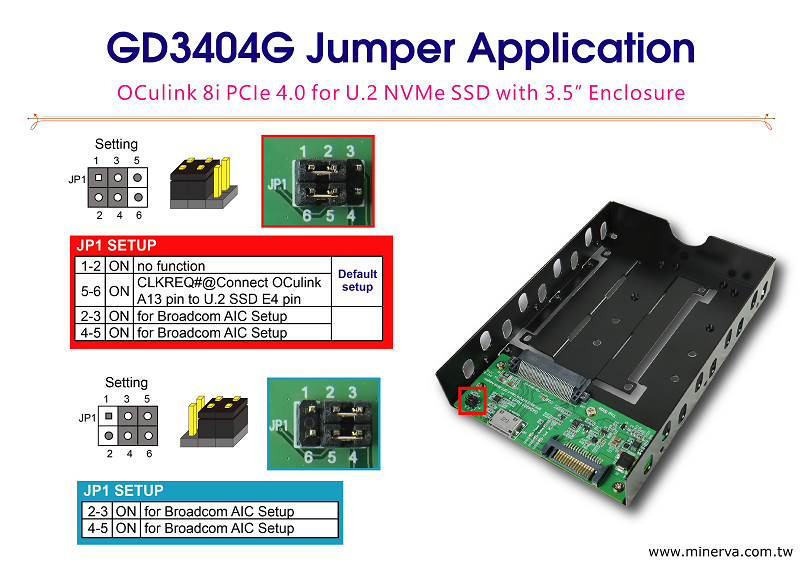

Build in SFF-8639 connector, pin-out defined by SFF-9402 Rev1.1

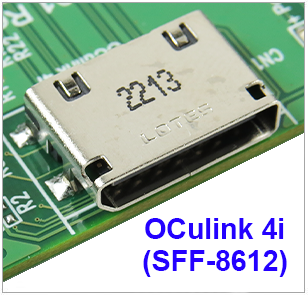

Build in SFF-8612 connector, pin-out defined by SFF-9402 Rev1.1
Oculink 4i to U.2 NVMe supports SMBus Hot Plug
Supports U.2 PWRDIS function
Input +12V with 40V, 5A Schottky barrier rectifiers
Input +12V High-Side Protection Controller with Charge pump gate driver for external N-Channel MOSFET
Input +12V Overvoltage Protection
Input +12V Undervoltage Lockout Protection
Input 3.3VAUX with Load Switch Protection
LED 1 Green LED on indicates SSD power ready
LED 2 Red LED Blinking indicates SSD active status
LED 3 Green LED on indicates +12V power Fault
