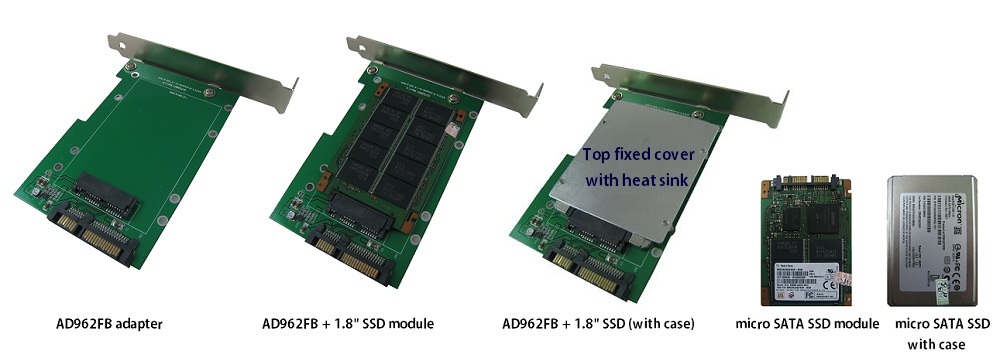

AD962FB is SATA Adapter for Micro SATA, it is designed to provide a set of standard 7 + 15pin SATA connector on the host connection, and a set of Micro SATA 7 + 9pin connector on SSD storage devices connection.  When assembled it, it can operate in a variety of operating systems.  Such as DOS, Windows 95, 98, XP, 2000, Vista, Win 7, Linux, Unix, and so on.

AD962FB adapter is allowed to install Micro SATA SSD as system disk, and boot the operate system directly, without having to install any drivers, but does not affect the execution speed of the SSD storage.

• Fully compliant with SATA revision 3.0
•  SFF-8144 Specification,1.8 inch with Micro SATA connector
  54 x 78.5 x 5mm(H) Form Factor SSD & HDD
  54 x 78.5 x 8mm(H) Form Factor SSD & HDD

• PCI Express Card Electromechanical Specification Revision 1.1
• data transfer rate: 6 Gb/s bandwidth

The adapter connects to the Host PC in the same way that a 2.5 SFF SSD drive is connected using a SATA cable. It may be used in any application where a SFF SSD drive may be used:

1. desk-top PC

2. Internet Appliances

3. Kiosks

4. Industrial Computers

5. Routers

6. Firewalls

Support Micro SATA SSD & HDD Storage Device:

※ Intel 1.8-Inch X18-M Micro SATA SSD and compatible Storage Device

※ Samsung 1.8-Inch case Micro SATA SSD,1.8-Inch module Micro SATA SSD, 1.8-Inch Micro SATA Hard Drive and compatible Storage Device

※ Toshiba 1.8-Inch case Micro SATA SSD,1.8-Inch module Micro SATA SSD, 1.8-Inch Micro SATA Hard Drive and compatible Storage Device

Datasheet Download :

AD962FB.PDF

AD962FB (繁體中文).PDF

AD962FB (簡體中文).PDF

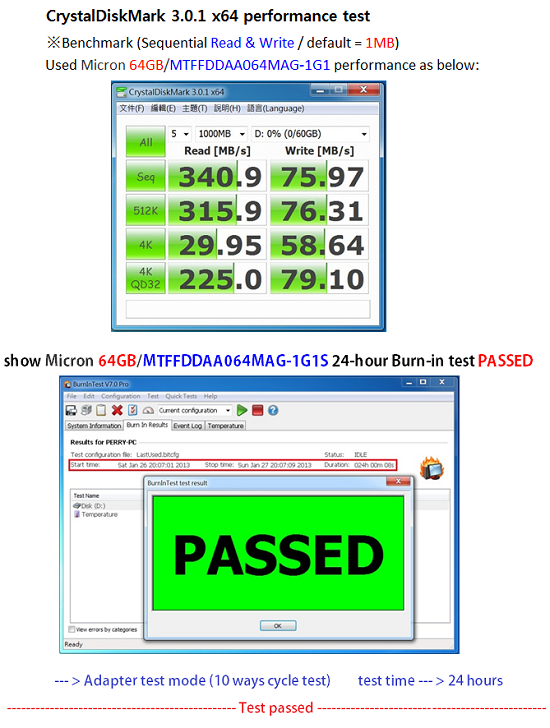

Test report Download :

     Performance & Burn in test .PDF

    效能及老化測試(繁體中文).PDF

    效能及老化测试(简体中文).PDF
