Datasheet

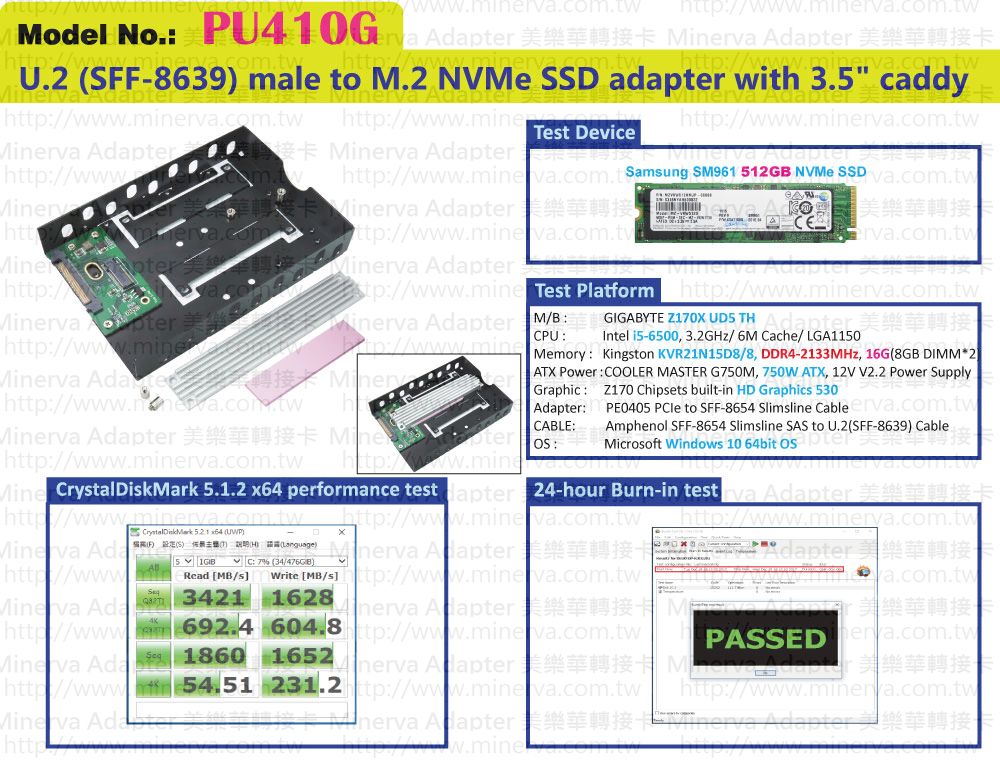

Test report with SM961 2280 M.2 NVMe SSD

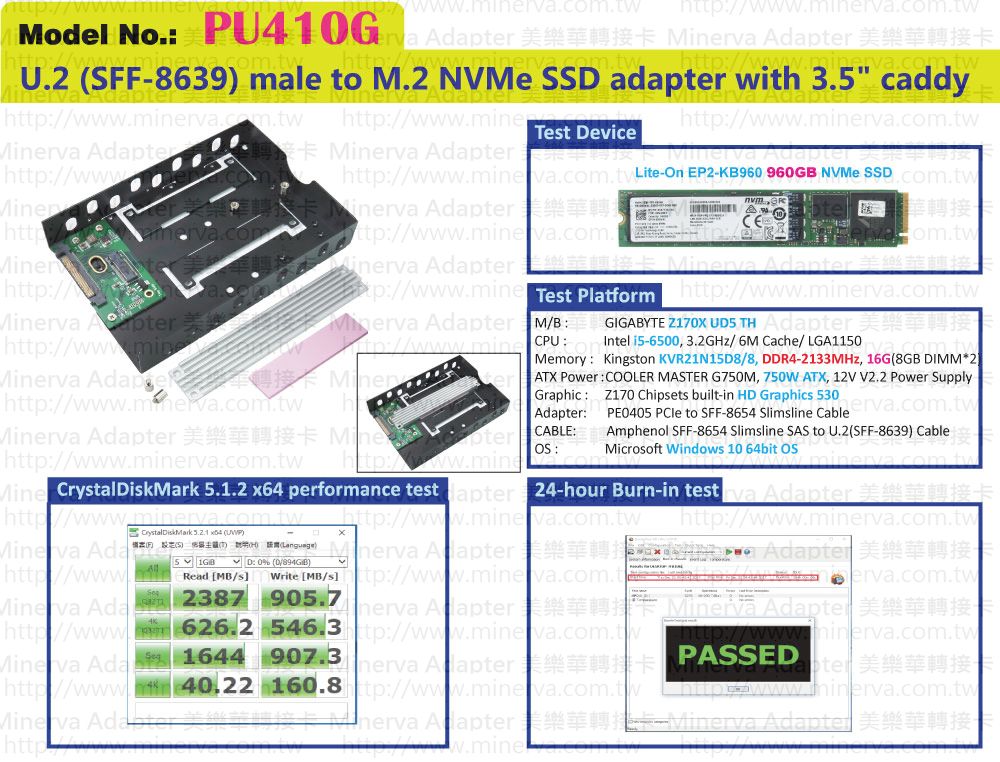

Test report with LITE ON 22110 M.2 NVMe SSD
Test report with M.3 NVME 4TB SSD

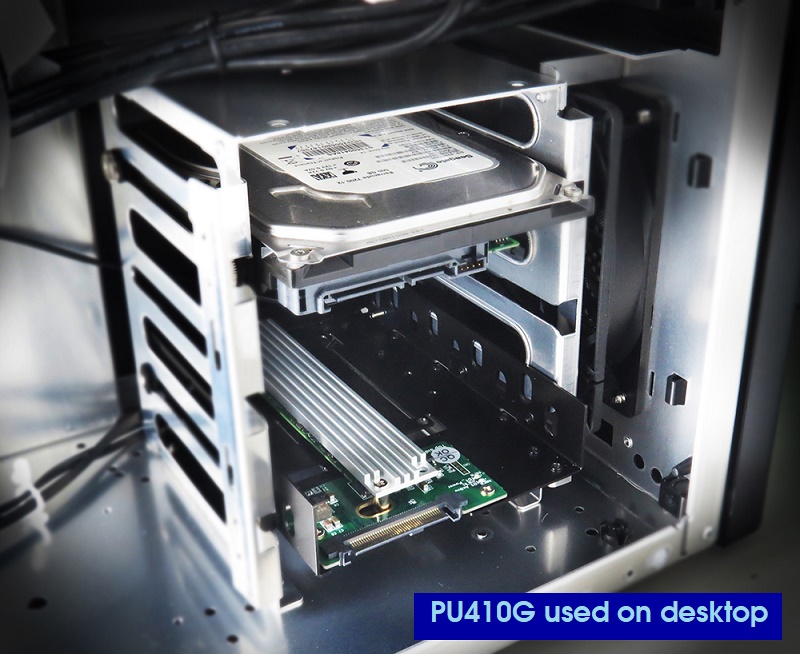

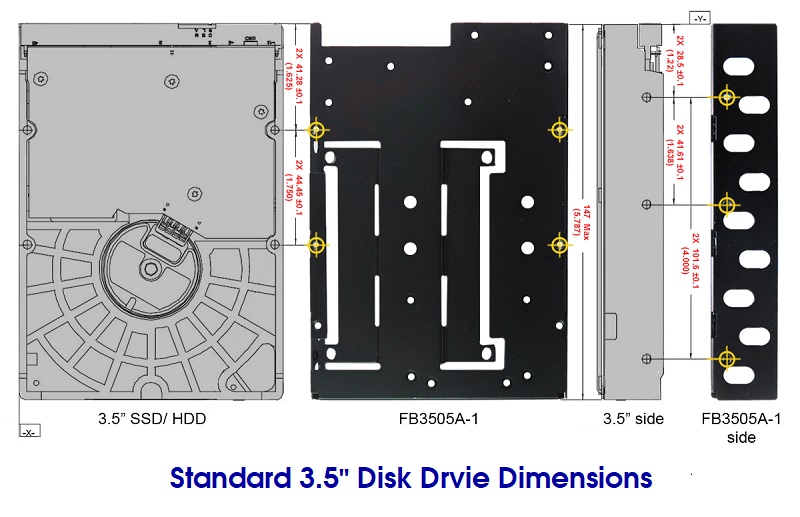

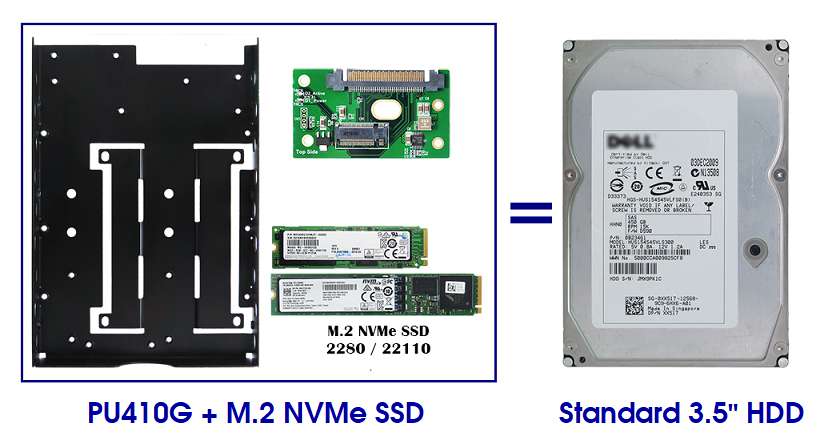

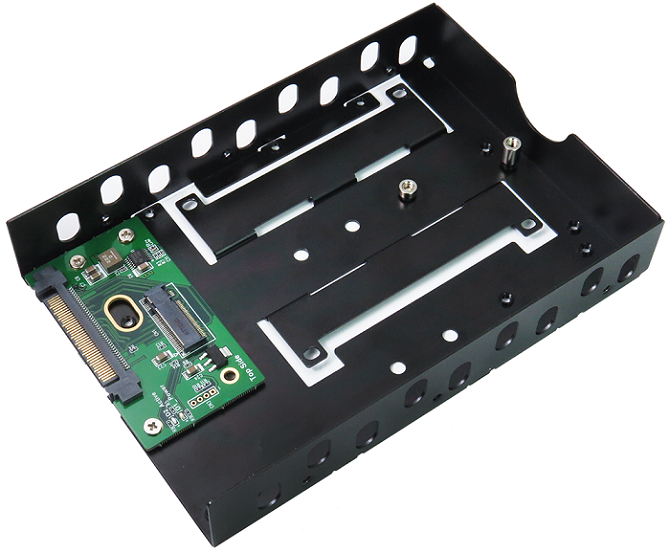

- M.2 NVMe to U.2(SFF-8639) convert
- Build in M.2 M-key Female connector

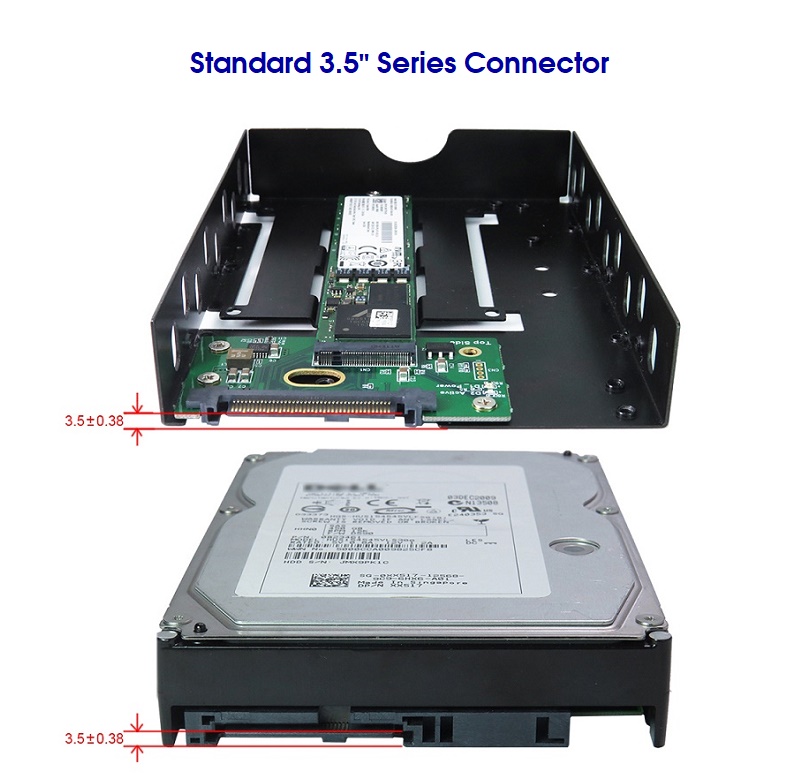

- Build in SFF-8639 connector, pin-out defined by PCIe
- PWM synchronous buck converter Power IC
- 4A maximum output current
- Short circuit protection
- In-rush current suppression
- Thermal shutdown protection
- ESD HBM (Human Body Mode)/2KV
- Support CLKREQ#
- Supports SMB_CLK
- Supports SMB_DATA
- Supports M.3 Dual ports, U.2 Dual ports
- D1 Green LED on indicates M.2 NVMe SSD power ready
- D2 RED LED Blinking indicates M.2 SSD active status
