Datasheet

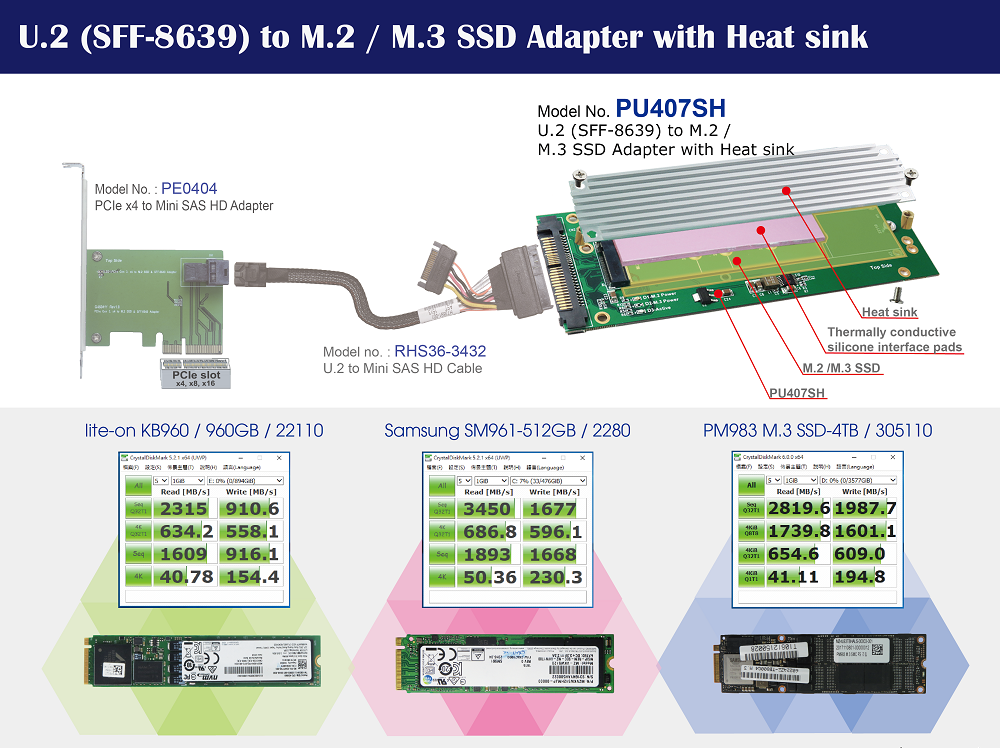

Test report with M.3 NVME 4TB SSD

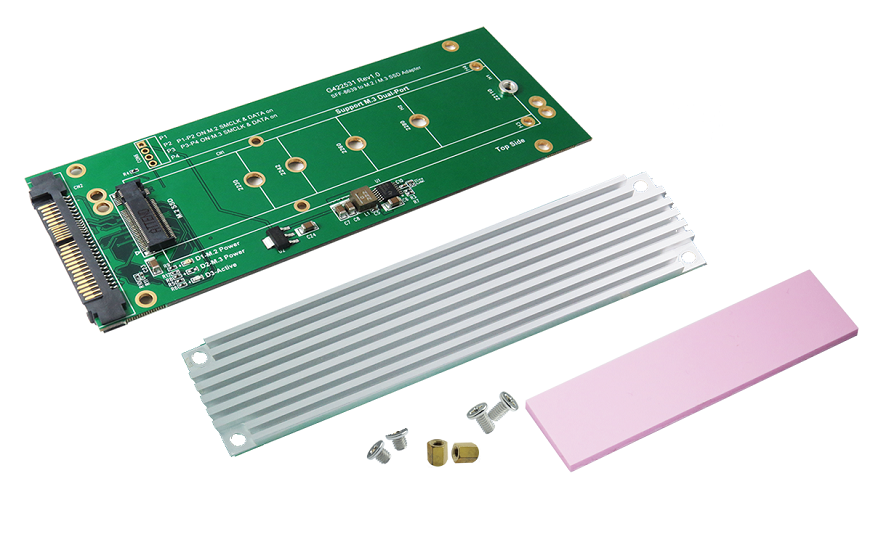

- M.2 NVMe to U.2(SFF-8639) convert
- Build in M.2 M-key Female connector
- Build in SFF-8639 connector, pin-out defined by PCIe
- PWM synchronous buck converter Power IC
- 4A maximum output current
- Short circuit protection
- In-rush current suppression
- Thermal shutdown protection
- ESD HBM (Human Body Mode)/2KV
- Supports SMB_CLK
- Supports SMB_DATA
- D1 Green LED on indicates M.2 NVMe SSD power ready
- D2 RED LED Blinking indicates M.2 SSD active status
- Type 2230-D2-B-M: 30mm(L) x 22mm(W)
- Type 2242-D2-B-M: 42mm(L) x 22mm(W)
- Type 2260-D2-B-M: 60mm(L) x 22mm(W)
- Type 2280-D2-B-M: 80mm(L) x 22mm(W)
- Type 22110-D2-B-M: 110mm(L) x 22mm(W)
