Datasheet

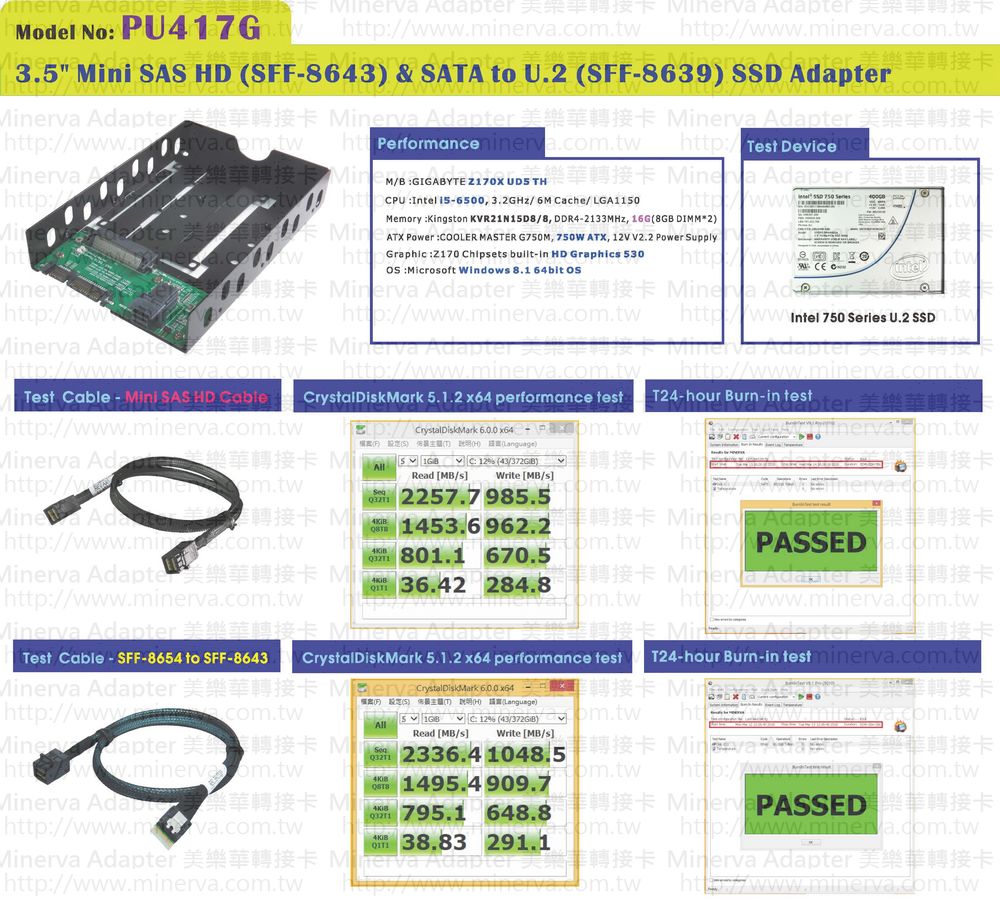

Test report with Intel 750 Serei U.2 SSD & Mini SAS HD Cable
Test report with Intel 750 Serei U.2 SSD & Mini SAS HD to Slimline SAS Cable
Test report with 2.5" SATA SSD

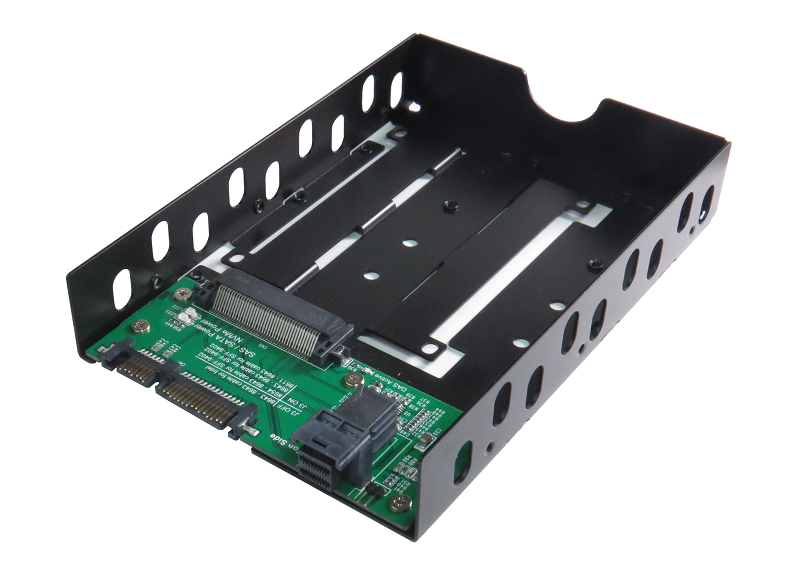

- U.2(SFF-8639) to SFF-8643 MINI SAS HD convert
- U.2, SATA 2.5” form factor to 3.5” form factor convert
- Build in SATA 7+15 pin connector
- Build in SFF-8639 connector, pin-out defined by PCIe
- Build in SFF-8643 connector, pin-out defined by PCIe
- LED 1 Red LED on indicates SSD active status
- LED 2 Green LED Blinking indicates SSD power ready
- LED 3 Green LED Blinking indicates SSD power ready
