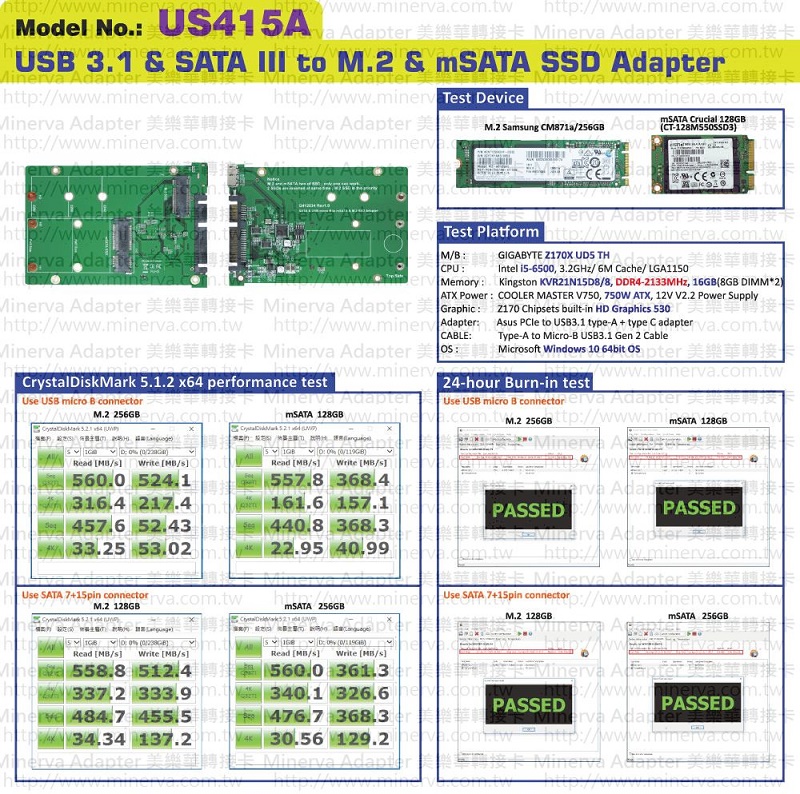

Test report - USB 3.1 Host

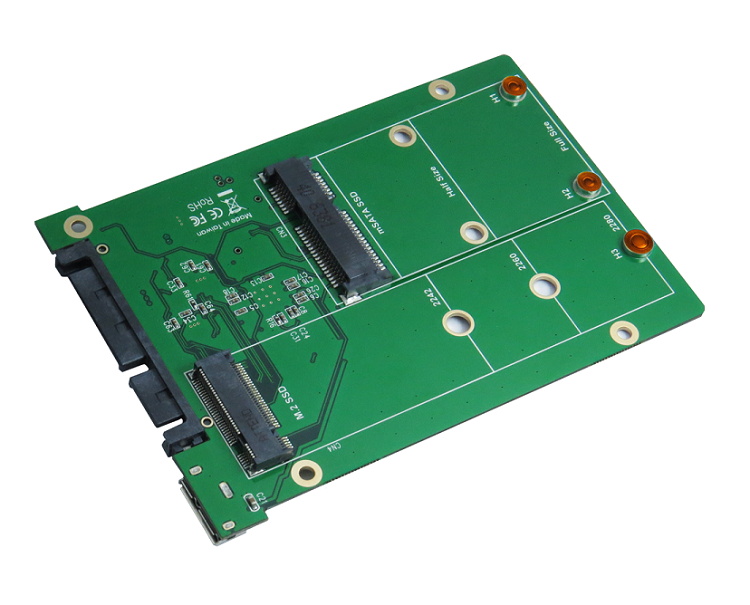

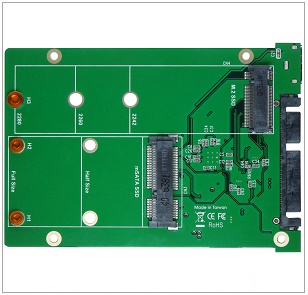

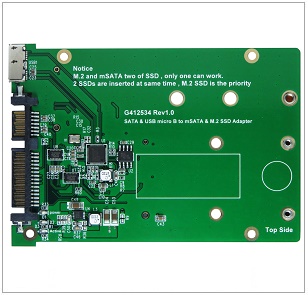

- Built in ASM1351 USB3.1Gen 2 high performance processor
- M.2 SSD(SATA Interface) to USB3.1/10Gbps & SATA converter
- mSATA SSD to USB3.1/10Gbps & SATA converter
- Built in USB Micro-B Female connector
- Built in SATA 7+15pin Female connector
- Built in Mini PCI-e Female connector

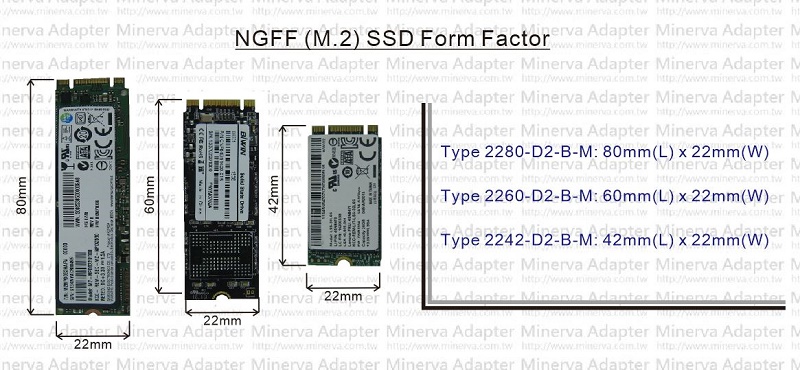

- Built in M.2 B-key Female connector
- PWM synchronous buck converter Power IC
- 3A maximum output current
- Short circuit protection
- In-rush current suppression
- Thermal shutdown protection
- ESD HBM (Human Body Mode)/2KV
- D1 Green LED on indicates SSD Power ready
- D3 Red LED Blinking indicates SSD active status
