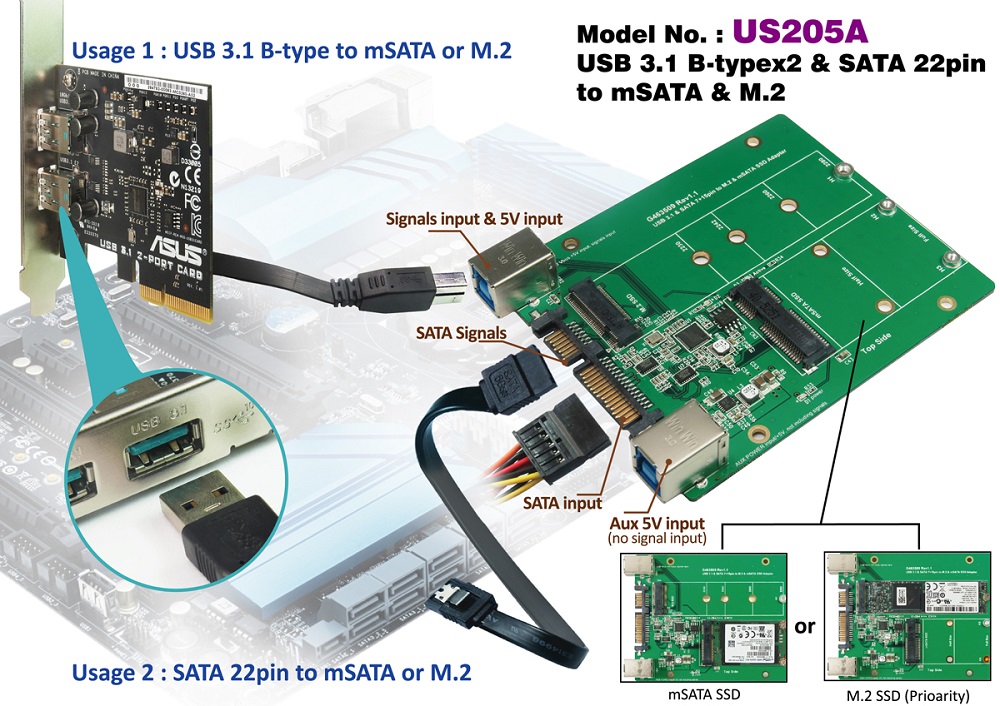

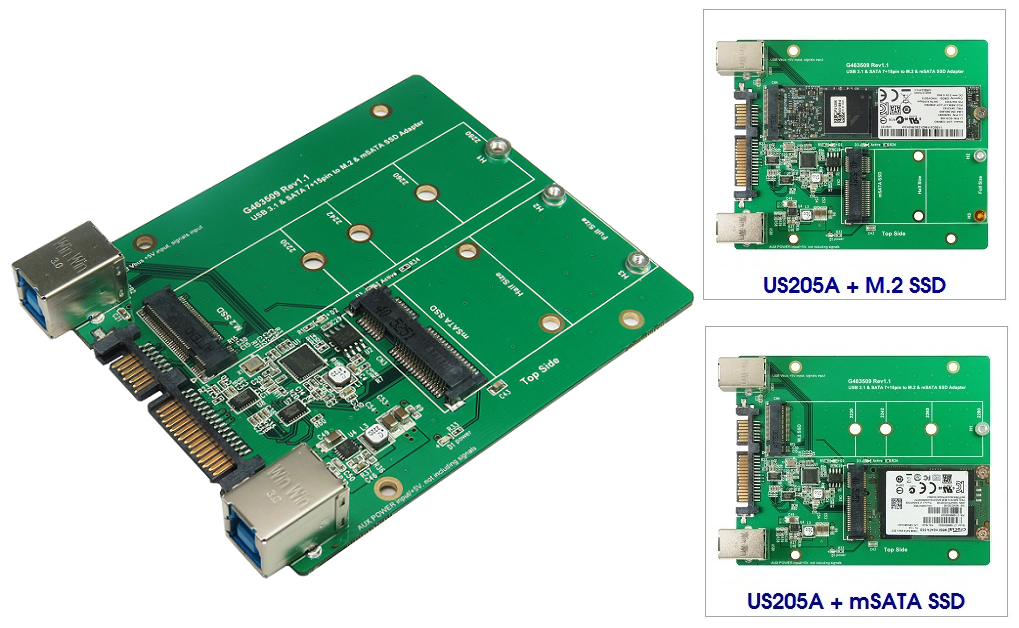

- M.2 SSD(SATA I/F) to USB 3.1/10Gbps & SATA III convert

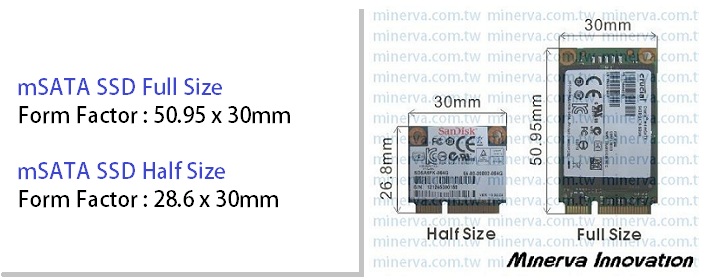

- mSATA SSD to USB 3.1/10Gbps & SATA III convert
- Build in USB3.1 B-type connector
- Build in SATA 7+15pin connector
- Build in M.2 (NGFF) B-key Female connector
- Build in Mini PCI-e(mSATA) Female connector
- D1 LED on indicates M.2 / mSATA SSD power OK
- D2 LED on indicates USB3.1 for SSD active status
- D3 LED indicates M.2 / mSATA SSD active status
- Support SATA Reversion 3.2
- PCI Express M.2 Spec. Revision 0.7, Version 1.0
- Universal Serial Bus 3.1 Specification
- PWM synchronous buck converter Power IC for M.2 or mSATA SSD Device
3A maximum output current
 SSD & SATA to mSATA SSD Adapter - SATA to M.2 (NGFF) & mSATA SSD Adapter - S2083A - Minerva - 2 in 1 - 15.jpg)
