CB963Fx9







CB963Fx9











specifications

PDF

Datasheet





PDF

Test report for 2.5" SSD





PDF

Test report for M.2 SSD





PDF

Test report for mSATA SSD















specifications

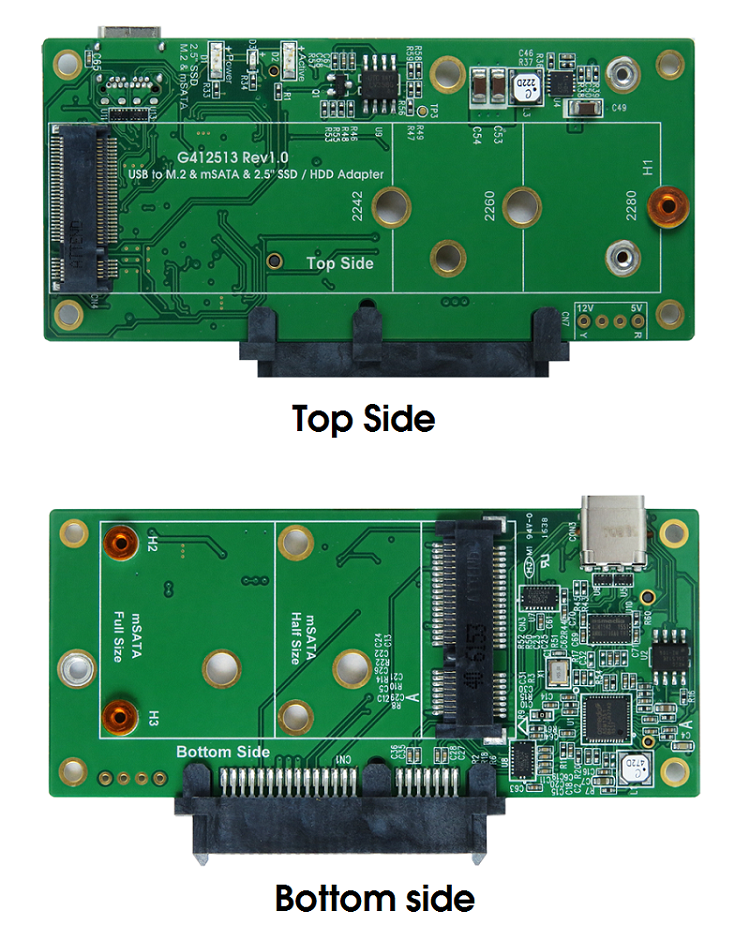

  • Build in ASM1351 USB3.1high performance processor
  • Build in SATA 22pin Female connector
  • Build in Mini PCI-e Female connector
  • Build in M.2 NGFF Female connector
  • PWM synchronous buck converter Power IC
  • 3A maximum output current
  • Short circuit protection
  • In-rush current suppression
  • Thermal shutdown protection
  • ESD HBM (Human Body Mode)/2KV
  • D1 Green LED on indicates 2.5” SATA, mSATA or M.2 Power ready
  • D2 Red LED Blinking indicates SSD active status





Notice: 2.5" SATA SSD / HDD, M.2 SSD or mSATA SSD, only one can work, 2.5" SSD / HDD would be priority.



Application

Application



Application

Application



Application

Application



Application

Application



support storage device
