CB963Fx9



CB963Fx9







specifications

PDF

Datasheet

PDF

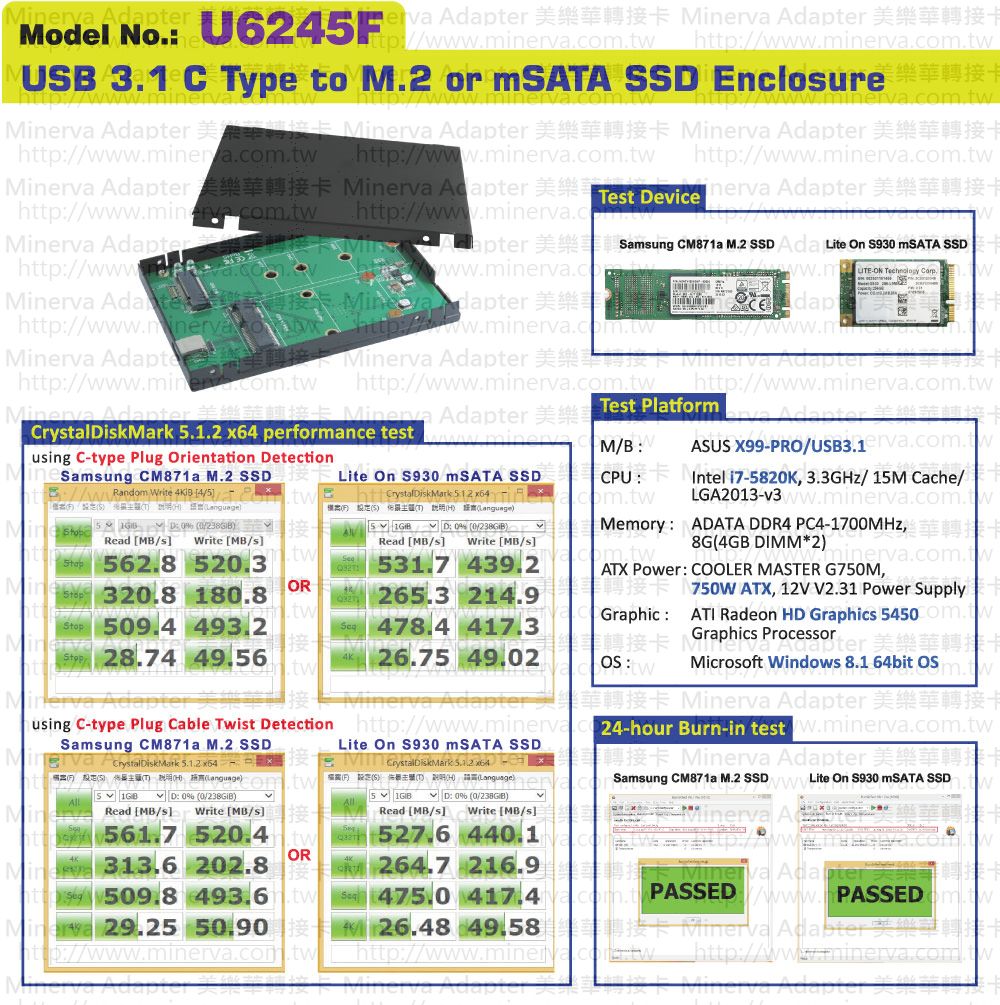

Test report with M.2 SSD

PDF

Test report with mSATA SSD

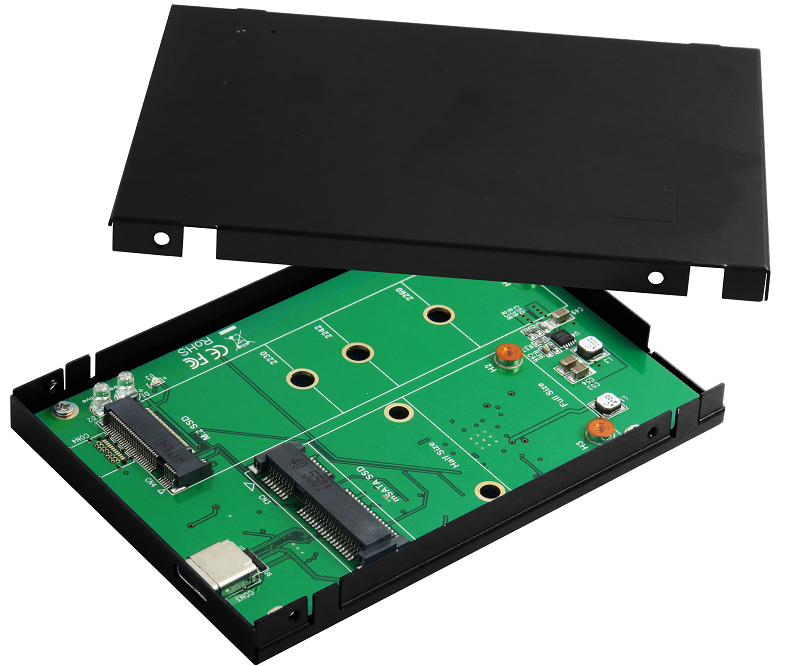

specifications





  • Build in ASM1351 USB3.1high performance processor
  • Build in Mini PCI-e Female connector
  • Build in M.2 NGFF Female connector
  • PWM synchronous buck converter Power IC
  • 3A maximum output current
  • Short circuit protection
  • In-rush current suppression
  • Thermal shutdown protection
  • ESD HBM (Human Body Mode)/2KV
  • D1 Red LED on indicates SSD Power ready
  • D2 Red LED Blinking indicates SSD active status



Application

Application



Application

Application



Application

Application



Application

Application



support storage device

CB963Fx9
