Datasheet

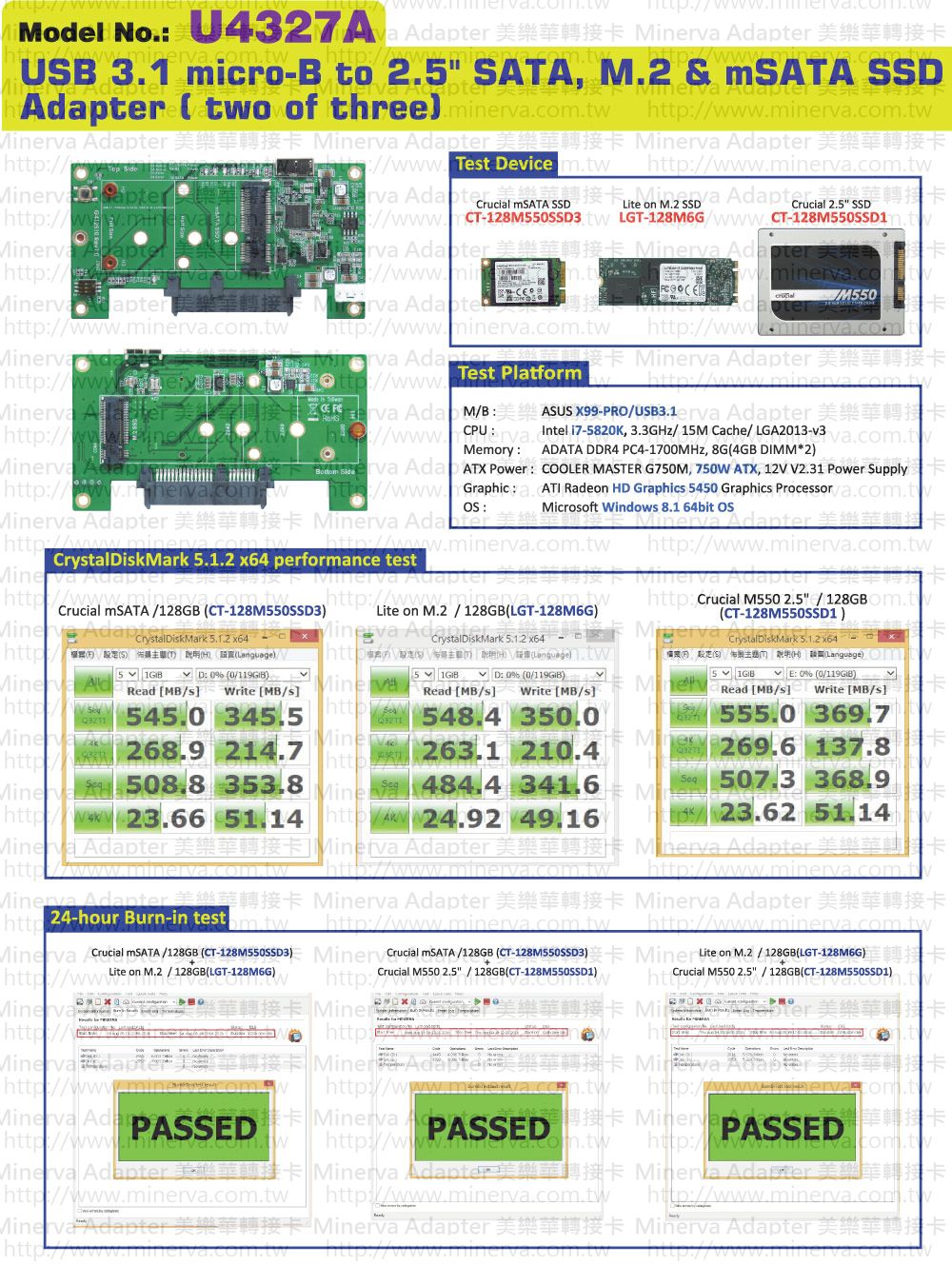

Test report

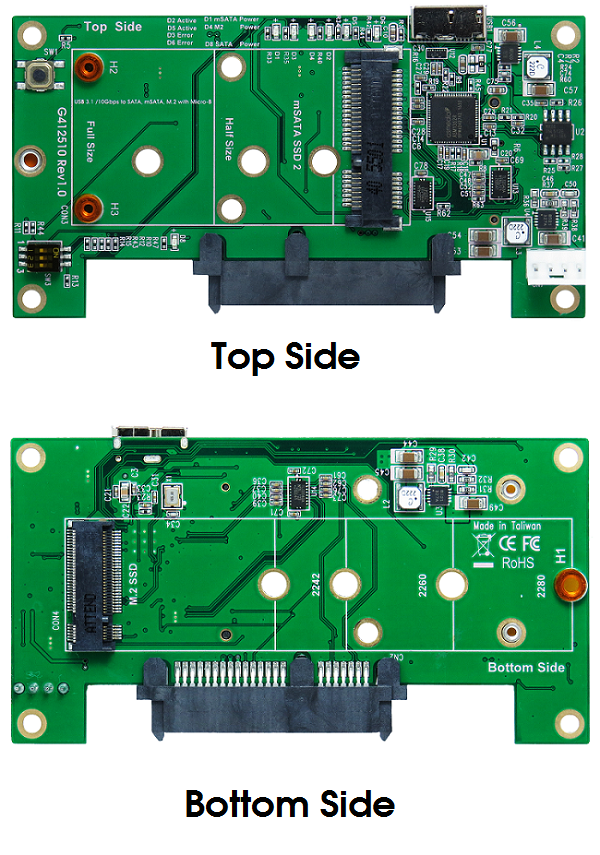

- Build in ASM1352R USB3.1high performance processor

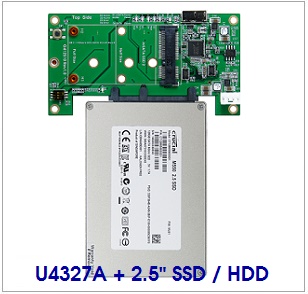

- Build in SATA 22pin Female connector

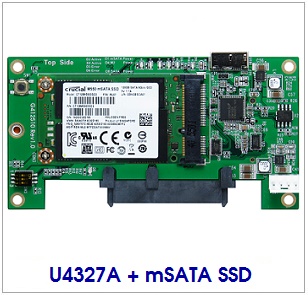

- Build in Mini PCI-e Female connector

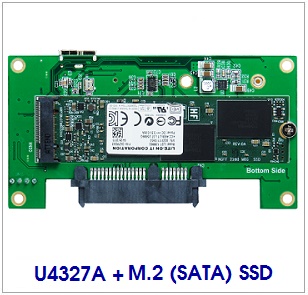

- Build in M.2 B-key Female connector
- Each of PWM synchronous Power IC for mSATA & M.2 SSD independently
- 3A maximum output current
- Short circuit protection
- In-rush current suppression
- Thermal shutdown protection
- ESD HBM (Human Body Mode)/2KV
- D1 Green LED on indicates mSATA or Power ready
- D4 Green LED on indicates M.2 Power ready
- D8 Green LED on indicates 2.5"SATA Power ready
- D2,D5 Red LED Blinking indicates SSD active status
- D3,D6 Red LED Blinking indicates SSD active status
