• Build in ASM1352R high performance processor
• Fully hardware-accelerated RAID Engine
• Supports RAID levels: 0 / 1 / JBOD and SATA Port Multiplier

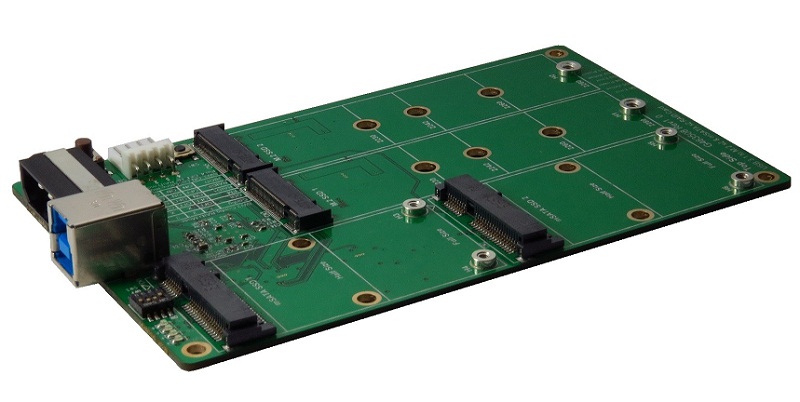

• Build in Mini PCI-e Female connector x2
• Build in M.2 NGFF Female connector x2
• PWM synchronous buck converter Power IC x2

3A maximum output current

Short circuit protection

In-rush current suppression

Thermal shutdown protection

ESD HBM (Human Body Mode)/2KV

• IEC 61000−4−2 Contact (ESD)/15KV for USB3.1 high speed data lines
• IEC 61000−4−2 Air (ESD) /15KV for USB3.1 high speed data lines
• Compliant with USB 3.1 Specification Revision 1.0
• Support SATA Reversion 3.2
• Compliant with PCI Express M.2 Specification Version 1.0
• PCI Express Mini Card Electromechanical Specification 1.2

• Intel 530 Series M.2 SSD & compatible Storage
• Sandisk X110 M.2 SSD & compatible Storage

• Micron M500 Series M.2 SSD & compatible Storage

Datasheet Download :

   U2407A Adapter.PDF


Test repoort Download :

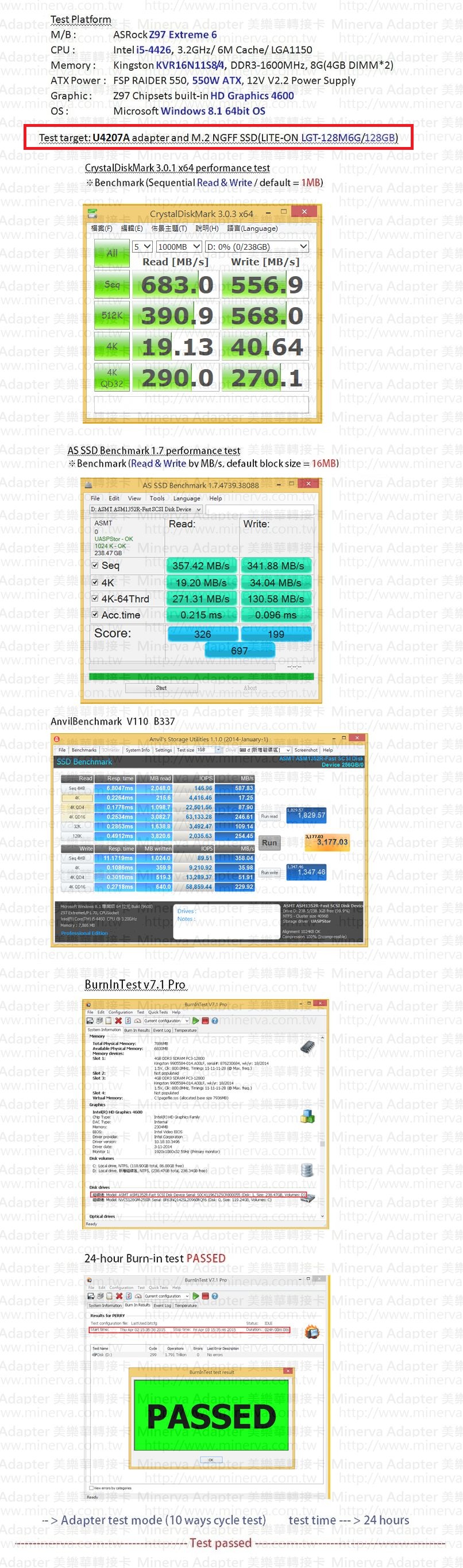

U2407A M.2 performance and burn in test report

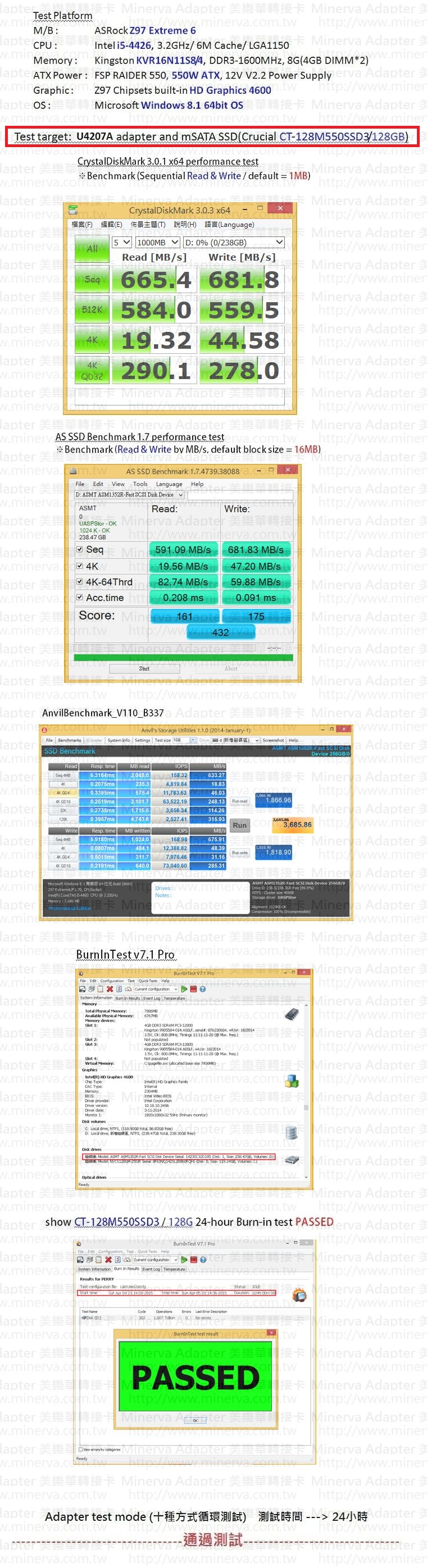

U2407A mSATA performance and burn in test report
