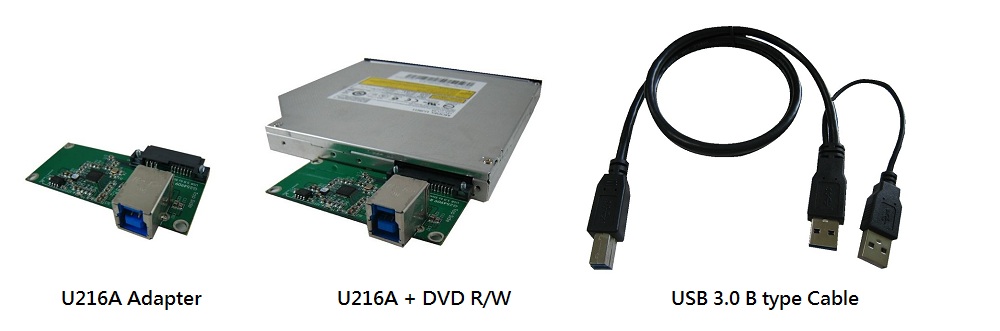

U216A is an economical USB 3.0 module, providing the SATA interface Slimline CD/DVD RW converts to USB 3.0. It includes a Slimline Host Receptacle connector for optical writer drive and an USB 3.0 / B type receptacle connector to the host connected. After assembly, it can be through the USB read and burn CD / DVD without having to install any drivers.

• Compliant with ATA revision 3.0 Standard
• Compliant with USB3.0 Specification Revision 1.0
• To Host – USB 3.0 B type female connector
• Device – Slimline SATA Receptacle 7+6pin connector

1.Desktop

2. Notebook

3.MID

4.Tablet PC

5.Internet Appliances

6.Kiosks

7.Industrial Computers

8.Embedded system

9.Routers

10.Firewalls

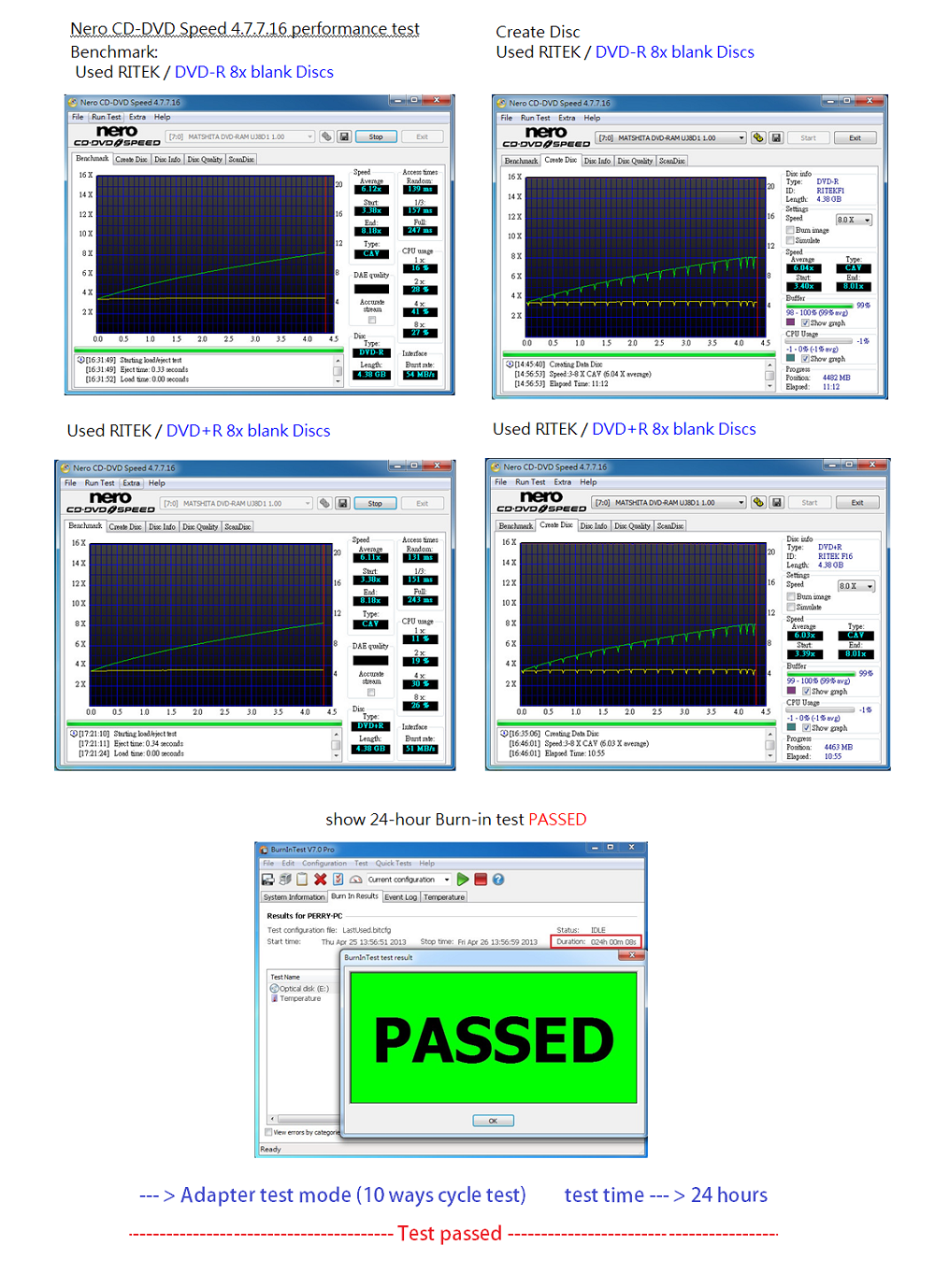

Test Platform:

M/B :             GIGABYTE GA-X58A-UD3R
CPU :             Intel i7-930, 2.8MHz/ 8G Cache/ 4.8GT
Memory :        Kingston KVR1333D3N9/2G, 1333MHz,2G Byte DIMM*2
ATX Power :  TC START W500, 500W ATX,12V V2.2 Power Supplier
Graphic :         Asus NVIDIA, Geforce 210
USB port :      USB 3.0 portx2
OS :                 Microsoft Windows 7 64bit OS

Test repoort Download :

U216A performance and burn in test report

U216A 效能及老化測試 (繁體中文)

U216A 效能及老化测试 (简体中文)

Datasheet Download :

    U216A.PDF

    U216A(繁體中文).PDF

    U216A(简体中文).PDF
