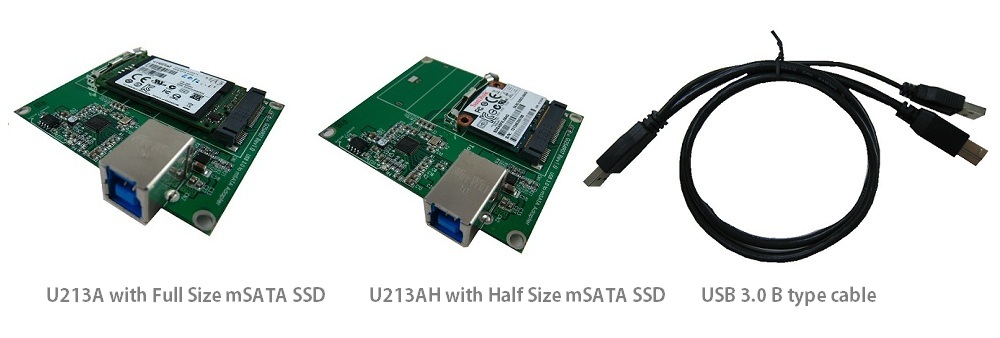

U213A / U213AH is a USB3.0 converter, provides SATA 6Gb/s interface mSATA SSD converted to USB3.0. It has built a mini PCI-e connector for mSATA SSD and a USB3.0/B type connector to host connects. After assembly, it is the USB to mSATA Module, can operate in a variety of operating systems. Such as DOS, Windows 95, 98, XP, 2000, Vista, Win 7, Linux, Unix.

U213A / U213AH adapter allows the mSATA SSD as a system disk to boot the operating system directly, without having to install any drivers.

• Compliant with ATA revision 3.0 Standard
• Compliant with USB3.0 Specification Revision 1.0
• Support UASP Protocol Specification Revision 1.0
• Device – Mini PCI-e 52pin connector

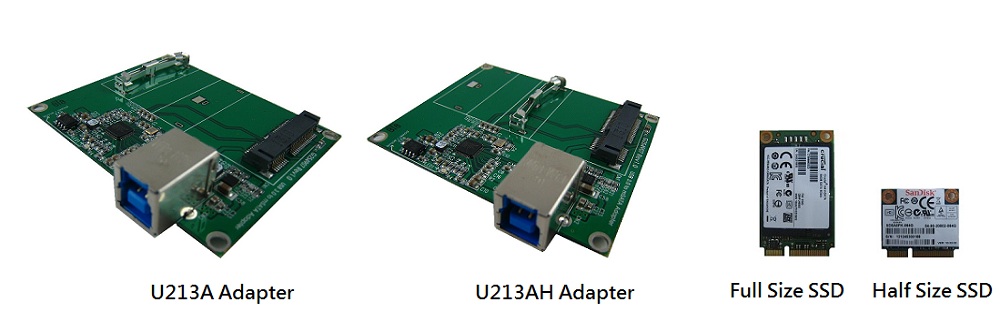

mSATA SSD Form Factor as below:
Full Size: 50.95 mm (L) x 30mm (W)

1. Notebook

2. Internet Appliances

3. Kiosks

4. Industrial Computers

5. Routers

6. Firewalls

• Intel 525, 313, 311, 310 Series mSATA SSD
• Samsung PM800, PM810, PM830 Series mSATA SSD

• Toshiba HG,SG2 Series mSATA SSD
• Sandisk Gen 2 pSSD, P4 Meteor5 Series mSATA SSD
• Any compatible mSATA SSD Card

Test repoort Download :

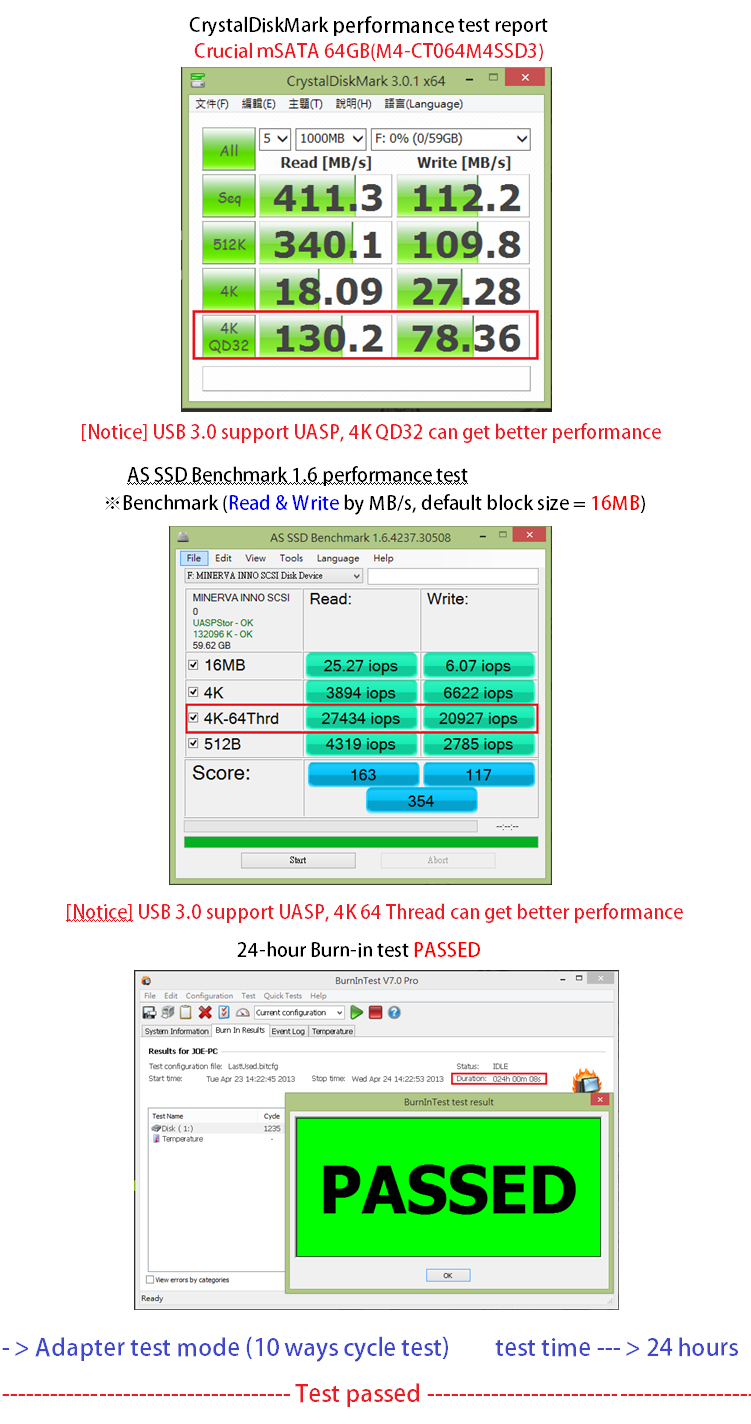

U213A with Crucial mSATA 64GB M4 CT064M4SSD3 performance and burn in test report

U213A + Crucial mSATA 64GB M4 CT064M4SSD3 效能及老化測試 (繁體中文)

U213A + Crucial mSATA 64GB M4 CT064M4SSD3 效能及老化测试 (简体中文)

Datasheet Download :

    U213A / U213AH.PDF

    U213A / U213AH(繁體中文).PDF

    U213A / U213AH(简体中文).PDF
