ST664MD is an economical 2.5 "SSD. It uses a 2.5" ultra-lightweight aluminum material shell, coupled with the CFast Card SSD combination to IDE adapter. When assembled, it can operate in a variety of operating systems. Such as DOS, Windows 95, 98, XP, 2000, Vista, Win 7, Linux, Unix, and so on.

ST664MD adapter allows the installation of CFast Card SSD as system disk, boot the operating system directly, without having to install any drivers.

• Fully compliant with SATA revision 2.6
• Support ATA/ATAPI-7 specification
• Fully compliant with SFF-8212 specification for 2.5” Drives with 50-pin Connector
• Fully compliant with Intel Common Building Block HDD Platform
• PWM Power IC / 1.4MHz 5.5V synchronous buck converter
• CFast Card input voltage: 3.3V ±5%, input current: 3A
• ATA/ATAPI Ultra DMA Mode 0, 1, 2, 3, 4, 5, 6.
• Operating temperature – Commercial (0°C to +70°C)

1. Notebook

2. Internet Appliances

3. Kiosks

4. Industrial Computers

5. Routers

6. Firewalls

Datasheet Download :

    ST664MD.PDF

    ST664MD(繁體中文).PDF

    ST664MD(簡體中文).PDF

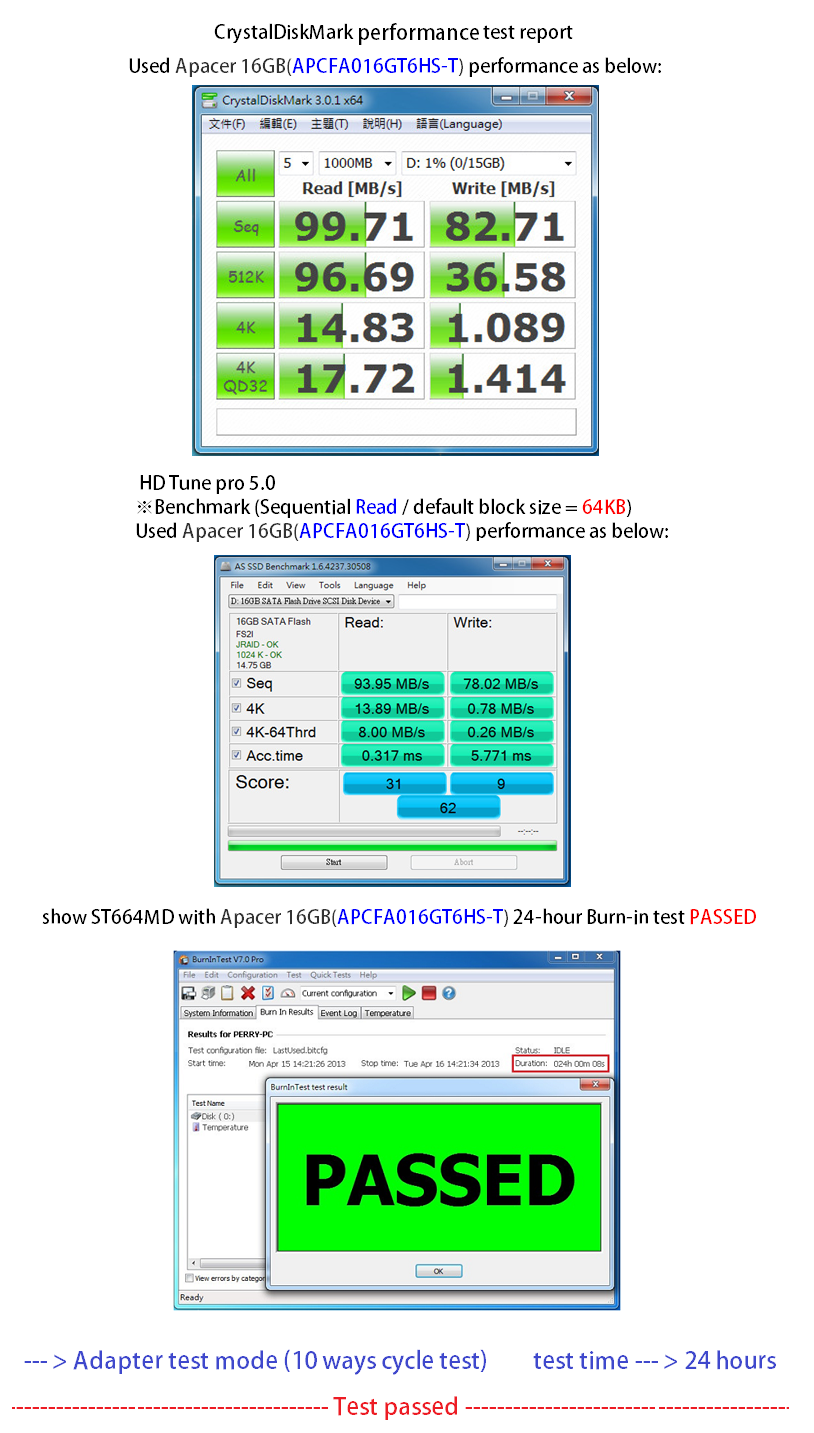

Test report Download :

    IDE to CFast Card Adapter test report.PDF

    IDE to CFast Card Adapter test report(繁體中文).PDF

    IDE toCFast Card Adapter test report(簡體中文).PDF
