CB963Fx9













specifications



  • Build in NGFF 67pin B key connector
  • Green LED indicates power status
  • Red LED indicates active status
  • 4 Layer PCB Designed to reduce noise coupling
  • Support SATA Reversion 3.2
  • PCI-E Card Electromechanical Spec. Revision 1.1
  • PCI Express M.2 Spec. Version 1.0
  • PWM synchronous buck converter Power IC
    3A maximum output current
    Short circuit protection
    In-rush current suppression
    Thermal shutdown protection
    ESD HBM (Human Body Mode)/2KV





Application



1. desk-top PC

2. Internet Appliances

3. Kiosks

4. Industrial Computers

5. Routers

6. Firewalls

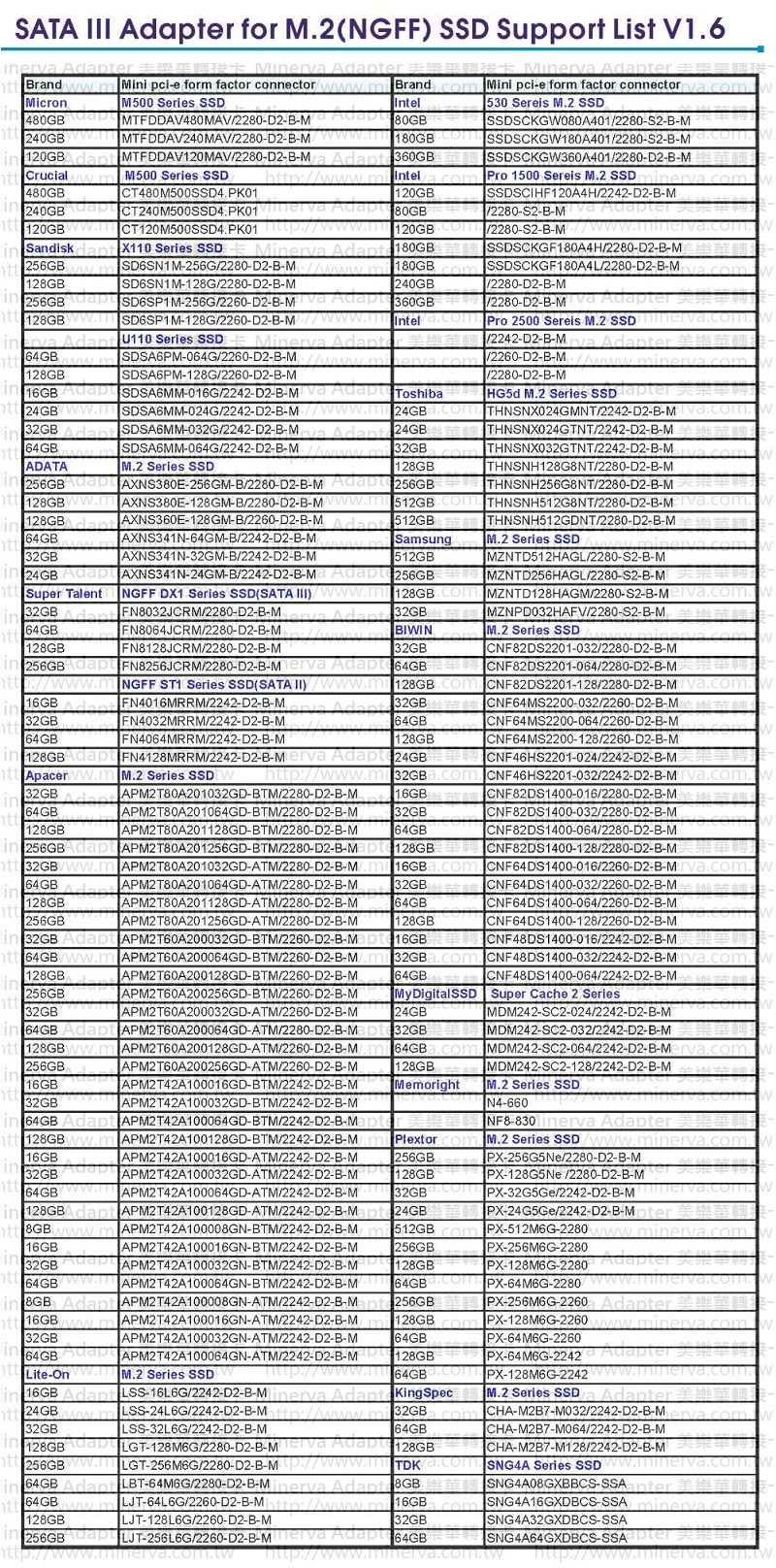

support storage device



  • Intel 530 Series M.2 SSD & compatible Storage
  • Sandisk X110 M.2 SSD & compatible Storage
  • Micron M500 Series M.2 SSD & compatible Storage











support storage device

5



Test repoort Download :

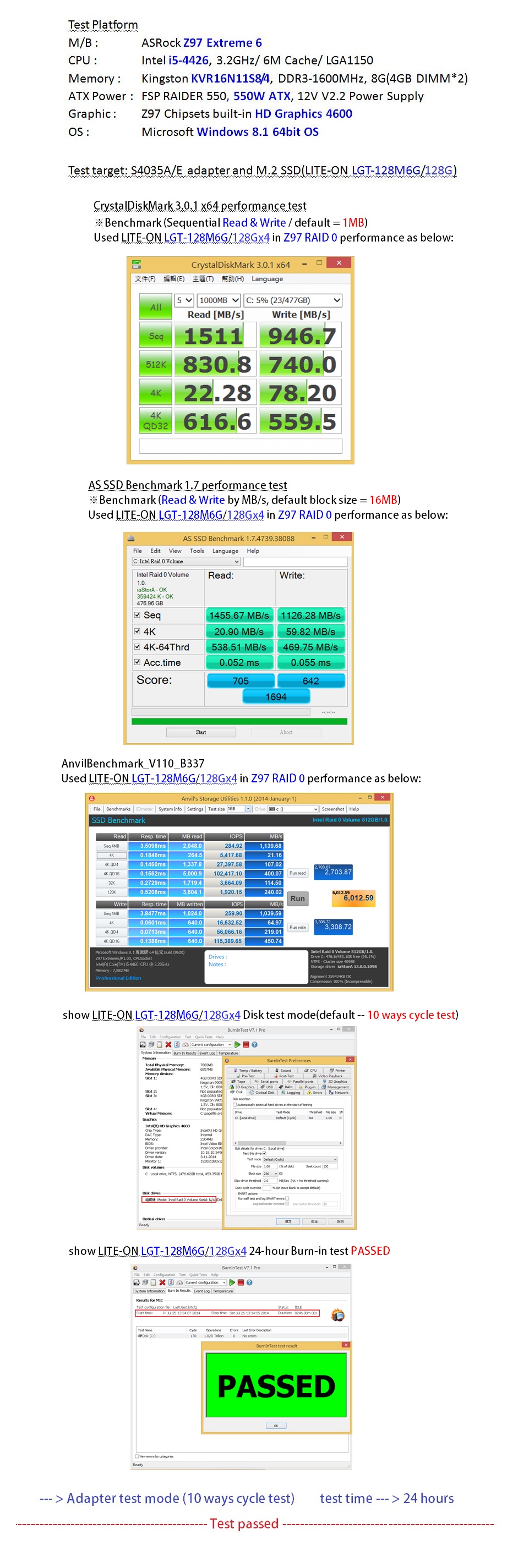

PDF S4035E performance and burn in test report



PDF S4035E 測試報告 (繁體中文)



PDF S4035E 测试报告 (简体中文)





download



Datasheet Download :



PDF   S4035E.PDF

PDF    S4035E (繁體中文).PDF

PDF    S4035E (简体中文).PDF
