CB963Fx9











specifications

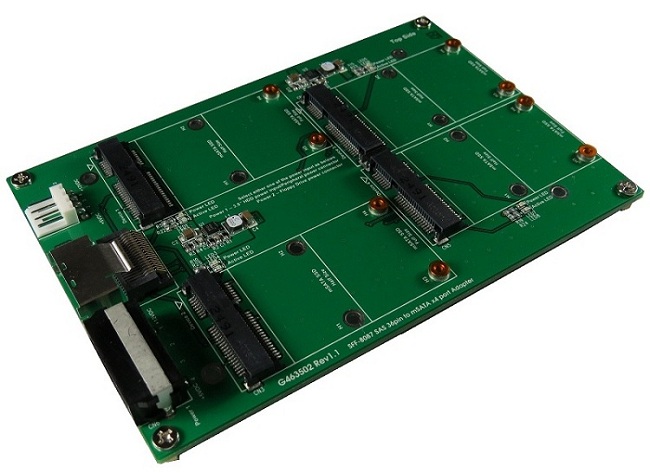

  • Build in Mini PCI-e 52pin Female connector
  • Green LED indicates power status
  • Red LED indicates active status
  • 4 Layer PCB Designed to reduce noise coupling
  • Support SATA Reversion 3.2
  • PCI Express Mini Card Electromechanical Spec. 1.2
  • PCI-E Card Electromechanical Spec. Revision 1.1
  • PWM synchronous buck converter Power IC
    3A maximum output current
    Short circuit protection
    In-rush current suppression
    Thermal shutdown protection
    ESD HBM (Human Body Mode)/2KV





Application

Application





Application



1. desk-top PC

2. Internet Appliances

3. Kiosks

4. Industrial Computers

5. Routers

6. Firewalls





support storage device



※ Sandisk U100 Series SSD and compatible Storage Device

※ Samsung PM830 Series SSD and compatible Storage Device

※ Micron RealSSD C400 & C400v mSATA SSD and compatible Storage Device





support storage device

5



Test repoort Download :



PDF S4025A performance and burn in test report



PDF S4025A 測試報告 (繁體中文)



PDF S4025A 测试报告 (简体中文)





download



Datasheet Download :



PDF   S4025A.PDF

PDF    S4025A (繁體中文).PDF

PDF    S4025A (简体中文).PDF
