CB963Fx9







CB963Fx9



CB963Fx9CB963Fx9CB963Fx9





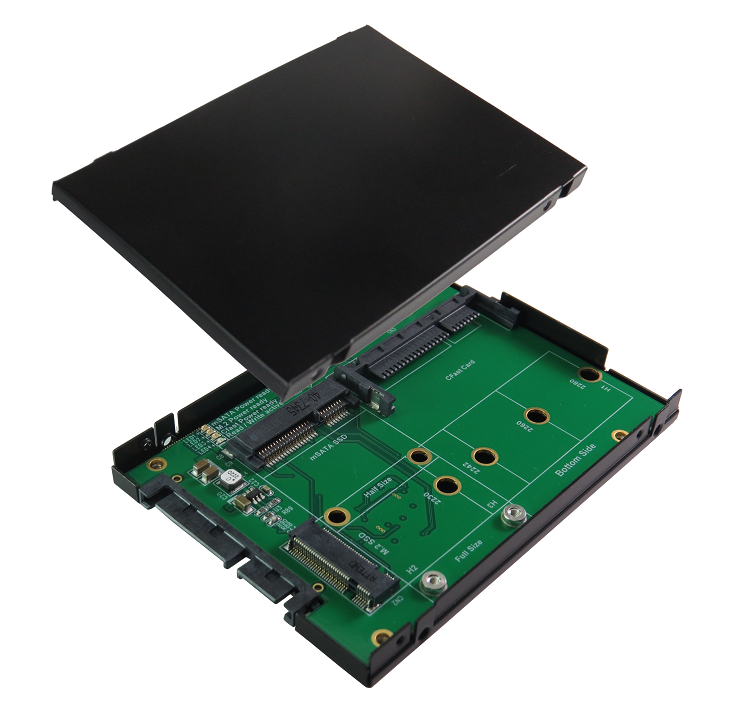

specifications

PDF

Datasheet



PDF

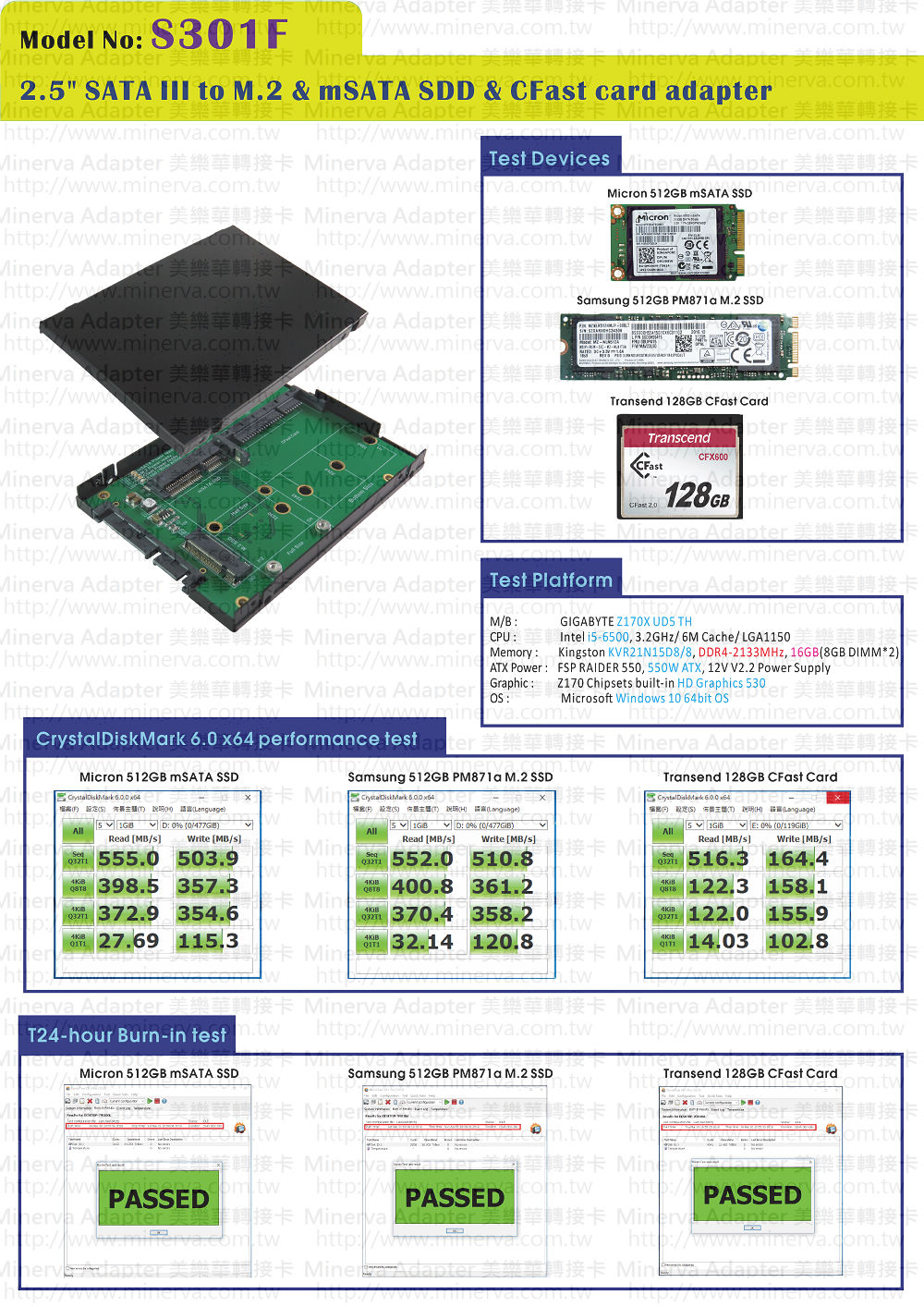

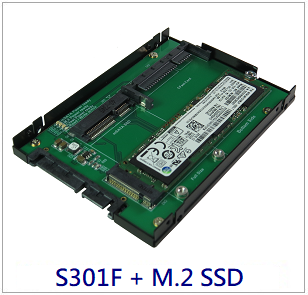

Test report-with M.2 SSD



PDF

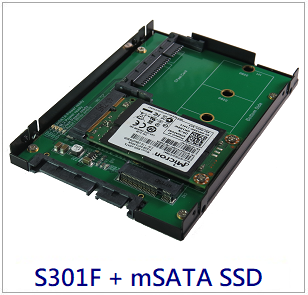

Test report-with mSATA SSD













PDF

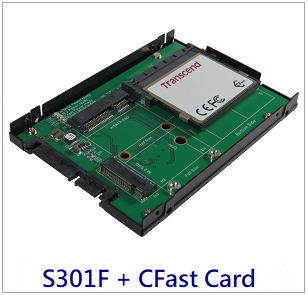

Test report-with CFast Card









specifications





  • M.2 SATA to SATA convert
  • mSATA to SATA convert
  • CFast to SATA convert
  • Build in M.2 B-key connector
  • Build in Mini PCIe connector
  • Build in CFast connector
  • PWM synchronous buck converter Power IC
  • 3A maximum output current
  • Cycle-by Cycle Overcurrent Limit protection
  • Under Voltage protection
  • In-rush current suppression
  • Thermal shutdown protection
  • ESD HBM (Human Body Mode)/3KV
  • LED1 Green LED on indicates mSATA power ready
  • LED2 Green LED on indicates M.2 SATA power ready
  • LED3 Green LED on indicates CFast power ready
  • LED2 RED LED Blinking indicates M.2 or mSATA SSD active status





support storage device
