2.5" SATA SSD Form Factor : 98 x 65.5mm
M.2 (NGFF) & mSATA to SATA III Module
Build in Mini PCI-e 52pin Female connector
Build in M.2 (NGFF) B key Female connector
Support SATA Rev. 3.2 DEVSLP function
Green LED indicates power status
Red LED indicates active status

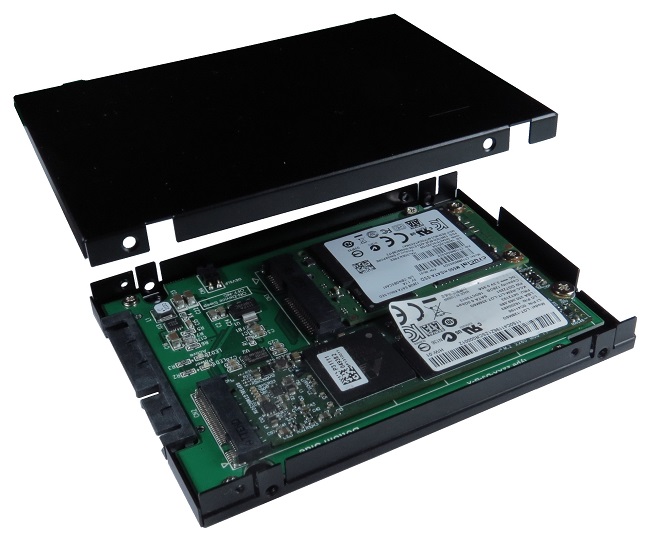

Insert both M.2 & mSATA SSD on S2083F,
M.2 SSD is the first priority. mSATA won't work.
Support SATA Reversion 3.2
PCI Express M.2 Spec. Revision 0.7, Version 1.0
PCI Express Mini Card Electromechanical Spec. 1.2
Support SFF-8201 for Form Factor of 2.5" Disk Drives
PWM synchronous buck converter Power IC
- 3A maximum output current
- Short circuit protection
- In-rush current suppression
- Thermal shutdown protection
- ESD HBM (Human Body Mode)/2KV
 SSD & SATA to mSATA SSD Adapter - SATA to M.2 (NGFF) & mSATA SSD Adapter - S2083A - Minerva - 2 in 1 - 15.jpg)
 SSD.jpg){kind=small}
※ Sandisk U100 Series SSD and compatible Storage Device
※ Samsung PM830 Series SSD and compatible Storage Device
※ Micron RealSSD C400 & C400v mSATA SSD and compatible Storage Device
※ Intel 530 Series M.2 SSD & compatible Storage
※ Sandisk X110 M.2 SSD & compatible Storage
※ Micron M500 Series M.2 SSD & compatible Storage
