specifications

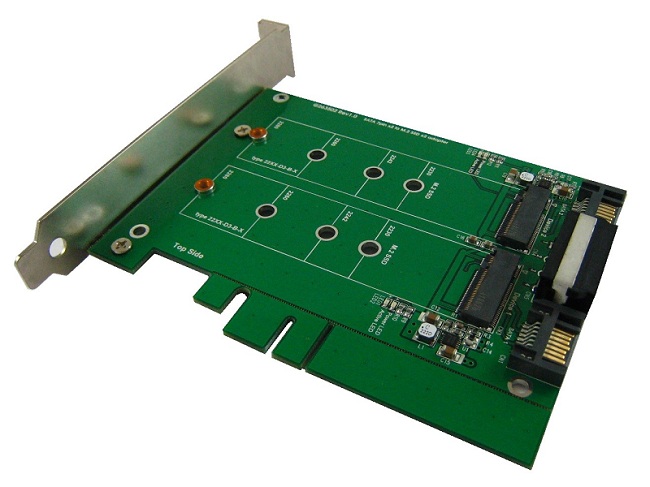

  • M.2 (NGFF) to SATA III Module
  • Support SATA Reversion 3.2
  • Compliant with PCI Express M.2 Spec. Version 1.0
  • PWM synchronous buck converter Power IC
    3A maximum output current
    Short circuit protection
    In-rush current suppression
    Thermal shutdown protection
    ESD HBM (Human Body Mode)/2KV

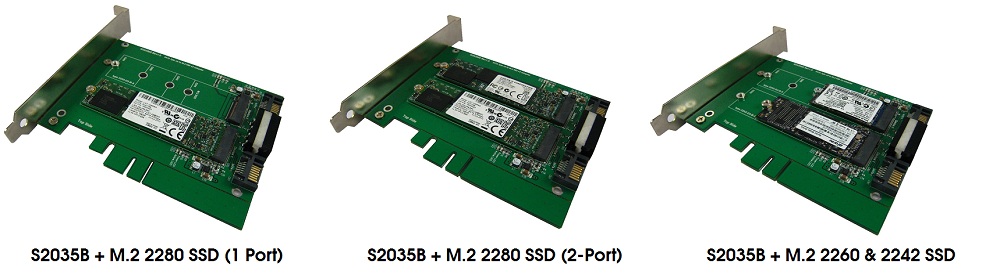

  • Suport the following form factor M.2(NGFF) SSD:

Type 2230-D2-B-M: 30mm(L) x 22mm(W)
Type 2242-D2-B-M: 42mm(L) x 22mm(W)
Type 2260-D2-B-M: 60mm(L) x 22mm(W)
Type 2280-D2-B-M: 80mm(L) x 22mm(W)



Application



1. desk-top PC

2. Internet Appliances

3. Kiosks

4. Industrial Computers

5. Routers

6. Firewalls





support storage device



  • Intel 530 Series M.2 SSD & compatible Storage
  • Sandisk X110 M.2 SSD & compatible Storage
  • Micron M500 Series M.2 SSD & compatible Storage







support storage device

5



Test repoort Download :

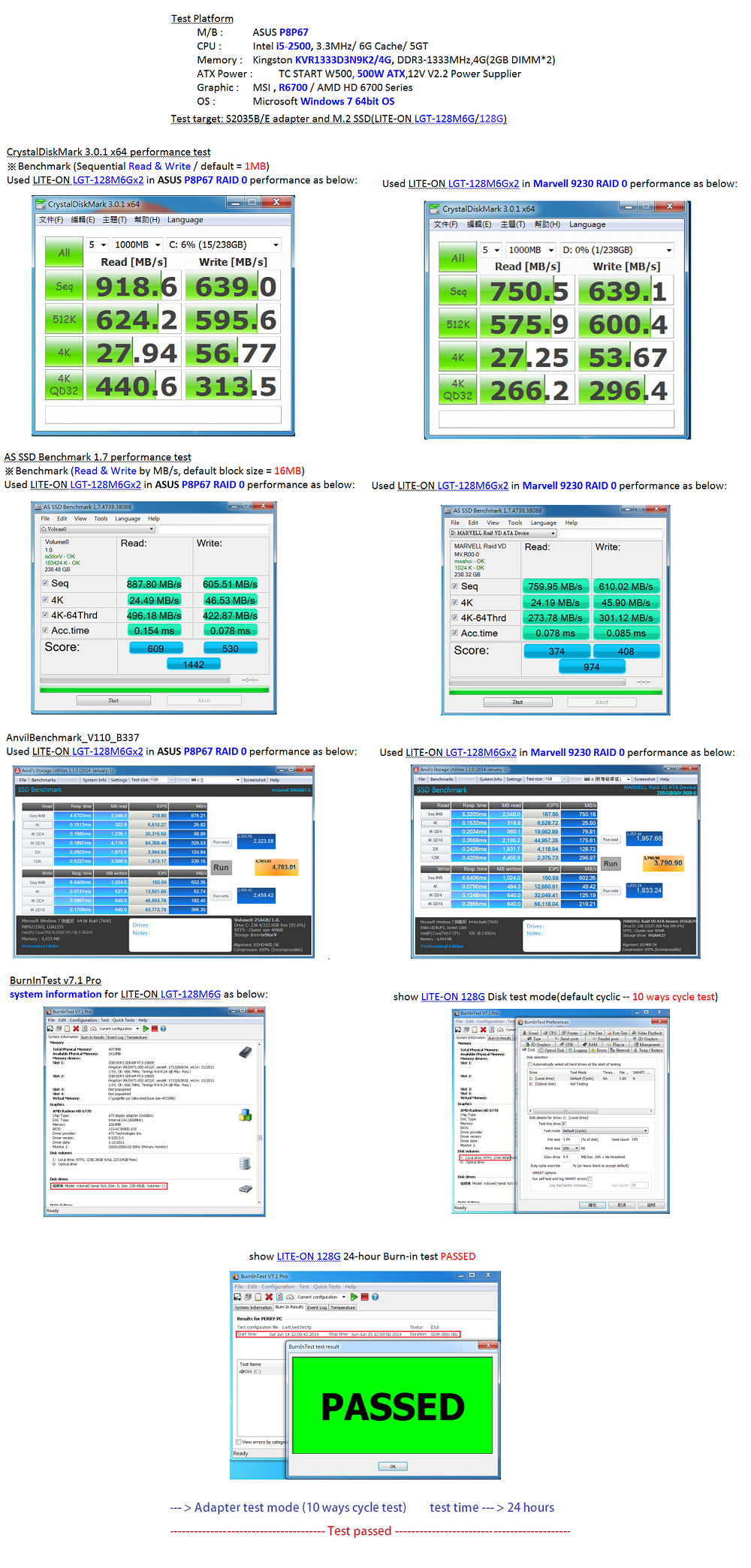

PDF S2035B performance and burn in test report



PDF S2035B測試報告 (繁體中文)



PDF S2035B测试报告 (简体中文)



download



Datasheet Download :



PDF S2035B Datasheet.PDF



PDF S2035B (繁體中文) Datasheet.PDF



PDF S2035B (简体中文) Datasheet.PDF





S2035B assembly guide Download :



PDF     S2035B assembly guide.PDF

PDF     S2035B 安裝說明(繁體中文).PDF

PDF     S2035B 安装说明(简体中文).PDF
