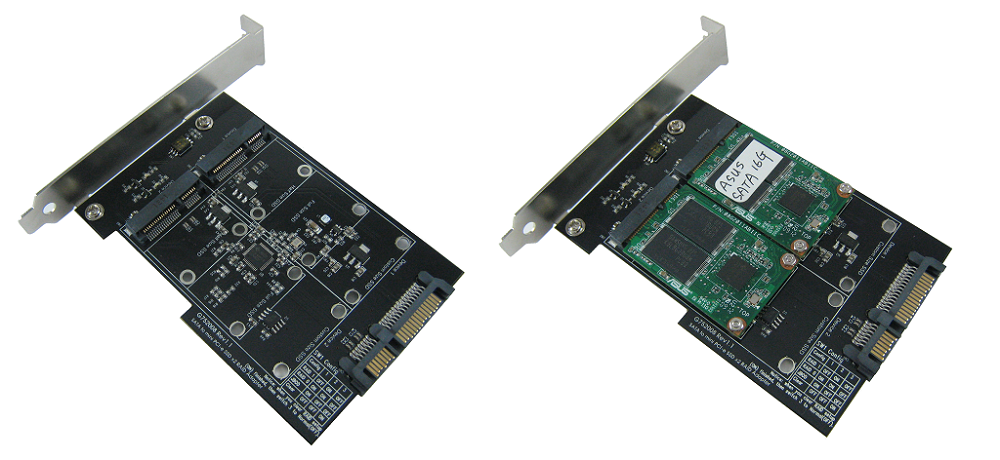

2.5" SATA to mini PCI-e (mSATA) SSD Raid Adapter

2





8







Avstract



R2031B/C provide 2-port Mini PCI-e SSD connector SATA II high-performance array card. It provides hardware to setup the RAID level, no driver, BIOS or software required for RAID installation, can be switched to RAID 0, RAID 1, JBOD three mode operation settings.



specifications



Mini PCI-e SSDx2
Built-in the JMB390 high performance processor
Fully hardware-accelerated RAID Engine
Supports PM aware and non-PM aware host
Supports Native Command Queue (NCQ)

Supports RAID levels: 0 / 1 / JBOD

3-button switch to complete the RAID mode setup
No external DRAM or processor required for RAID operation



Application



  • RAID Subsystem
  • NAS Servers
  • Backup Systems
  • Disk Clone Systems
  • Serial ATA Enclosures
  • Large Capacity & High Performance SSD
  • Solid State Drive
  • Very Large Capacity Disk Systems
  • SATA Ports Expander



download

Datasheet Download :



PDF    R2031B Series.PDF

PDF    R2031B(繁體中文).PDF

PDF    R2031B(简体中文).PDF

Test report Download :



PDF     Performance & Burn in test .PDF

PDF    效能及老化測試(繁體中文).PDF

PDF    效能及老化测试(简体中文).PDF



Raid Switch intall guide Download :



PDF     Raid Switch intall guide.PDF

PDF    Raid Switch 安裝說明(繁體中文).PDF

PDF    Raid Switch 安裝说明(简体中文).PDF

R2031B assembly guide Download :



PDF     R2031B assembly guide.PDF

PDF    R2031B 安裝說明(繁體中文).PDF

PDF    R2031B 安裝说明(简体中文).PDF
