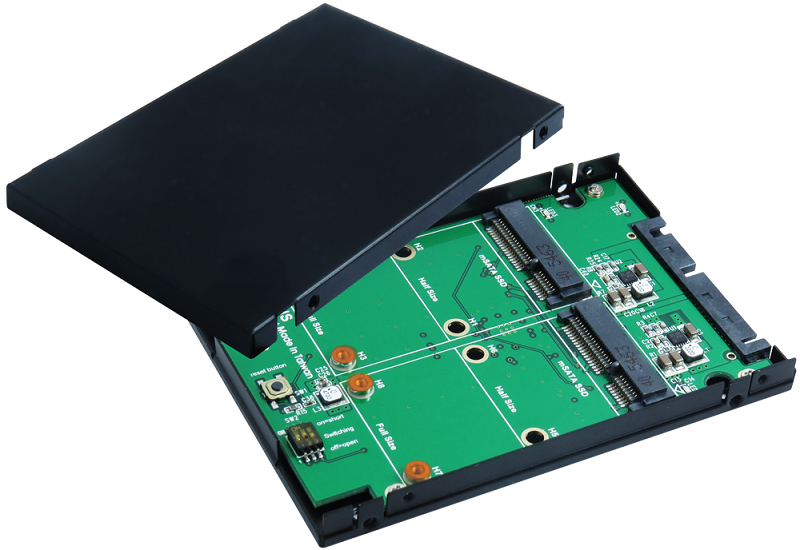

Standard 2.5", 9.5mm(H) Form Factor
Support a SATA host & two mSATA SSD devices
Built-in ASM1092R high performance processor
RAID mode switch by hardware strapping or GUI controller
RAID mode: RAID 0(fast) / RAID 1(safe) / JBOD(volume)
3-button Hardware switch to setup RAID mode
Green LED indicate SATA 3 host active
Red LED indicate mSATA SSD error
Support SATA Reversion 3.2
PCI Express Mini Card Electromechanical Spec. 1.2
PCI-E Card Electromechanical Specification Revision 1.1
Support SFF-8201 for Form Factor of 2.5" Disk Drives
PWM synchronous buck converter Power IC
- 3A maximum output current
- Short circuit protection
- In-rush current suppression
- Thermal shutdown protection
- ESD HBM (Human Body Mode)/2KV
