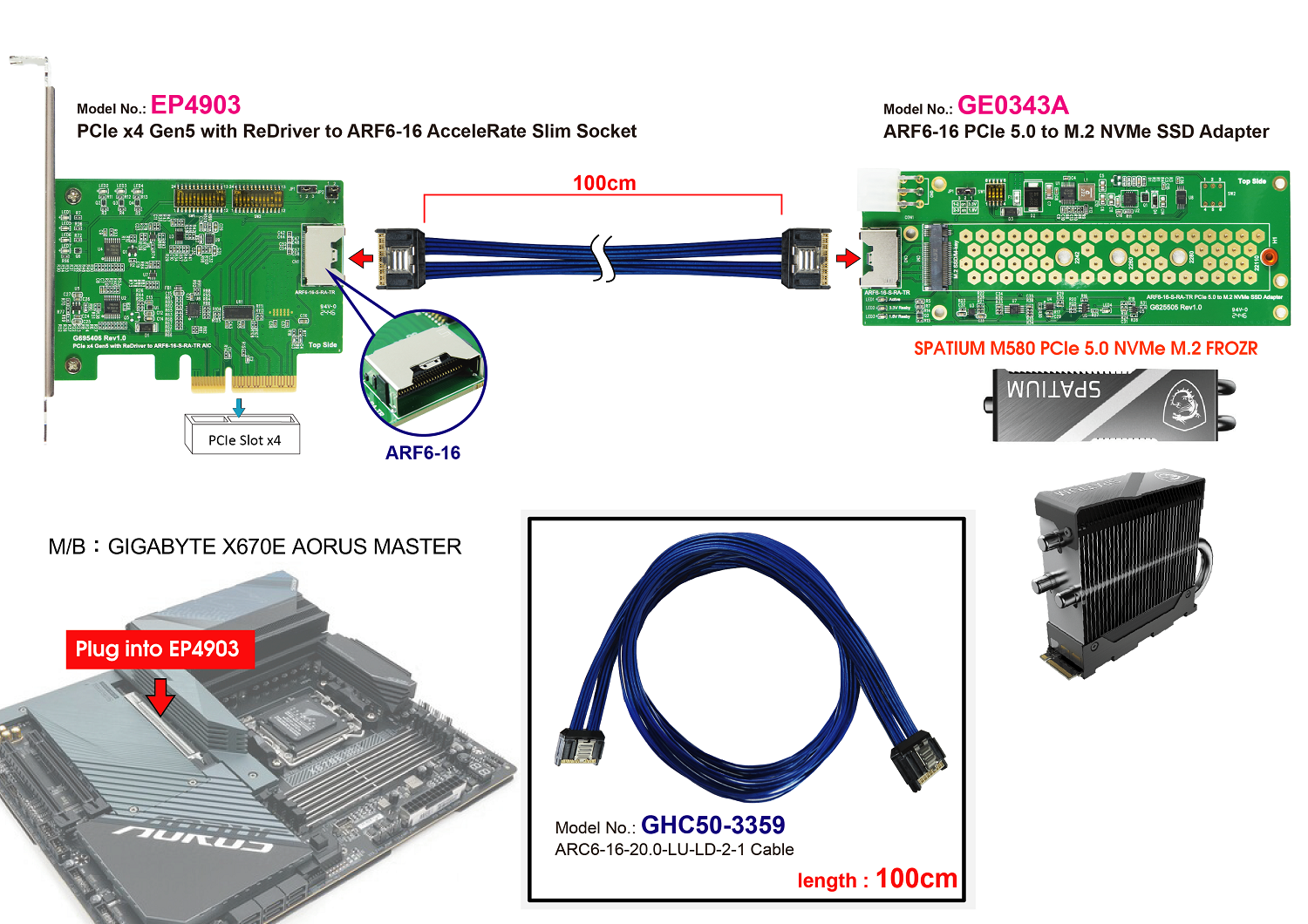

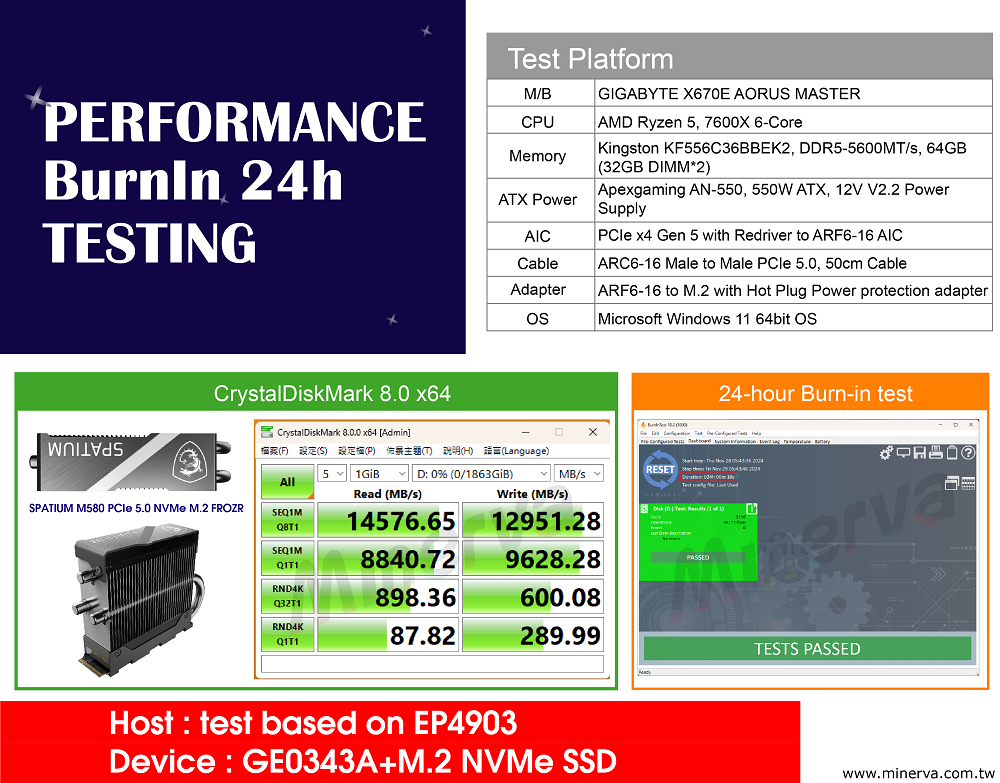

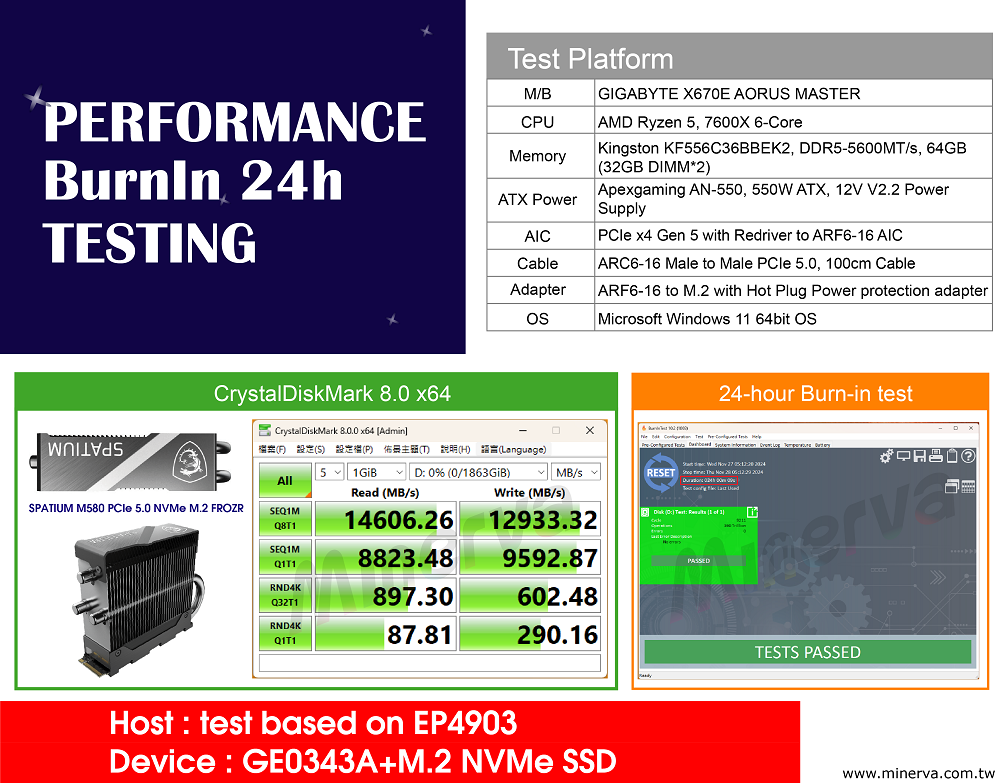

Test Report for GHC50-3359
2D drawing

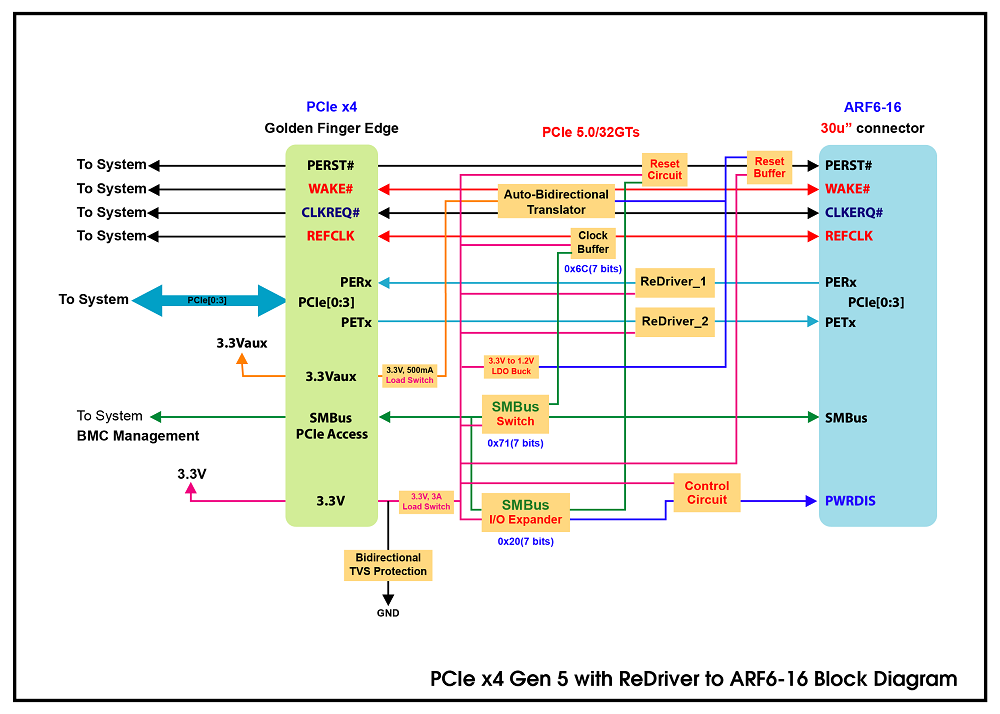

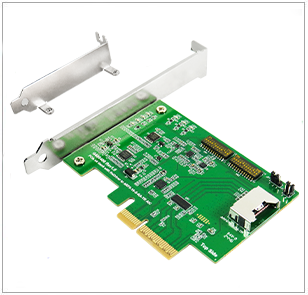

- Supports Server BMC management through SMBus

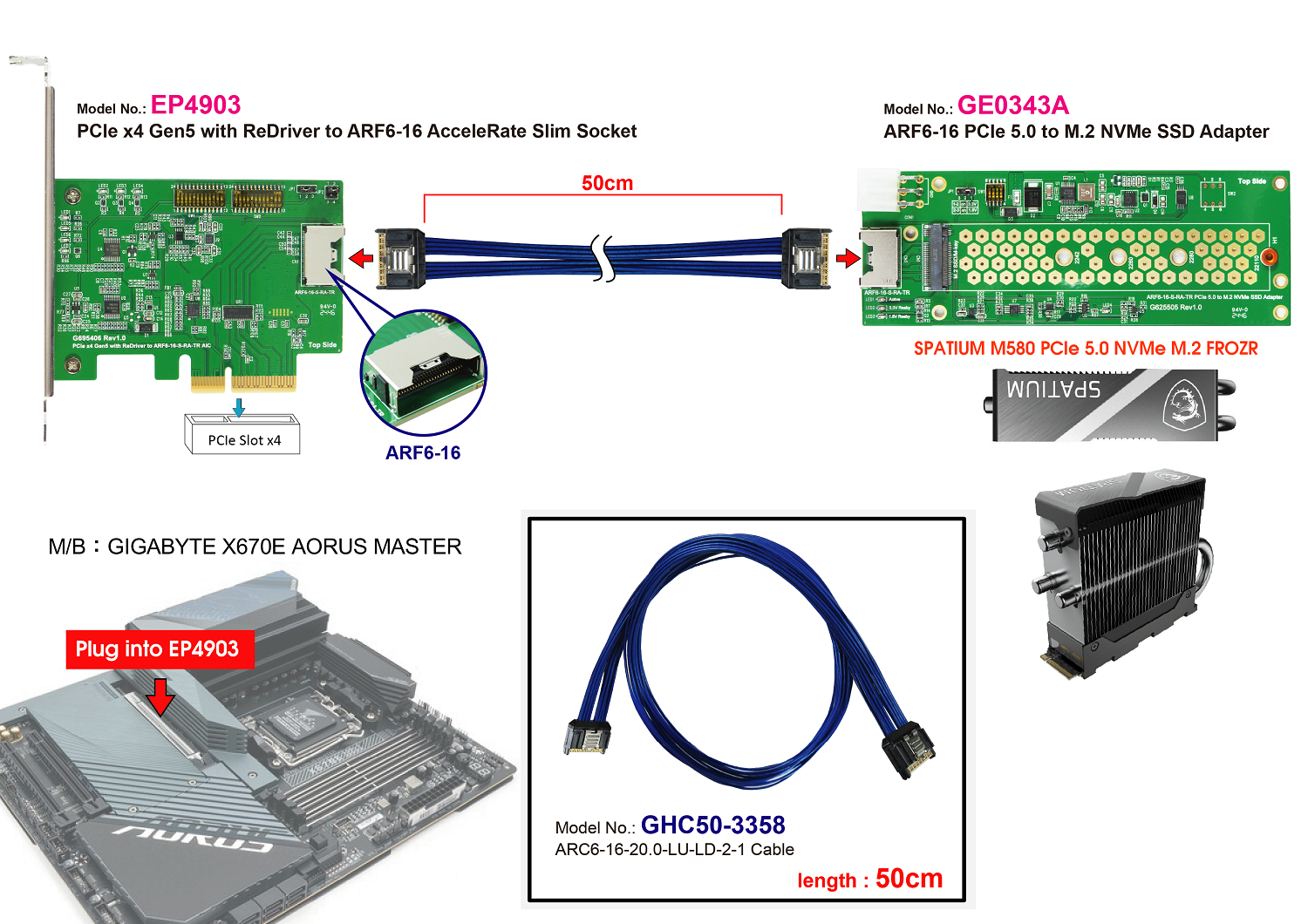

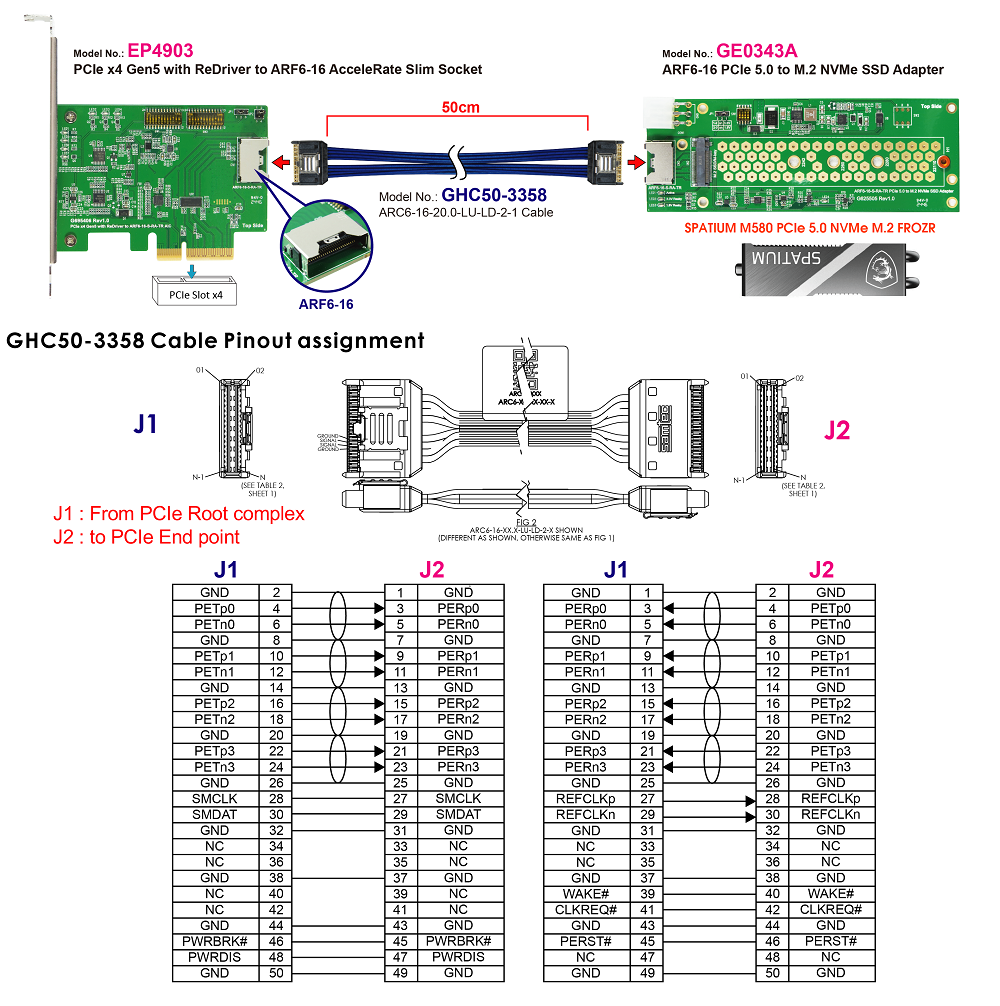

- ARF6-16 to PCI Express x4 Gen 5 convert

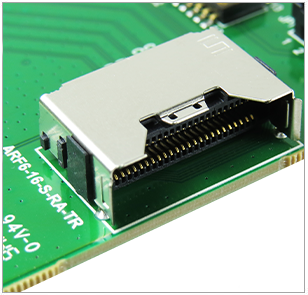

- Built- in ARF6-16, 30u”connector

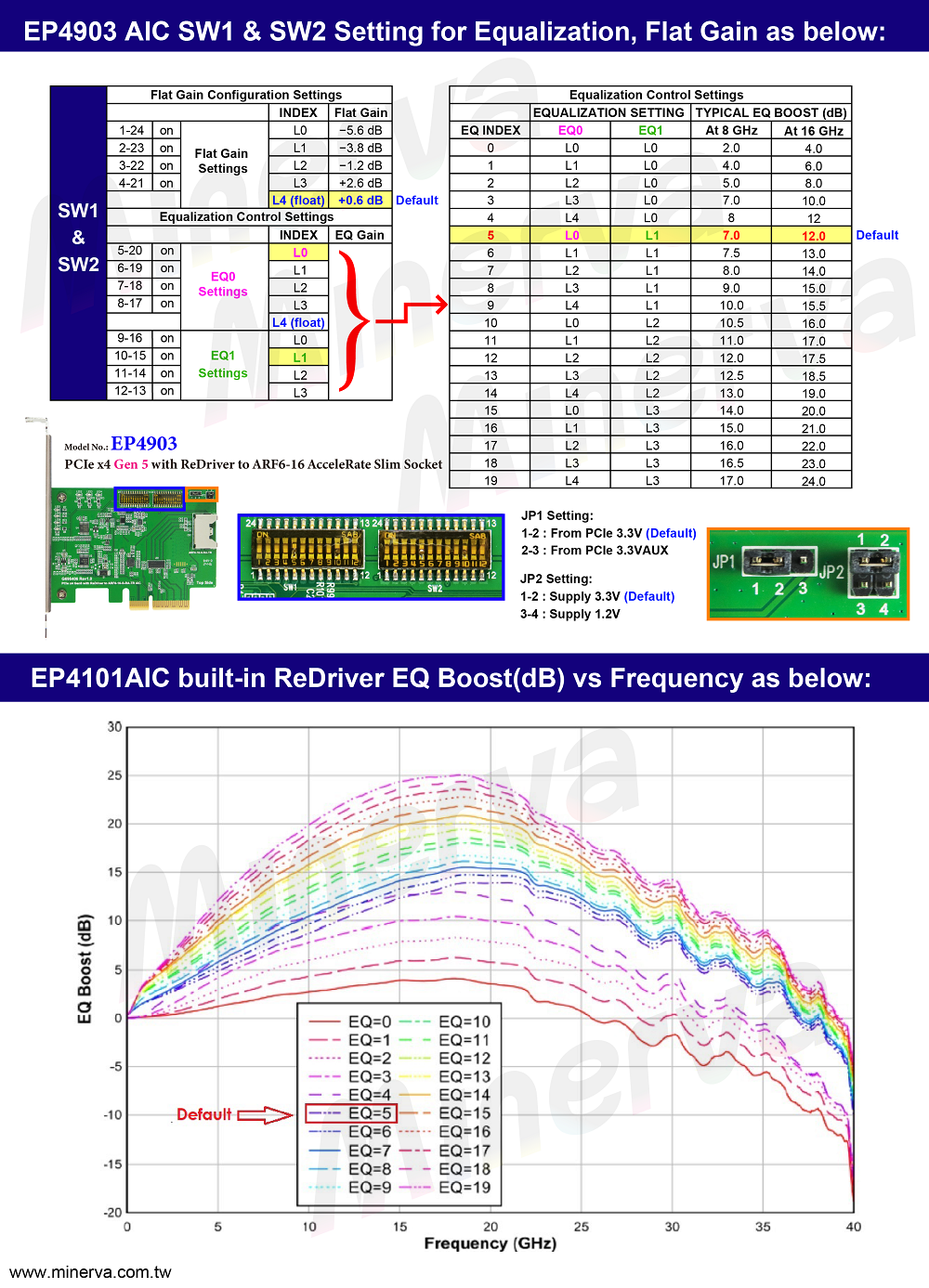

- Built-in ReDriver to extend PCIe 5.0, 32GT/s 4 lanes differential pair signals data link width, and may provides equalization up to 24 dB at 16 GHz
- Built- in PCIe 100MHz Clock buffer to drive longer PCB trace lengths and longer cable, Address: 0x6C(7 bits)
- Built- in SMBus Switch, Address: 0x71(7 bits)
- Built- in SMBus I/O Expander, Address: 0x20(7 bits) for Built- in ARF6-16 PWRDIS control
- Supports PCIe PERST# for OOB(out of band) management to remote ARF6-16 Reset

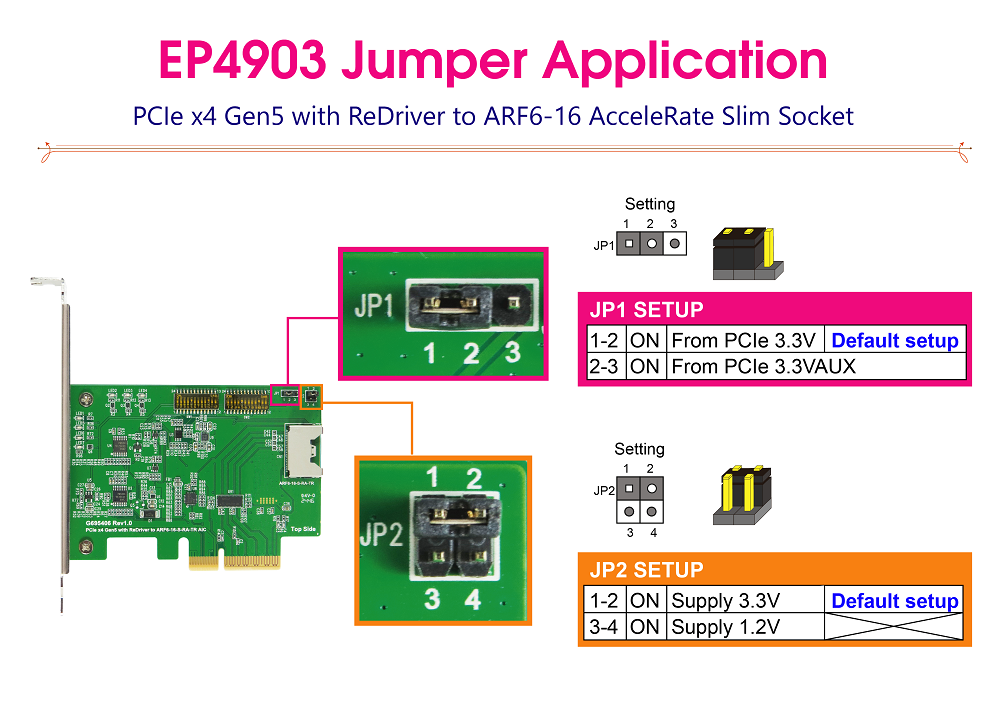

- PCIe PERST# signals provides Voltage level switching for 3.3V and 1.2V
- Built- in WAKE# bidirectional voltage-level translator for Open-Drain output to be used over longer PCB trace lengths and longer cable
- Built- in CLKREQ# bidirectional voltage-level translator for Open-Drain output to be used over longer PCB trace lengths and longer cable
- PCIe WAKE#, CLKREQ# signals provide Voltage level switching for 3.3V and 1.2V
- Input 3.3V with bidirectional TVS protection
- Input 3.3V provides 3A current Load switch and reverse current protection
- Input 3.3VAUX provides 500mA current Load switch with Short-Circuit Protection

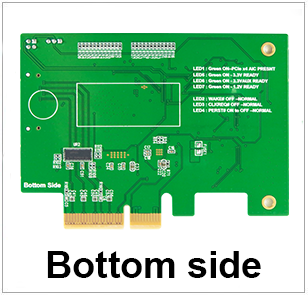

- LED1 Green LED on indicates AIC ready
- LED2 RED LED on to off indicates PCIe WAKE# signals
- LED3 RED LED on to off indicates PCIe CLKREQ# signals
- LED4 RED LED on to off indicates PCIe PERST# signals
- LED5 Green LED on indicates 3.3V Power normal
- LED6 Green LED on indicates 3.3VAUX Power normal
- LED7 Green LED on indicates 1.2V Power normal
