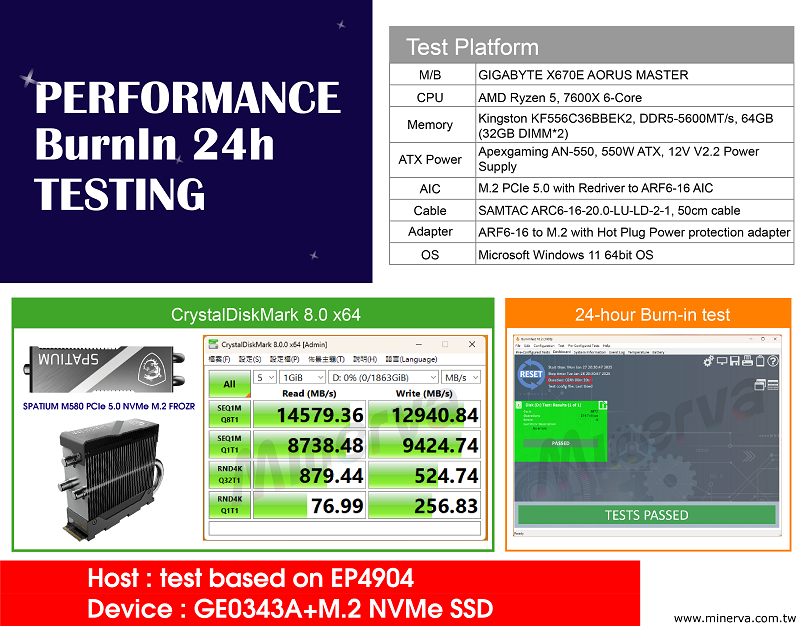

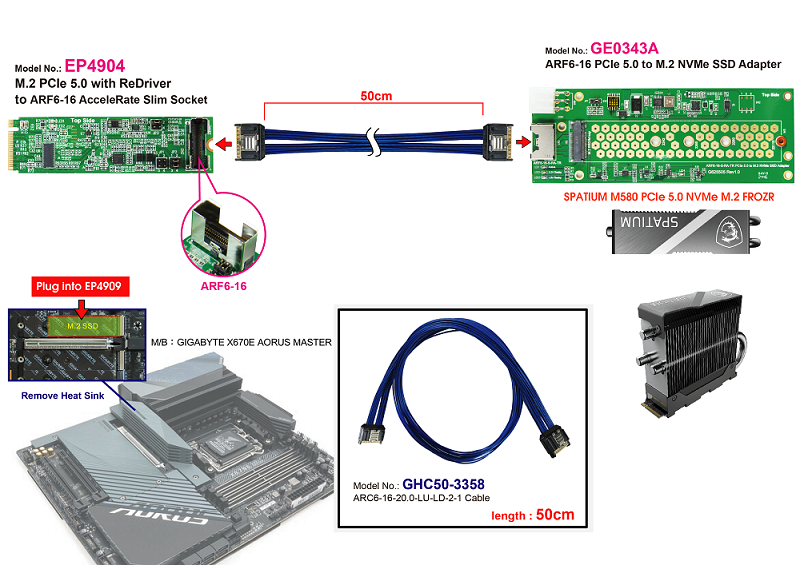

Test Report for GHC50-3358+GE0343A

PDF

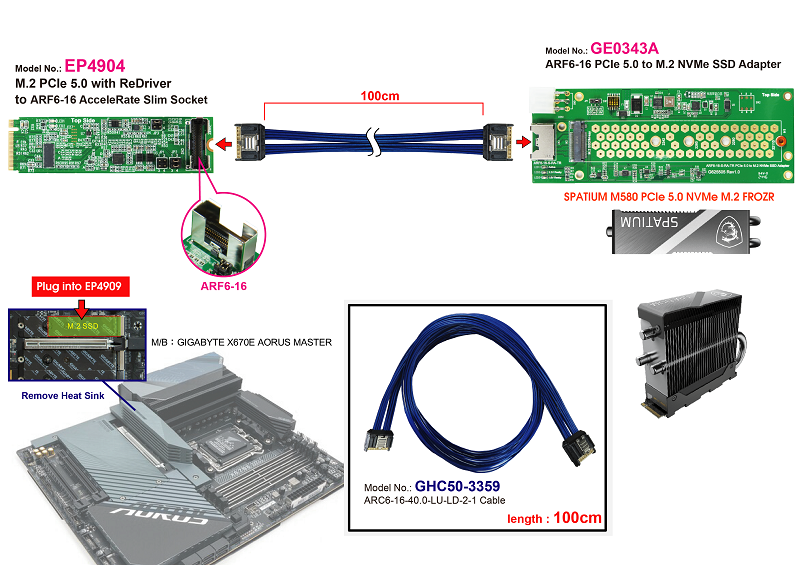

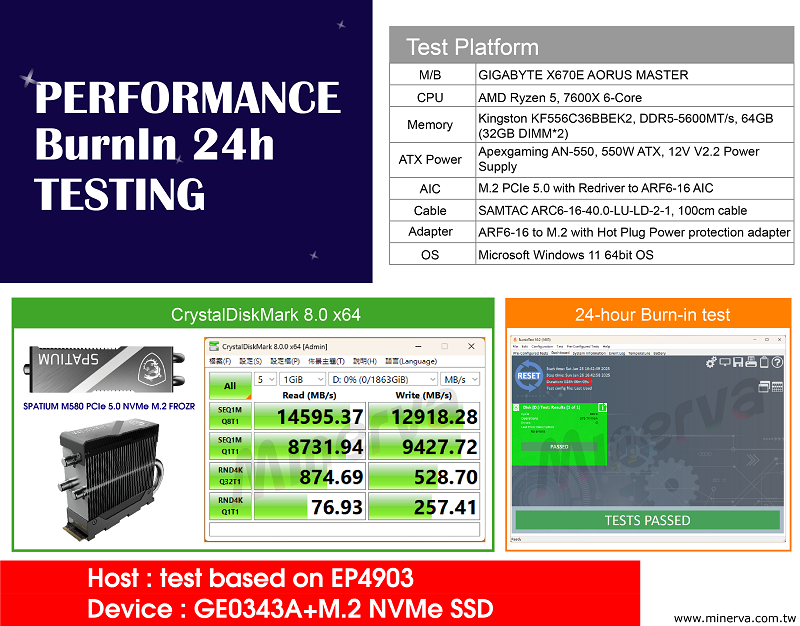

Test Report for GHC50-3359+GE0343A

PDF

2D drawing









specifications

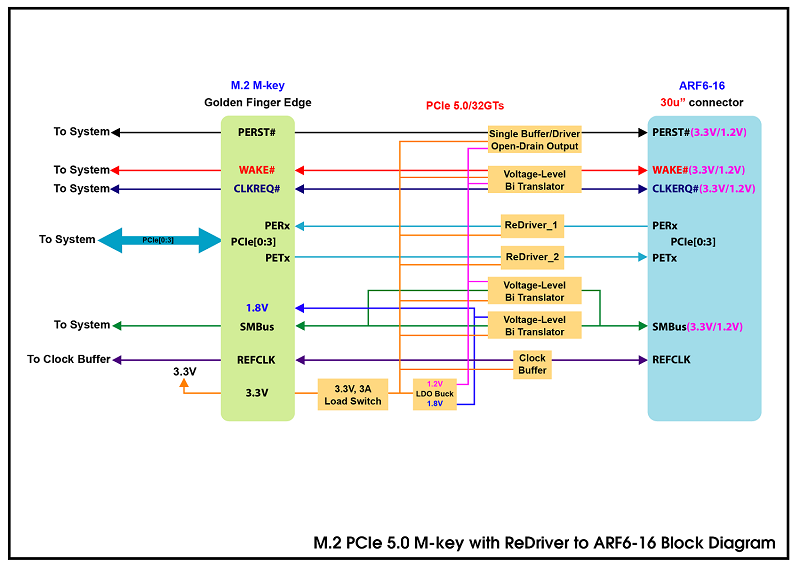

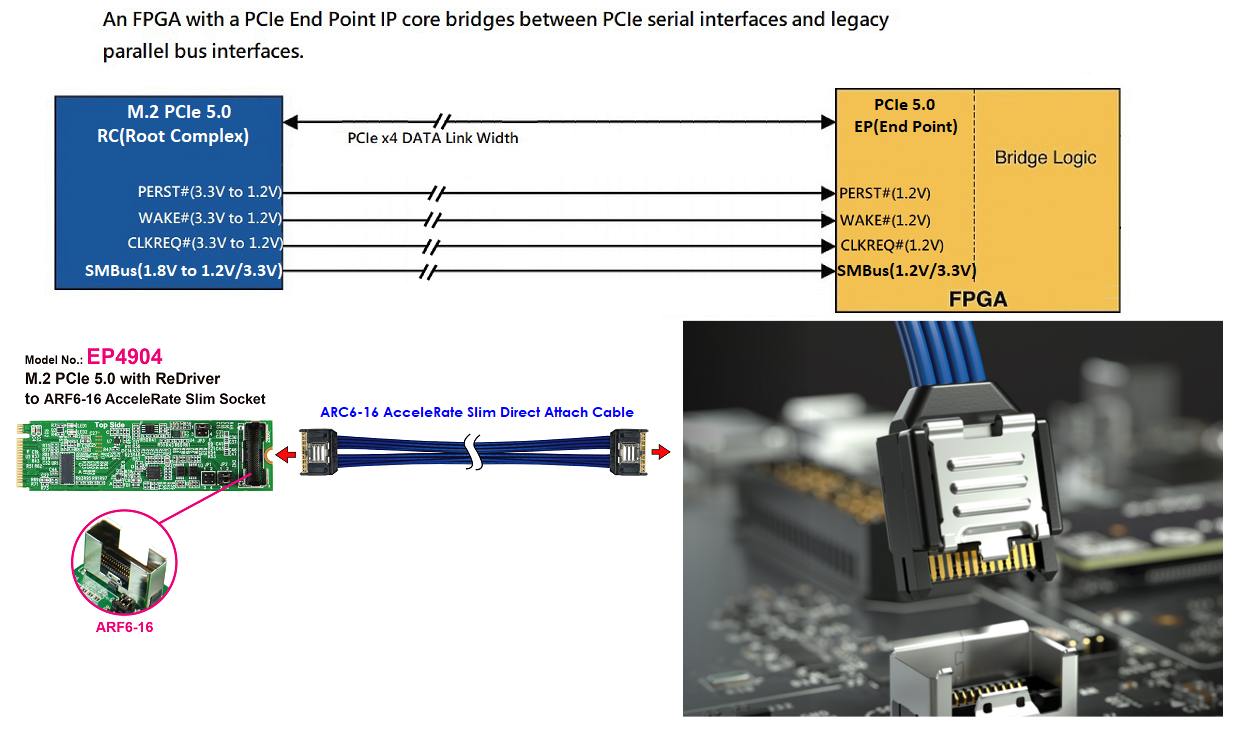

  • Built- in 3.3V, 3A Load Switch with Reverse Current Protection and Controlled Turn-On
  • ARF6-16 to M.2 PCIe 5.0 convert
  • Built- in ARF6-16 connector with 30u”(0.76um) min Au mating area plating

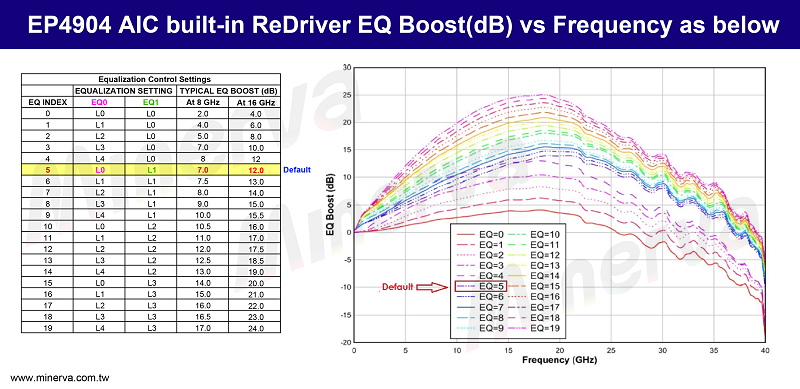

  • Built- in ReDriver to extend PCIe 5.0, 32GT/s differential pair signals & provides equalization up to 24 dB at 16 GHz
  • Built- in PCIe 100MHz Clock buffer to drive longer trace lengths and longer cable

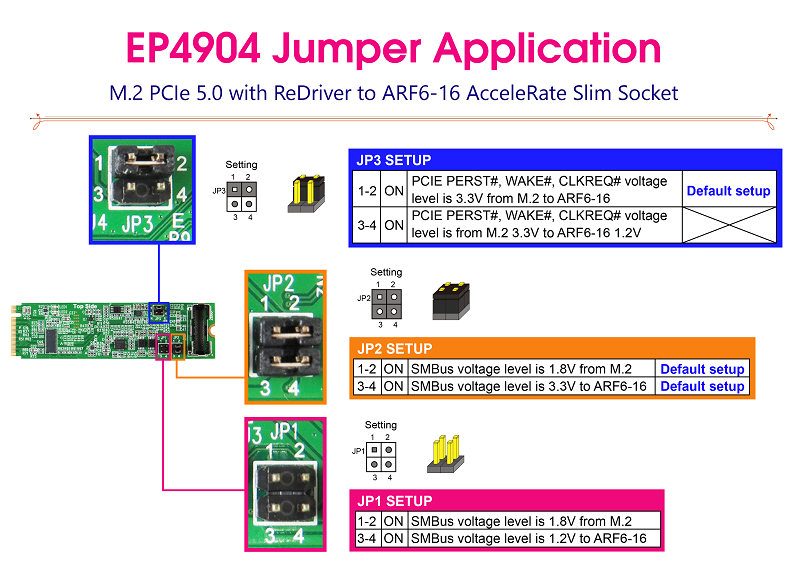

  • Built- in SMBus repeater and Voltage level shift with Hot swappable level translating
  • Built- in PERST# Voltage-Level Translator
  • The WAKE# Auto-Bidirectional Multi-Voltage Level Translator
  • The CLKREQ# Auto-Bidirectional Multi-Voltage Level Translator
  • LED1 Red from ON to OFF indicates PERST# signals normal
  • LED2 Green ON indicates 3.3V ready



specifications



CB963Fx9



CB963Fx9



CB963Fx9



CB963Fx9



support storage device
