CB963Fx9

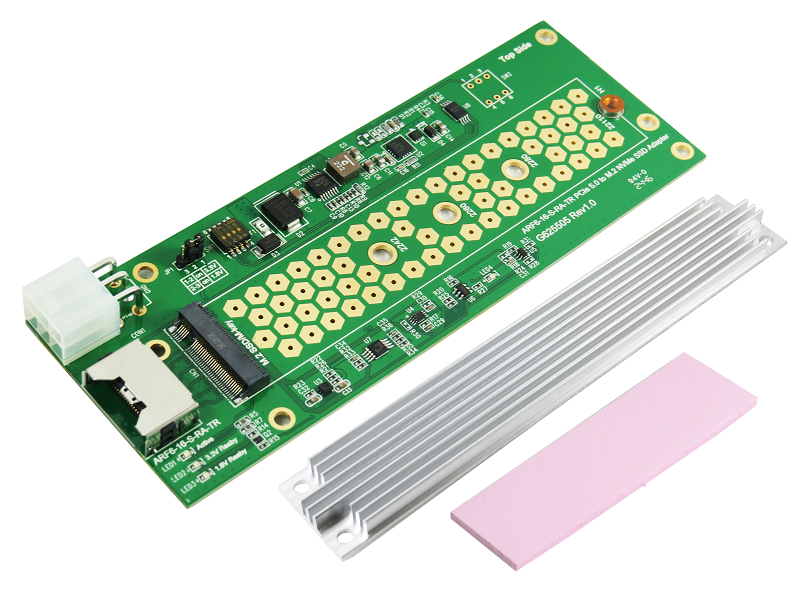

M.2 NVMe to ARF6-16 convert
Built-in ARF6-16, 30u”connector

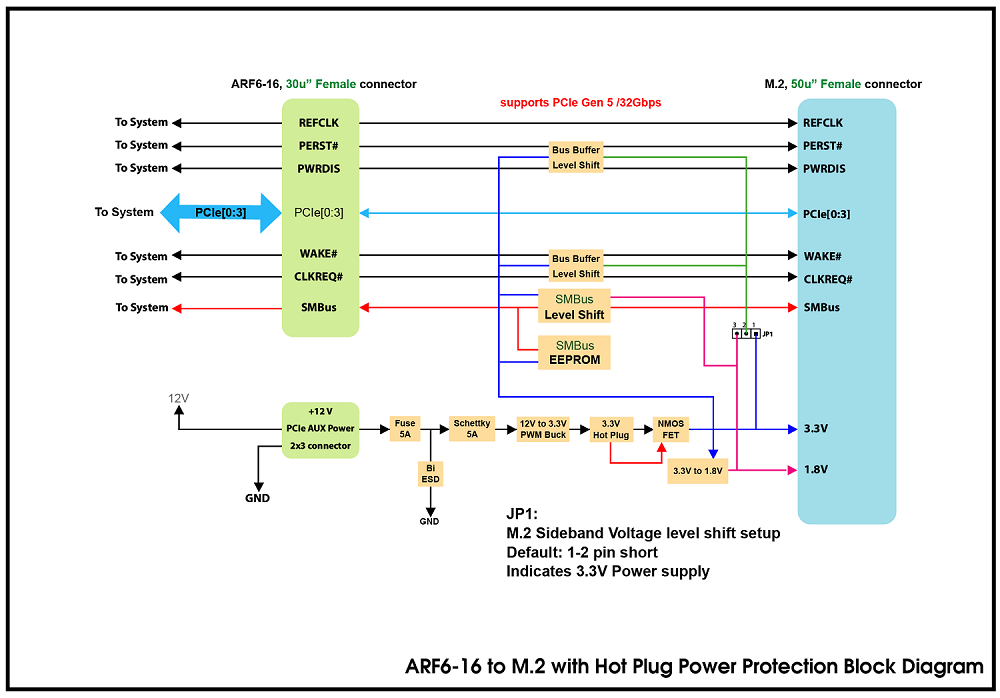

PCIe 2x3 AUX 12V Power input rail built-in 5A FUSE
12V Input power rail with 400W Bidirectional TVS
12V Input power rail built-in 5A Schottky barrier rectifer
PWM 12V to 3.3V synchronous buck converter Power for M.2 NVMe SSD
◆ 5.5A maximum output current
◆ Output Discharge Control
◆ The output overcurrent protection(OCP)
◆ Uundervoltage lock out protection(UVLO) monitor
◆ Over/Under Voltage Protection
◆ Thermal shutdown protection
◆ ESD HBM (Human Body Mode)/500V
Built-in 3.3V Hotswap Power controller with programmable Inrush Slew rate, support a maximun continuous current of 6.5A for M.2 SSD protection
Built-in 3.3V output with 30-V, N channel NexFET power MOSFET, 32m ohm with Reverse current protection
Supports M.2 CLKREQ#, WAKE# Voltage level shift between 3.3V or 1.8V
Supports M.2 /1.8V to ARF6-16/3.3V SMBus Level Shift, isolated and repeater

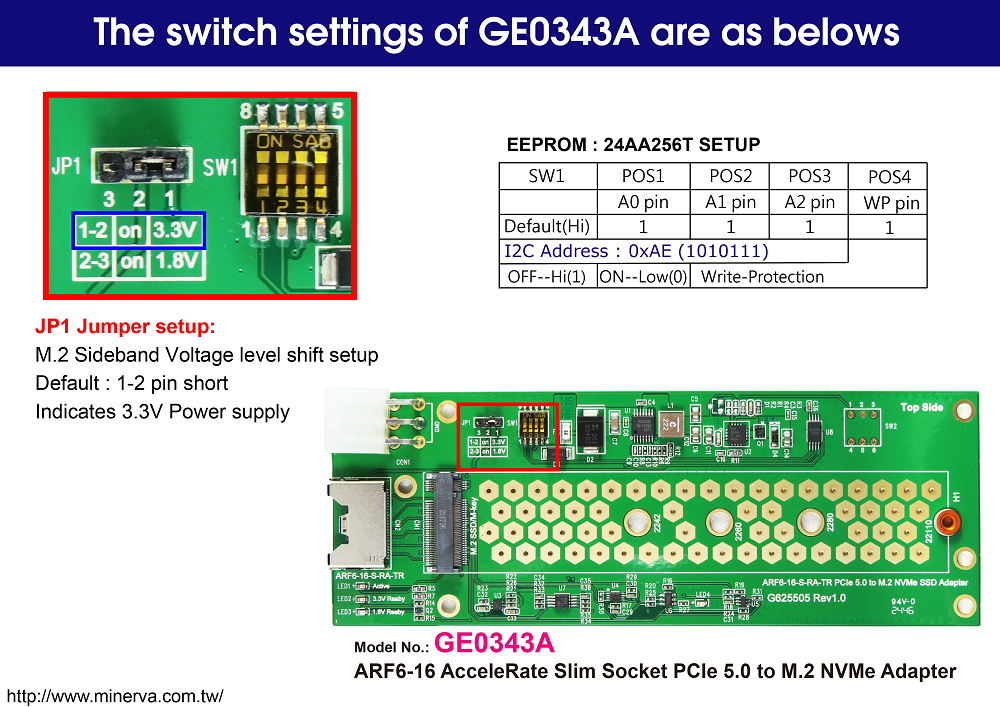

Built-in SMBUS EEPROM 64KB
LED1 RED LED Blinking indicates M.2 active status
LED2 Green LED on indicates 3.3V power ready
LED3 Green LED on indicates 1.8V power ready
LED4 Red LED indicates on to off for PCIe PERST# signals implementation
