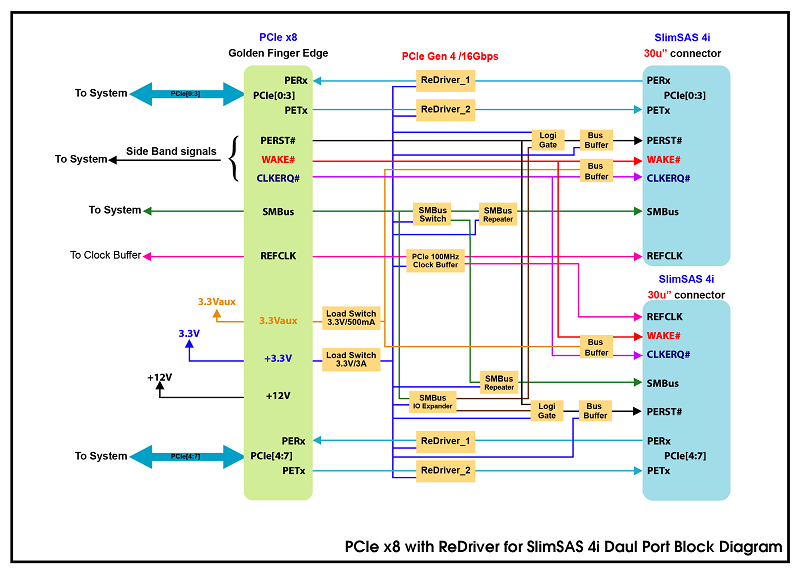

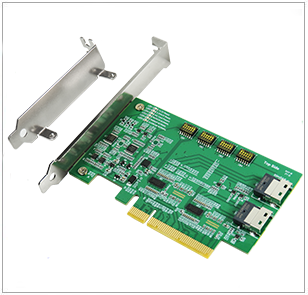

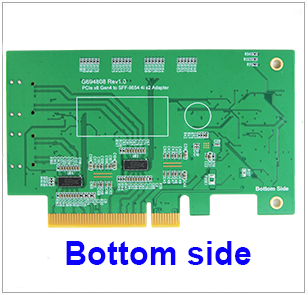

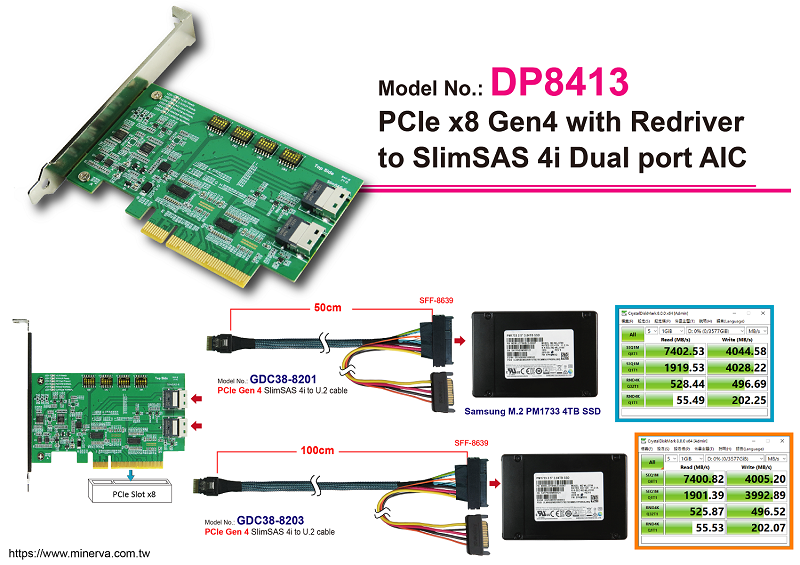

- SlimSAS 4i (SFF-8654) dual port to PCIe x8 Gen 4 convert

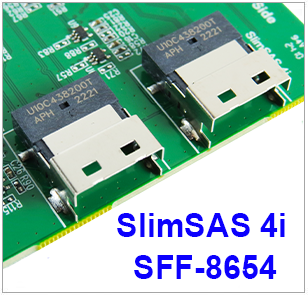

- Built-in SlimSAS 4i (SFF-8654) connector dual port

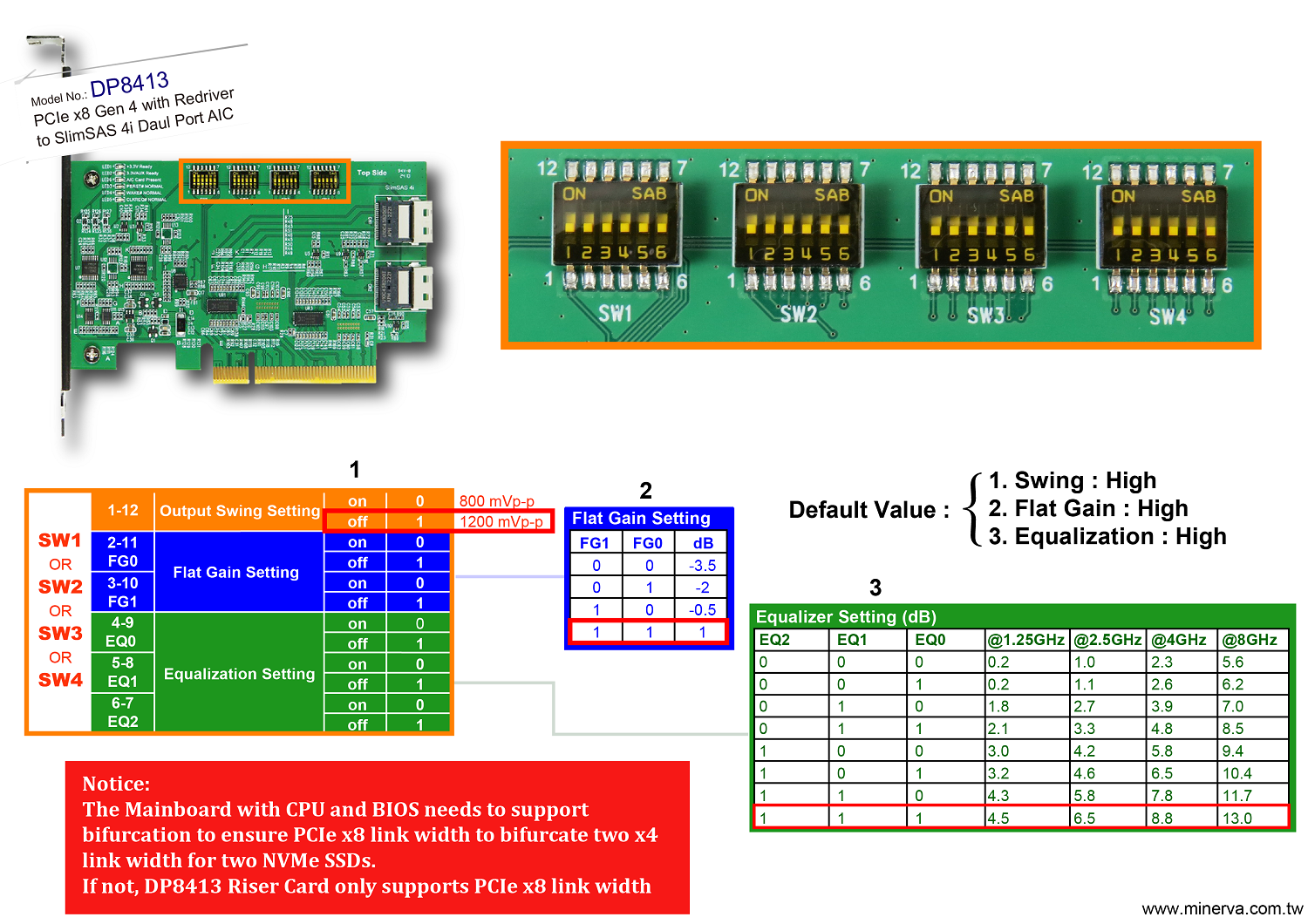

- Built-in ReDriver to extend PCIe 4.0 8 Lanes signals reach.
- Built-in PCIe 100MHz Clock buffer, default Zout=100 ohm to drive longer trace length and longer cable length.
- Built-in PCIe SMBus Switch(Address 0xE2) 4-channel with Reset Function for SlimSAS 4i (SFF-8654) SMBus and PCIe 100MHz Clock buffer SMBus control
- Built-in PERST# Bus Buffer Gate to be used over longer trace lengths and longer cable length.
- Built-in WAKE# Bus Buffer Gate to be used over longer trace lengths and longer cable length.
- Built-in CLKREQ# Bus Buffer Gate to be used over longer trace lengths and longer over cable length.
- LED1 Green ON indicates 3.3V ready
- LED2 Green ON indicates 3.3VAUX ready
- LED6 Green ON indicates AIC ready
- LED3 Green OFF indicates PERST# Normal (Function intentionally inverted)
- LED4 Green OFF indicates WAKE# Normal (Function intentionally inverted)
- LED5 Green OFF indicates CLKREQ# Normal (Function intentionally inverted)
