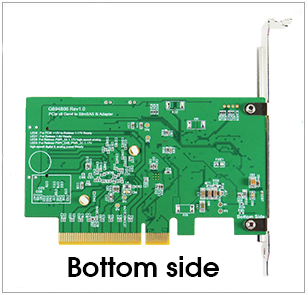

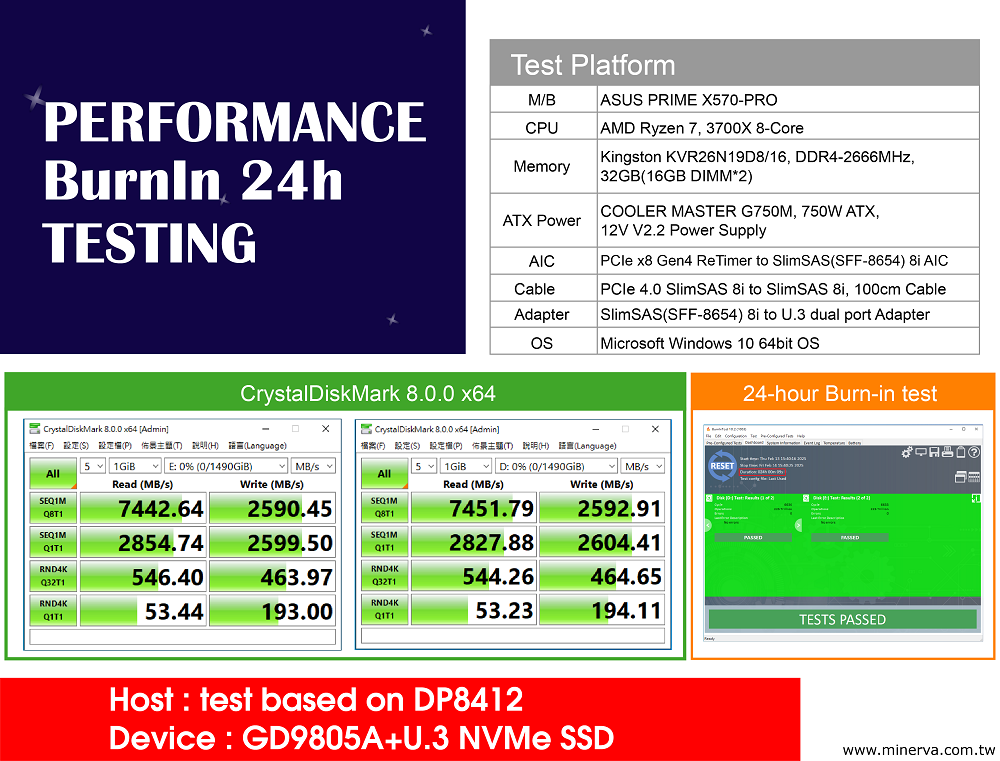

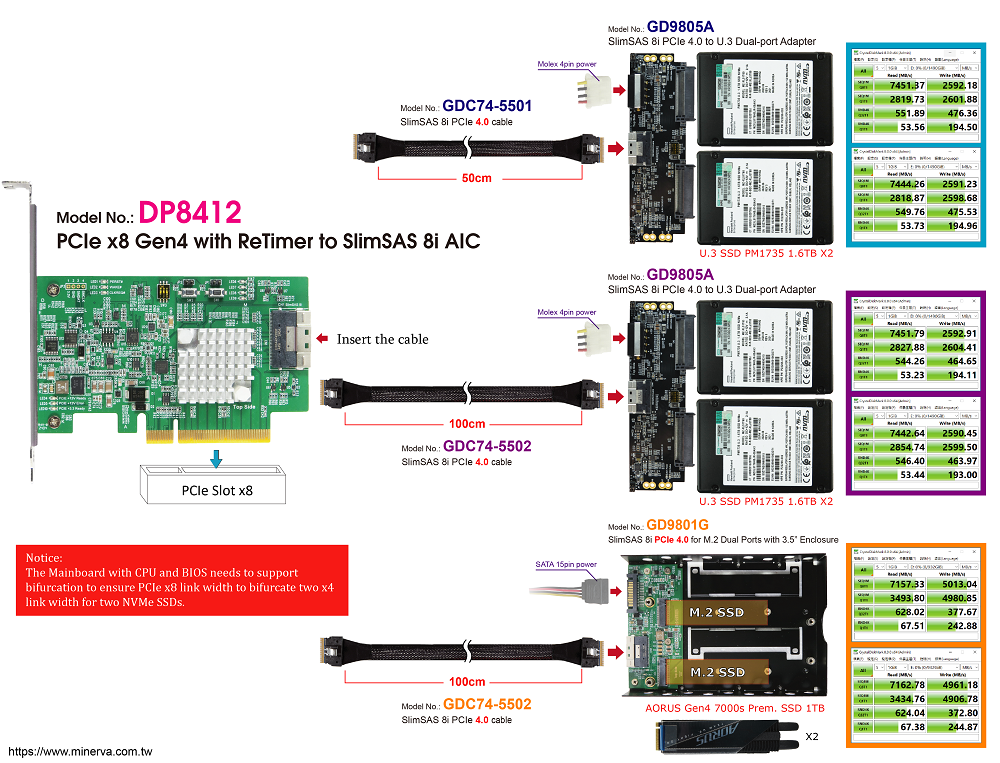

Test Report for GDC74-5501+GD9805A+U.3 SSD
Test Report for GDC74-5502+GD9805A+U.3 SSD
Test Report for GDC74-5502+GD9801G+M.2 SSD
2D drawing

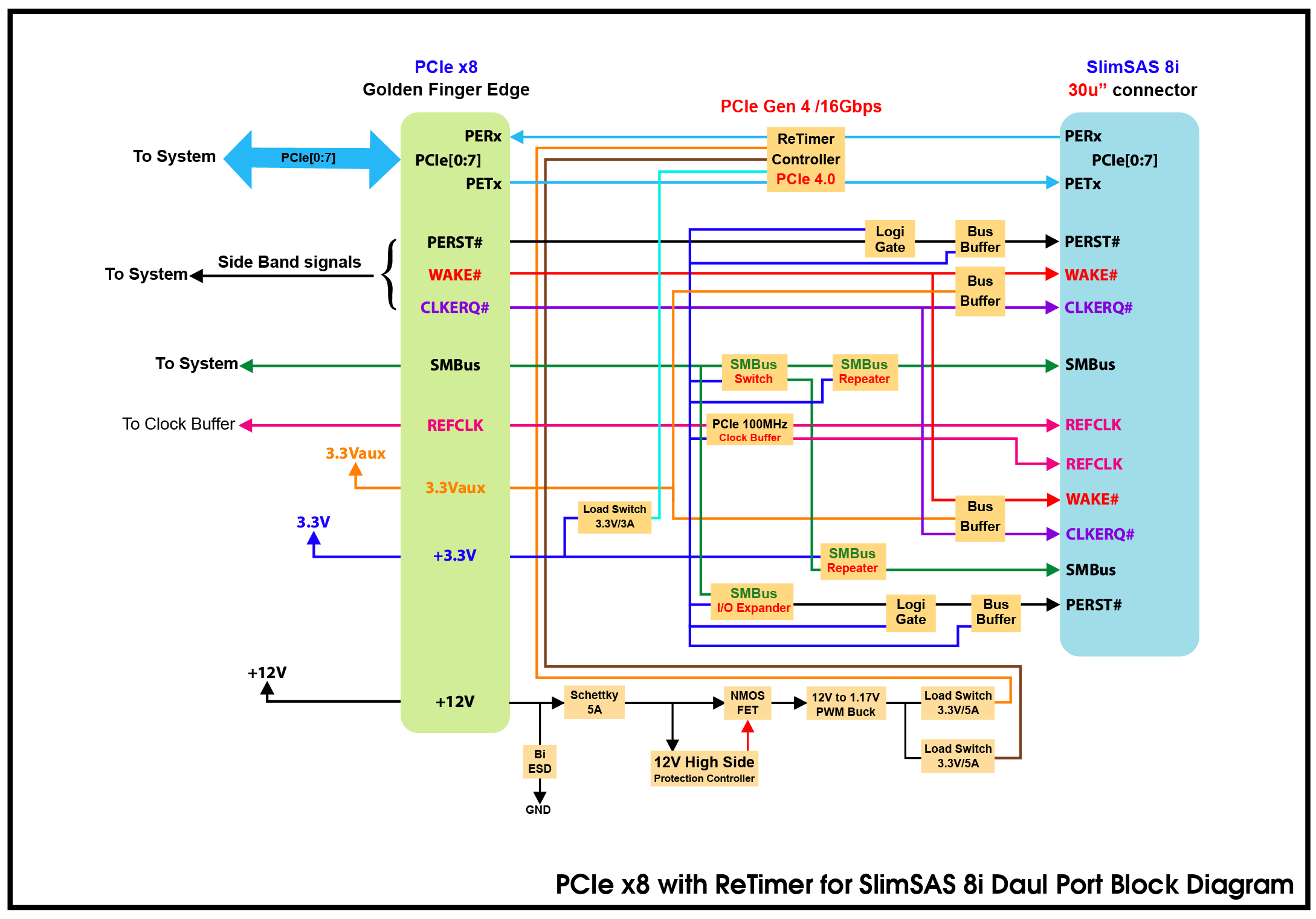

- PCIe CEM 12V input with fuse/ 5A to protect Retimer controller to be destroyed by over current
- PCIe CEM 12V input with schottky to protect Retimer controller to be destroyed by reverse voltage
- PCIe CEM 12V with High Side controller and to enable N-MOS Power
- PCIe CEM 12V to 1.17V/25A SWIFT Synchronous Step-Down Converter
- 1.17V with load switch protection for Retimer PWR_2A Power Rail
- 1.17V with load switch protection for Retimer PWR_2B & PWR_2C Power Rail
- SlimSAS 8i (SFF-8654) to PCI Express 4.0 convert

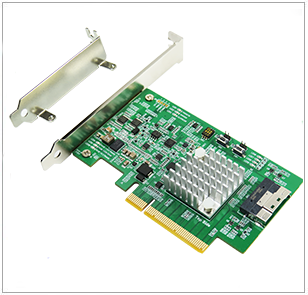

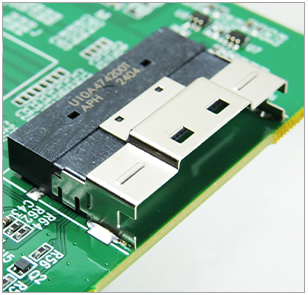

- Built-in SFF-8654 8i connector, pin-out defined by SFF-9402 Rev1.1
- Built-in ReTimer to extend PCIe 4.0, 16GT/s 8 lanes differential pair signals data link width
- Supports 2x4 bifurcation
- Built-in PCIe 100MHz Clock buffer to drive longer trace length and longer cable length
- Built-in PCIe SMBus Switch for SlimSAS 8i (SFF-8654) 2-port SMBus Hot Plug
- Built-in PERST# Bus Buffer Gate to be used over longer trace lengths and over longer cable length
- Built-in WAKE# Bus Buffer Gate to be used over longer trace lengths and over longer cable length
- Built-in CLKREQ# Bus Buffer Gate to be used over longer trace lengths and longer over cable length
- LED1 Green OFF indicates PERST# Normal (Function intentionally inverted)
- LED2 Green OFF indicates WAKE# Normal (Function intentionally inverted)
- LED3 Green OFF indicates CLKREQ# Normal (Function intentionally inverted)
- LED4 Green ON indicates 12V ready
- LED5 Red ON indicates 12V Error
- LED6 Red ON indicates 1.17 ready
- LED7 Red ON indicates 1.8V ready
- LED8 Red ON indicates Retimer PWR_2A Power Rail ready
- LED9 Red ON indicates Retimer PWR_2B & PWR_2C Power Rail ready
- LED10 Green ON indicates 3.3 ready
